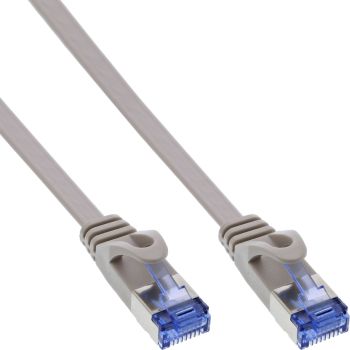

InLine® Patch cable flat, U/FTP, Cat.6A, gray, 1.5 m content_copy

Extra flat installation and reliable connection with speeds up to 10 Gb/sSpace-saving installation: The extra-flat and flexible design makes it easier to route cables in tight spaces, behind furniture or along walls and baseboards.
Powerful connection: Cat.6A supports data transfer rates up to 10 Gb/s and requirements up to 500 MHz. This allows you to use a fast wired network connection for compatible devices.
Reduced interference: The U/FTP shielding covers each of the four twisted pairs of wires with metal foil. This ensures protected signal transmission even in demanding network cabling environments.
Securely plugged in: Two straight, molded RJ45 connectors with locking tab protection support a stable connection and protect the locking tabs during installation, use and repeated plugging and unplugging.
Clearly assigned: The blue-colored connector facilitates visual differentiation during wiring. The 1:1 pinout according to EIA/TIA-568B supports a standardized connection layout.
The flat Cat.6A patch cable combines a high-performance network connection with exceptionally space-saving cable management. Its flat and flexible design allows for easy routing behind furniture, along walls, or in tight spaces.
Two straight RJ45 connectors allow for direct connection of compatible network ports. The molded connectors feature a locking tab guard and ensure secure handling during installation. The 1:1 pinout is color-coded according to EIA/TIA-568B.
In the U/FTP version, four twisted pairs of wires are each shielded with metal foil. This ensures protected signal transmission. Cat.6A meets requirements up to 500 MHz and enables data transfer rates up to 10 Gb/s.
The PVC sheath and solid copper strands complement the technical design. This makes the network cable suitable for direct wired connections where flexible and space-saving installation is required.
Construction: Flat cable
Pin assignment: 1:1
Data transfer rate: up to 10 Gb/s
Conductor material: CU (copper)
Sheath: PVC
Patch cable category: Cat.6A
Frequency: up to 500 MHz
Shielding: U/FTP
Side A: RJ45 straight connector
Side B: RJ45 straight connector
Signal: Network
Four pairs of wires, twisted together
Color coding according to EIA/TIA-568B
Potted connectors
Latch guard

Certificates
Certification	RoHS
Features
Product colour	Grey
Cable length	1.5 m
Cable standard	Cat6a
Cable shielding	U/FTP (STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Jacket material	Polyvinyl chloride (PVC)
Cable shape	Flat
Conductor material	Copper
AWG wire size	32
Frequency	500 MHz
Connector shielding
Other features
Dimensions (WxDxH)	13 x 1500 x 15 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	90 mm
Package depth	135 mm
Package height	15 mm
Package weight	37 g
Package volume	200 cm³
Package type	Polybag
Technical data
Side A	RJ45 plug straight
Max. supported PoE standard	802.3af
Width packaging	0.090m
Article width	1.30cm
Data transmission rate	10Gb/s
Conductor material	CU (copper)
Article length	150.00cm
Diameter	AWG 32
Length	1.50m
Patch cable category	Cat.6A
Packing	Retail
Outer diameter	1.75x6.6mm
Wire pairs used for power transmission	The specific method used is determined by the PSE (Power Sourcing Equipment)
Sheath	PVC
Height packaging	0.015m
Side B	RJ45 plug straight
Max. supported power	15.4W
Shielding	U/FTP
Colour	Grey
Packaging volume	0.0002m³
Net weight	0.034kg
Signal	Network
Assignment	1:1
Article height	1.50cm
Design	Flat cable
Type	Cat.6A
Length packaging	0.135m
Max. supported data transfer rate	10Gb/s
Weight	0.037kg
PoE/PoE+/PoE++
UL
Weight & dimensions
Width	13 mm
Depth	1500 mm
Height	15 mm
Weight	34 g

---
