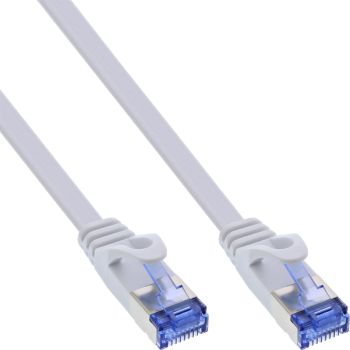

InLine® Patch cable flat, U/FTP, Cat.6A, white, 7 m content_copy

Extra flat installation and reliable connection with speeds up to 10 Gb/sSpace-saving installation: The extra-flat and flexible design makes it easier to route cables in tight spaces, behind furniture or along walls and baseboards.
Powerful connection: Cat.6A supports data transfer rates up to 10 Gb/s and requirements up to 500 MHz. This allows you to use a fast wired network connection for compatible devices.
Reduced interference: The U/FTP shielding covers each of the four twisted pairs of wires with metal foil. This ensures protected signal transmission even in demanding network cabling environments.
Securely plugged in: Two straight, molded RJ45 connectors with locking tab protection support a stable connection and protect the locking tabs during installation, use and repeated plugging and unplugging.
Clearly assigned: The blue-colored connector facilitates visual differentiation during wiring. The 1:1 pinout according to EIA/TIA-568B supports a standardized connection layout.
The flat Cat.6A patch cable combines a high-performance network connection with exceptionally space-saving cable management. Its flat and flexible design allows for easy routing behind furniture, along walls, or in tight spaces.
Two straight RJ45 connectors allow for direct connection of compatible network ports. The molded connectors feature a locking tab guard and ensure secure handling during installation. The 1:1 pinout is color-coded according to EIA/TIA-568B.
In the U/FTP version, four twisted pairs of wires are each shielded with metal foil. This ensures protected signal transmission. Cat.6A meets requirements up to 500 MHz and enables data transfer rates up to 10 Gb/s.
The PVC sheath and solid copper strands complement the technical design. This makes the network cable suitable for direct wired connections where flexible and space-saving installation is required.
Construction: Flat cable
Pin assignment: 1:1
Data transfer rate: up to 10 Gb/s
Conductor material: CU (copper)
Sheath: PVC
Patch cable category: Cat.6A
Frequency: up to 500 MHz
Shielding: U/FTP
Side A: RJ45 straight connector
Side B: RJ45 straight connector
Signal: Network
Four pairs of wires, twisted together
Color coding according to EIA/TIA-568B
Potted connectors
Latch guard

Features
Product colour	White
Cable length	7 m
Cable standard	Cat6a
Cable shielding	U/FTP (STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector 1 gender	Male
Jacket material	Polyvinyl chloride (PVC)
Conductor material	Copper
AWG wire size	32
Frequency	500 MHz
Other features
Dimensions (WxDxH)	13 x 7000 x 15 mm
Packaging data
Package width	155 mm
Package depth	140 mm
Package height	15 mm
Package weight	137 g
Package volume	400 cm³
Technical data
Height packaging	0.015m
Outer diameter	1.75x6.6mm
Wire pairs used for power transmission	The specific method used is determined by the PSE (Power Sourcing Equipment)
Sheath	PVC
Colour	White
Patch cable category	Cat.6A
Signal	Network
Diameter	AWG 32
Packaging volume	0.0004m³
Side B	RJ45 plug straight
Max. supported power	15.4W
Shielding	U/FTP
Side A	RJ45 plug straight
Max. supported PoE standard	802.3af
Type	Cat.6A
Width packaging	0.155m
Article width	1.30cm
Data transmission rate	10Gb/s
Article height	1.50cm
Weight	0.137kg
Packing	Retail
Length packaging	0.140m
Max. supported data transfer rate	10Gb/s
Length	7m
Assignment	1:1
Article length	700.00cm
Design	Flat cable
Conductor material	CU (copper)
Net weight	0.124kg
PoE/PoE+/PoE++
UL
Weight & dimensions
Width	13 mm
Depth	7000 mm
Height	15 mm
Weight	124 g

---
