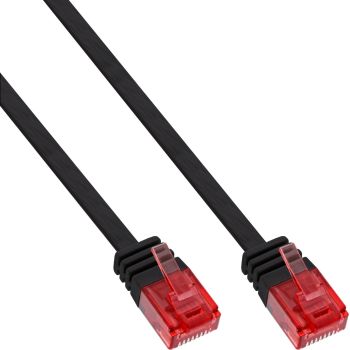

InLine® Flat Ultraslim Patch Cable U/UTP Cat.6 Gigabit ready black 15m content_copy

Flat InLine® Patch Cable for Lan data networks in Cat.6 without U/UTP shielding. Ideal for Ethernet to Fast Ethernet connections of Switches, Routers, Hubs, Cards, Printservers and all active and passive network peripherals. This 4-pair twisted (Twist) and ultra-flat cable with a profile height of only 1 mm is ideal for all applications that require discretion and/or limited space. It can be placed behind furniture, skirting boards, jambs or under a carpet. When used inside Rack Lan this flat patch cable promotes air circulation, contributing to optimal heat dissipation, and makes it easier to access cables and sockets inside the cabinet.2x RJ45 male die-cast
U/UTP Cat.6 AWG 30 Twisted Pair cable with 100% copper inner filament (cu)
Ultrathin cable height ca.1mm
U/UTP no shielding ( old nomenclature: UTP )
PVC sheathing
Cable with coloured strain relief connector cover
1:1 configuration in accordance with EIA/TIA 568B
Resealable blister-PE packaging with EAN code

Features
Product colour	Black
Cable length	15 m
Cable standard	Cat6
Cable shielding	U/UTP (UTP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector 1 gender	Male
Connector 2 gender	Male
Jacket material	Polyvinyl chloride (PVC)
Conductor material	Copper
AWG wire size	30
Other features
Dimensions (WxDxH)	12 x 15000 x 15 mm
Packaging data
Package width	175 mm
Package depth	225 mm
Package height	12 mm
Package weight	253 g
Package volume	500 cm³
Technical data
Patch cable category	Cat.6
Side B	RJ45 plug straight
Max. supported power	15.4W
Packing	Retail
Data transmission rate	1Gb/s
Max. supported data transfer rate	1Gb/s
Length	15m
Width packaging	0.175m
Article height	1.50cm
Diameter	AWG 30
Packaging volume	0.0005m³
Design	Flat cable
Conductor material	CU (copper)
Net weight	0.210kg
Weight	0.253kg
Type	Cat.6
Length packaging	0.225m
Article width	1.20cm
Sheath	PVC
Height packaging	0.012m
Outer diameter	1.4x6.0mm
Wire pairs used for power transmission	The specific method used is determined by the PSE (Power Sourcing Equipment)
Shielding	U/UTP
Side A	RJ45 plug straight
Max. supported PoE standard	802.3af
Signal	Network
Assignment	1:1
Article length	1500.00cm
Colour	Black
PoE/PoE+/PoE++
UL
Weight & dimensions
Width	12 mm
Depth	15000 mm
Height	15 mm
Weight	210 g

---
