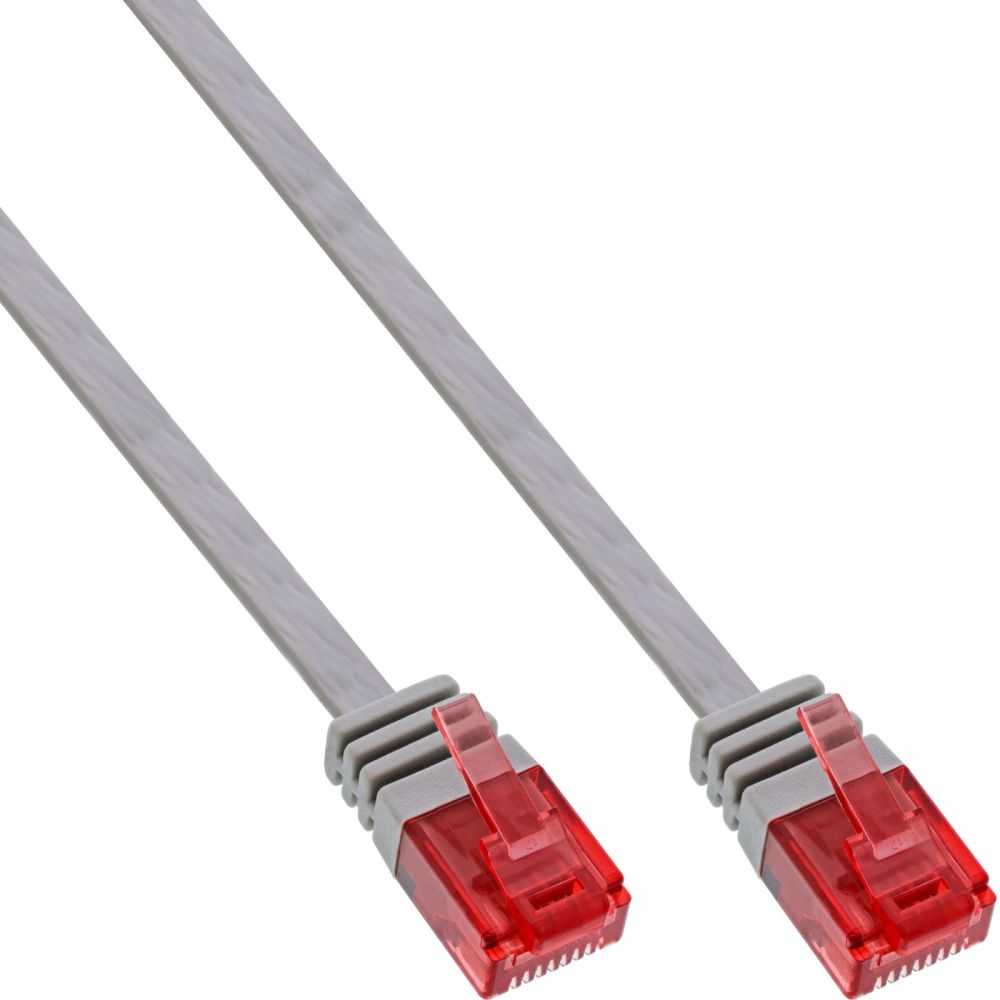

InLine® Flat Ultraslim Patch Cable U/UTP Cat.6 Gigabit ready grey 15m content_copy

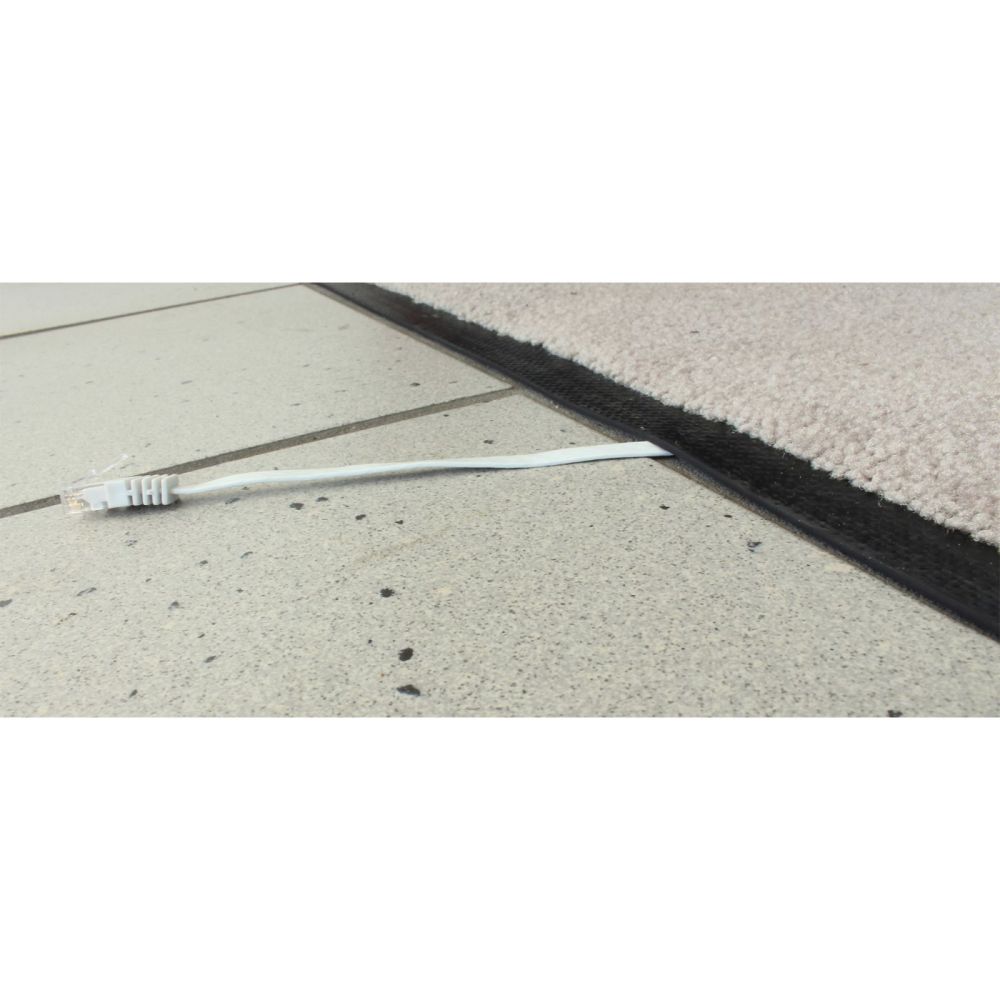

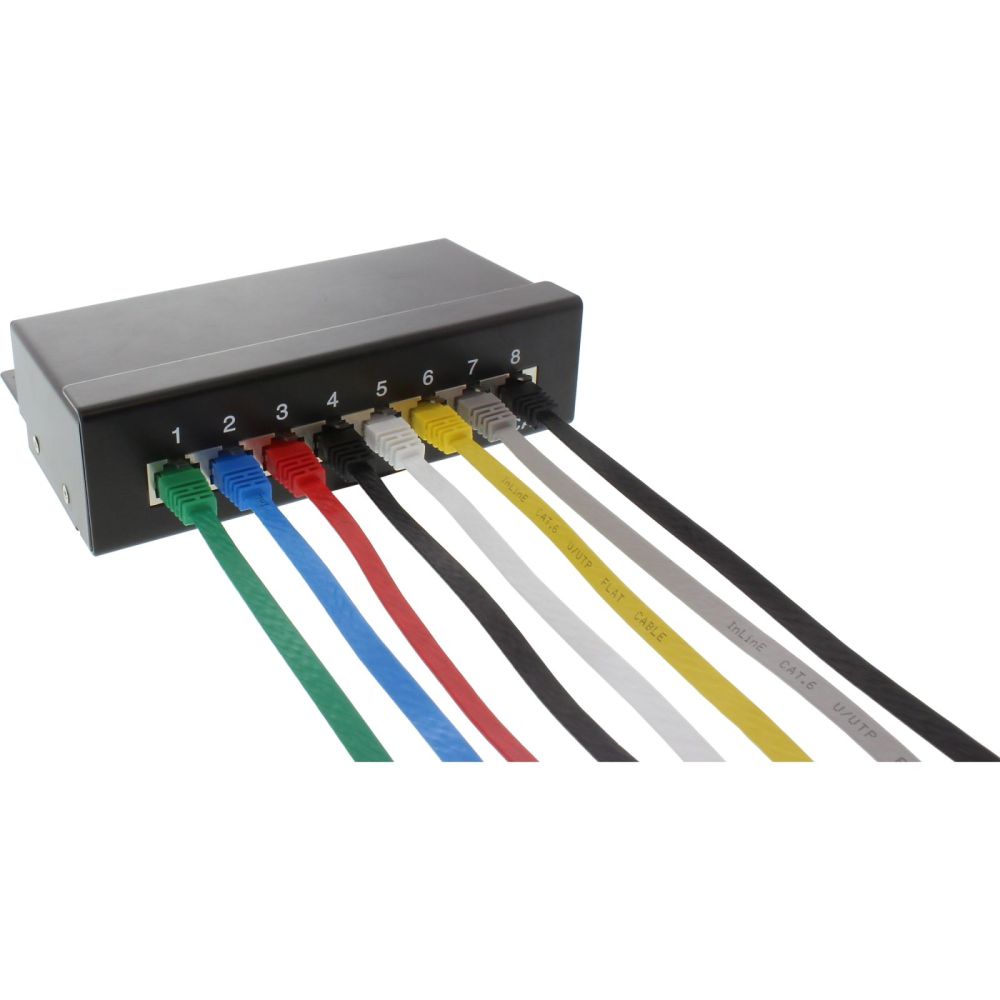

Flat InLine® Patch Cable for Lan data networks in Cat.6 without U/UTP shielding. Ideal for Ethernet to Fast Ethernet connections of Switches, Routers, Hubs, Cards, Printservers and all active and passive network peripherals. This 4-pair twisted (Twist) and ultra-flat cable with a profile height of only 1 mm is ideal for all applications that require discretion and/or limited space. It can be placed behind furniture, skirting boards, jambs or under a carpet. When used inside Rack Lan this flat patch cable promotes air circulation, contributing to optimal heat dissipation, and makes it easier to access cables and sockets inside the cabinet.2x RJ45 male die-cast
U/UTP Cat.6 AWG 30 Twisted Pair cable with 100% copper inner filament (cu)
Ultrathin cable height ca.1mm
U/UTP no shielding ( old nomenclature: UTP )
PVC sheathing
Cable with coloured strain relief connector cover
1:1 configuration in accordance with EIA/TIA 568B

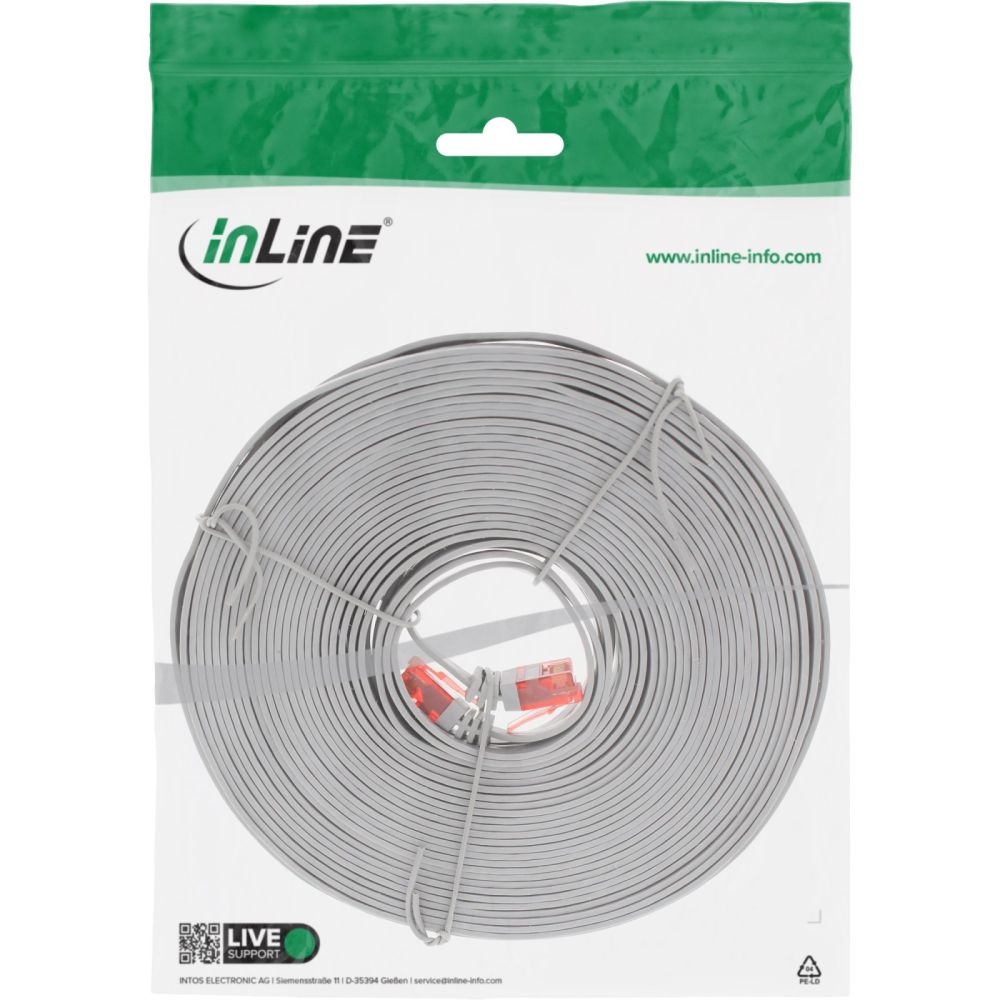

Resealable blister-PE packaging with EAN code

Features
Product colour	Grey
Cable length	15 m
Cable standard	Cat6
Cable shielding	U/UTP (UTP)
Connector 1 gender	Male
Connector 2 gender	Male
Jacket material	Polyvinyl chloride (PVC)
Conductor material	Copper
AWG wire size	30
Other features
Dimensions (WxDxH)	12 x 15000 x 15 mm
Packaging data
Package width	200 mm
Package depth	245 mm
Package height	26 mm
Package weight	239 g
Package volume	1300 cm³
Technical data
Packing	Retail
Data transmission rate	1Gb/s
Wire pairs used for power transmission	The specific method used is determined by the PSE (Power Sourcing Equipment)
Length	15m
Height packaging	0.026m
Outer diameter	1.4x6.0mm
Max. supported power	15.4W
Shielding	U/UTP
Type	Cat.6
Length packaging	0.245m
Colour	Grey
Side B	RJ45 plug straight
Max. supported PoE standard	802.3af
Article width	1.20cm
Diameter	AWG 30
Conductor material	CU (copper)
Net weight	0.217kg
Article length	1500.00cm
Design	Flat cable
Max. supported data transfer rate	1Gb/s
Sheath	PVC
Assignment	1:1
Article height	1.50cm
Weight	0.239kg
Packaging volume	0.0013m³
Side A	RJ45 plug straight
Width packaging	0.200m
Signal	Network
Patch cable category	Cat.6
PoE/PoE+/PoE++
UL
Weight & dimensions
Width	12 mm
Depth	15000 mm
Height	15 mm
Weight	217 g

---
