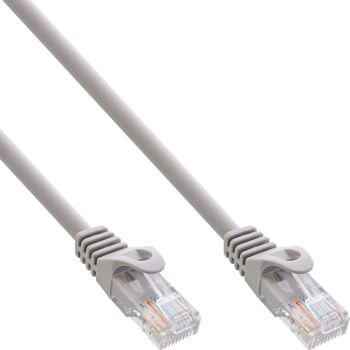

InLine® Patch Cable U/UTP Cat.5e AWG26 grey 10m content_copy

Easy network connection over 10 m with Cat.5e patch cableFast connection without tools: Molded RJ45 plugs provide a direct, stable connection.
10 m reach for flexible placement: Conveniently connect workstations, patch panels, and network outlets.
Easy identification in daily use: Length marking on the plug simplifies assignment and maintenance.
Compatible cabling: 1:1 wiring to EIA/TIA 568B supports existing structures.
The unshielded U/UTP Cat.5e patch cable connects network devices over 10 m. With two straight, molded RJ45 plugs and 1:1 wiring to EIA/TIA 568B, it can be used directly between switch, router, patch panel, and end device such as notebook, IP phone, or printer. The length printed on the plug saves time during installation and documentation.
In professional IT environments and on-site installations, the cable supports efficient workflows, as it is ready for immediate use without preparation. In service deployments and in existing infrastructures of companies and public institutions, the clear labeling helps to trace and replug connections quickly.
Connection: 2x RJ45 plugs, straight, molded
Length: 10 m
Standard: Cat.5e
Shielding: U/UTP (unshielded)
Conductor: AWG 26, 4x2 conductors
Wiring: 1:1 to EIA/TIA 568B
Marking: Length marking on the plug
Packaging: PE bag with EAN code
Color: Gray

Certificates
Certification	EIA / TIA 568B
Features
Product colour	Grey
Cable length	10 m
Cable standard	Cat5e
Cable shielding	U/UTP (UTP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector 1 gender	Male
Connector 2 gender	Male
Jacket material	Polyvinyl chloride (PVC)
Twisted pair coupling type	4x2
AWG wire size	26
Other features
Dimensions (WxDxH)	12 x 10000 x 15 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	175 mm
Package depth	225 mm
Package height	36 mm
Package weight	222 g
Package volume	1400 cm³
Package type	Polybag
Technical data
Width packaging	0.175m
Article length	1000.00cm
Type	Cat.5e
Operation temperature	-10 to +60°C
Article height	1.50cm
Sheath	PVC
Packing	Retail
Length packaging	0.225m
Article width	1.20cm
Shielding	U/UTP
Side A	RJ45 plug straight
Net weight	0.213kg
Diameter	AWG 26
Conductor material	CCA (copper/aluminium)
Weight	0.222kg
Colour	Grey
Side B	RJ45 plug straight
Bending radius (static)	45mm
Design	Round cable
Assignment	1:1
Length	10m
Packaging volume	0.0014m³
Patch cable category	Cat.5e
Signal	Network
Height packaging	0.036m
Outer diameter	5,3mm
Bending radius (dynamic)	45mm
Storage temperature	-20 to +70°C
UL
PoE/PoE+/PoE++
Weight & dimensions
Width	12 mm
Depth	10000 mm
Height	15 mm
Weight	213 g

---
