InLine® Installation cable Cat.7a, S/FTP (PiMF) 4x2x0.58 AWG23 1200MHz B2ca 300m content_copy

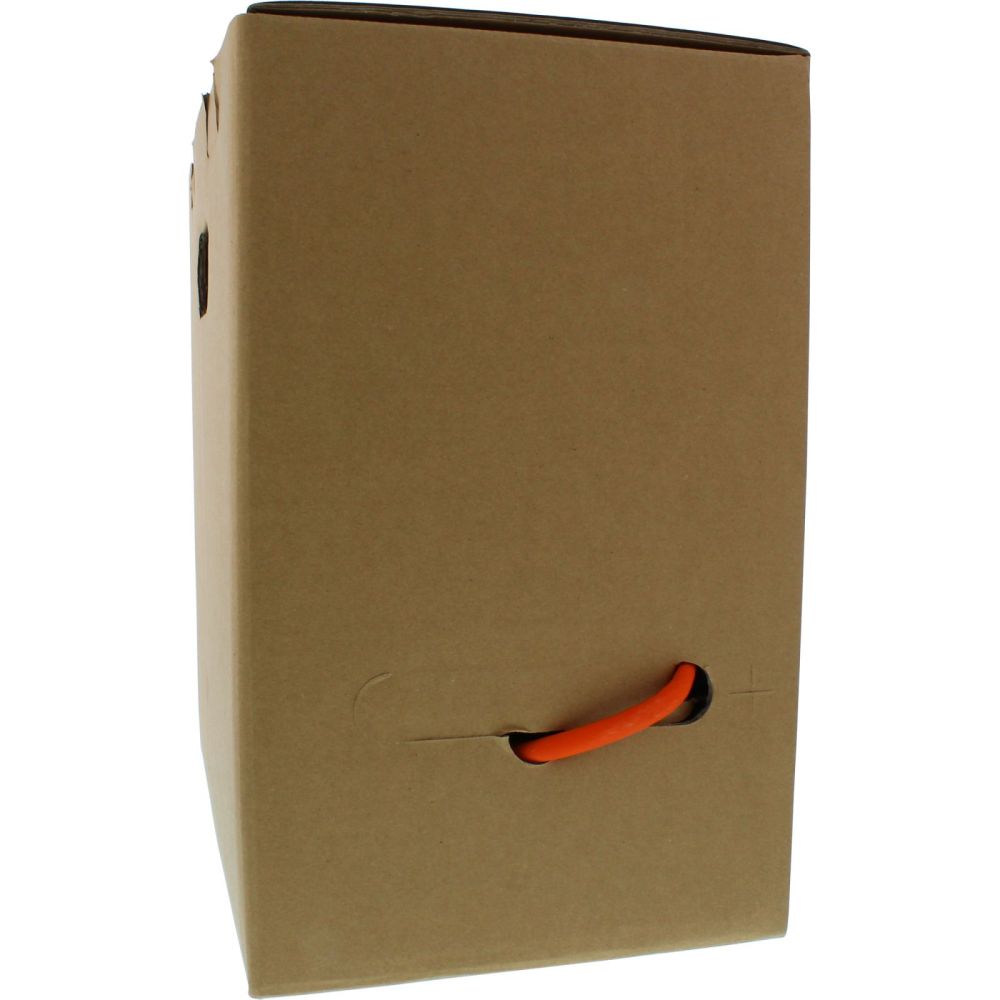

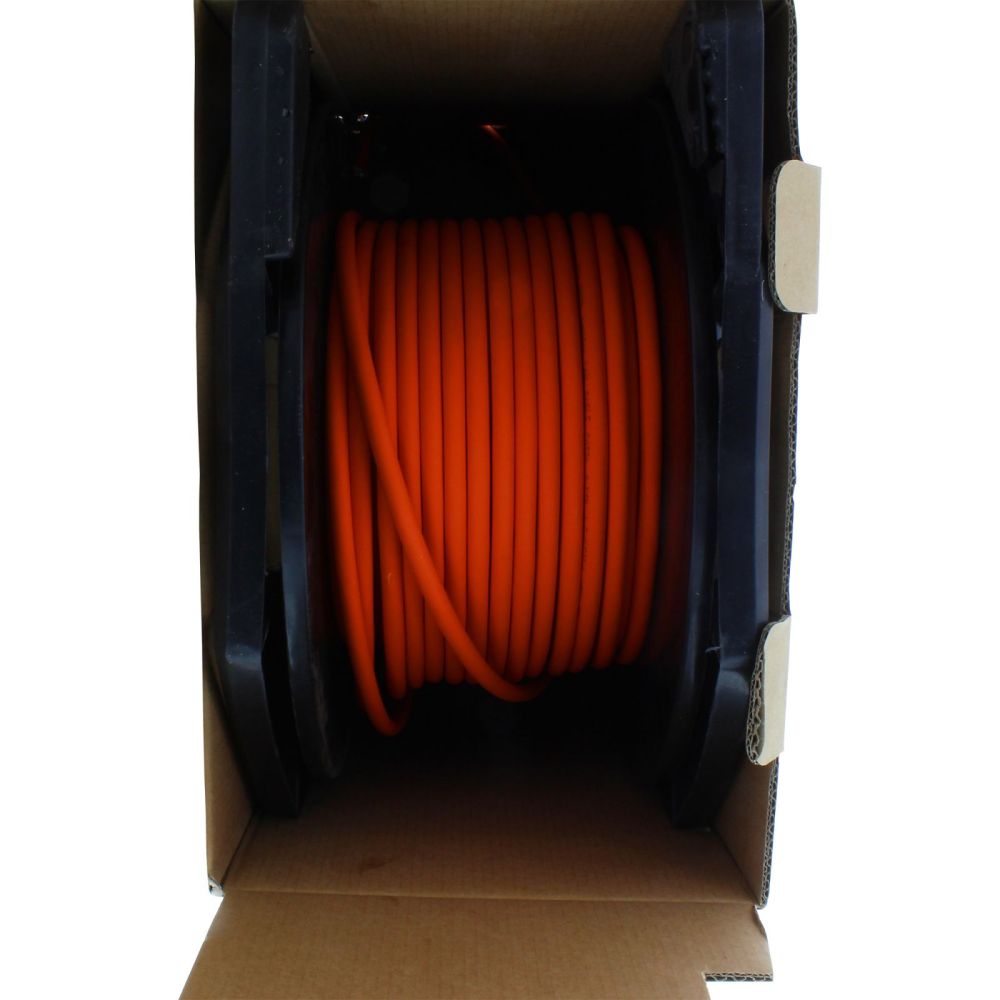

The installation cable is delivered in a drum box for easy removal of the required length. The packaging consists of a plastic reel on which the data cable is rolled up. This roll is fixed in a reinforced cardboard box, which ensures simple and tangle-free unrolling. The reel box offers the following advantages:Cost reduction through easy handling on the construction site without additional unwinding device
Handy and stackable packaging, convenient to transport in the construction site vehicle
Low weight (can also be sent by parcel service)
Avoidance of soiling and transport damage to the cable through repackaging by means of cardboard
Reduction of cutting costs for small quantities
Technical data: Cable for installation
Cat. 7a installation cable up to 1200MHz
Construction: 4x2xAWG23/1 PIMF (0.58mm²)
Suitable up to 10 Gbit
Full copper cores
Impedance: 100Ohm, DC resistance: max. 93.8 Ohm/km
Sheath halogen-free LSZH
Sheath colour orange

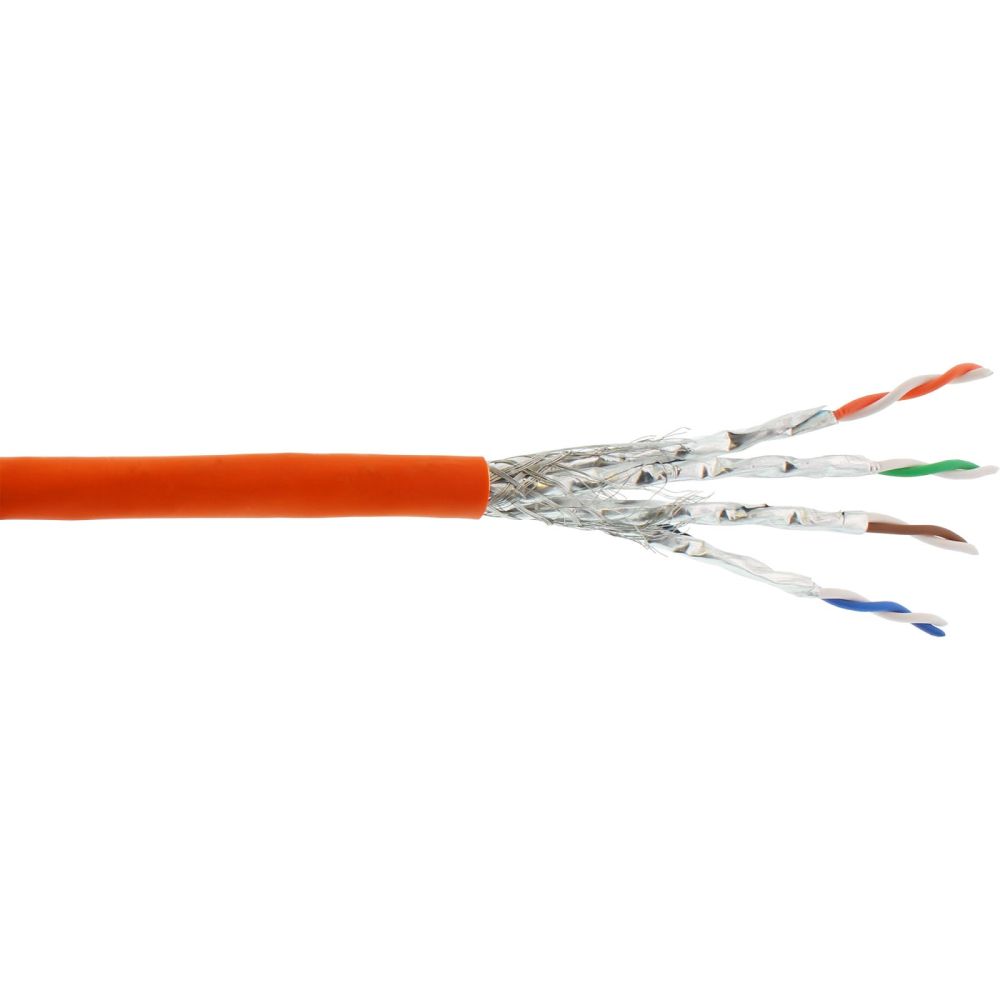

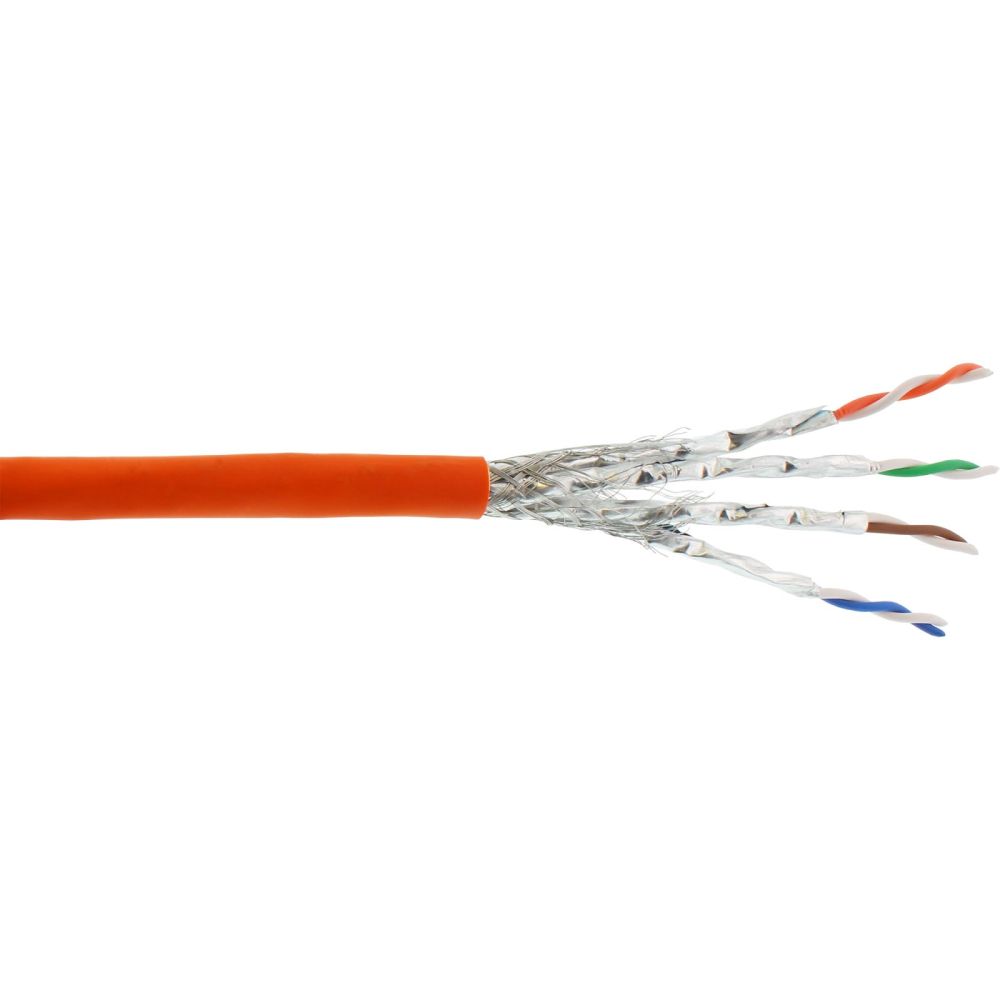

Construction: In pairs in metal foil
Overall braided shielding
Cable diameter approx. 7.8mm
Installation temperature: 0 - 50°C, Operating temperature: -20°C - 60°C, Storage temperature: -20°C - 50°C
With remaining metre indication on cable
Fire behaviour B2ca according to EN 50575: 2014 / A1:2016
Note: The drum box is only available for the bundles 50m, 100m, 300m, whereas 500m is delivered on a drum, the lengths 10m and 25m are delivered in a box.

Features
Product colour	Orange
Cable length	300 m
Cable standard	Cat7a
Cable shielding	S/FTP (S-STP)
Jacket material	Low smoke zero halogen (LSZH)
Cable shape	Round
Conductor material	Copper
Cable fire class	B2ca
AWG wire size	23
Data transfer rate	10000 Mbit/s
Frequency	1200 MHz
Connector 1
Connector 2
Connector 1 gender
Connector 2 gender
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-20 - 50 °C
Other features
Dimensions (WxDxH)	1 x 300000 x 1 mm
Packaging data
Package width	405 mm
Package depth	405 mm
Package height	400 mm
Package weight	20.4 kg
Package volume	65700 cm³
Package type	Reel
Technical data
Packaging volume	0.0657m³
Article width	0.10cm
Data transmission rate	10Gb/s
Colour	Orange
Outer diameter	7.8mm
Max. supported power	90W
Design	Round cable
Variant	CU, halogen-free
Height packaging	0.400m
Max. supported PoE standard	802.3bt
Type	Cat.7A
Side B	Without plug
Weight	20.375kg
Max. supported data transfer rate	10Gb/s
Shielding	S/FTP (PiMf)
Storage temperature	-20 to +50°C
Width packaging	0.405m
Length	300m
Wire pairs used for power transmission	The specific method used is determined by the PSE (Power Sourcing Equipment)
Signal	Network
Side A	Without plug
Article length	30000.00cm
Operation temperature	-20 to +60°C
Article height	0.10cm
Diameter	AWG 23
NVP value	73%
Length packaging	0.405m
Net weight	17.275kg
PoE/PoE+/PoE++
UL
Weight & dimensions
Width	1 mm
Depth	300000 mm
Height	1 mm
Outer diameter	7.8 mm
Weight	17.3 kg

---
