InLine® Solid Installation Cable 250MHz S/STP Cat.6 CU AWG23 halogen free 50m
|
41,83 EUR |
|
|
( 49,78 EUR incl. VAT ) ≈ £35.01 | ≈ $46.81 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22196153 |
| Mfg Part No: | 70550 |
| UPC/EAN: | 4043718264438 |
| Weight: | 2.767 kg |

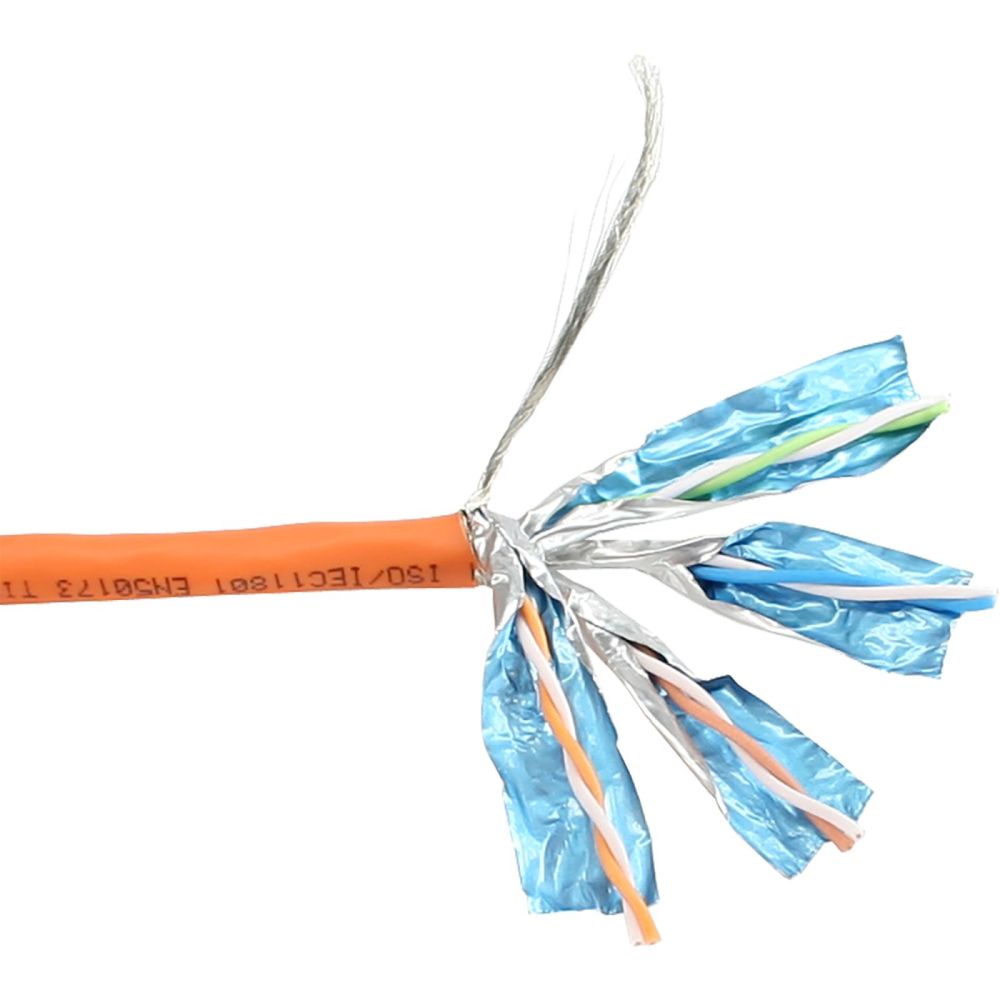

Product information for Inline 70550:
rigid wires
Cat. 6 up to 250MHz
4x2xAWG 23/1
Length: 50m
PiMF, in pairs in metal foil
S/STP, braid overall shield
Sheath halogen-free
With meter printing on the cable
Reaction to fire Eca according to EN 50575:2014 / A1:2016
| Features | |
| Product colour | Orange |
| Cable length | 50 m |
| Cable standard | Cat6 |
| Cable shielding | S/FTP (S-STP) |
| Conductor type | Stranded |
| Conductor material | Copper |
| Cabling technology | 10GBase-T |
| AWG wire size | 23 |
| Data transfer rate | 10000 Mbit/s |
| Frequency | 250 MHz |
| Connector 1 | |
| Connector 2 | |
| Connector 1 gender | |
| Connector 2 gender | |
| Other features | |
| Category | 6 |
| Packaging data | |
| Package width | 260 mm |
| Package depth | 260 mm |
| Package height | 210 mm |
| Package weight | 2.77 kg |
| Package volume | 54600 cm³ |
| Sustainability | |
| Doesn't contain | Halogen |
| Technical data | |
| Side A | Without plug |
| Signal | Network |
| Bending radius (static) | >30mm |
| Side B | Without plug |
| Operation temperature | -10 to +60°C |
| Article length | 5000.00cm |
| Variant | CU, halogen-free |
| Wire pairs used for power transmission | The specific method used is determined by the PSE (Power Sourcing Equipment) |
| Shielding | S/FTP (PiMf) |
| Height packaging | 0.210m |
| Storage temperature | -20 to +70°C |
| Weight | 2.767kg |
| Outer diameter | 6.0mm |
| Max. supported PoE standard | 802.3bt |
| Length | 50m |
| Colour | Orange |
| Packaging volume | 0.0546m³ |
| Max. supported data transfer rate | 1Gb/s |
| Data transmission rate | 1Gb/s |
| Max. supported power | 90W |
| Diameter | AWG 23 |
| Length packaging | 0.260m |
| Width packaging | 0.260m |
| Type | Cat.6 |
| PoE/PoE+/PoE++ | |
| UL | |
| Weight & dimensions | |
| Depth | 50000 mm |
