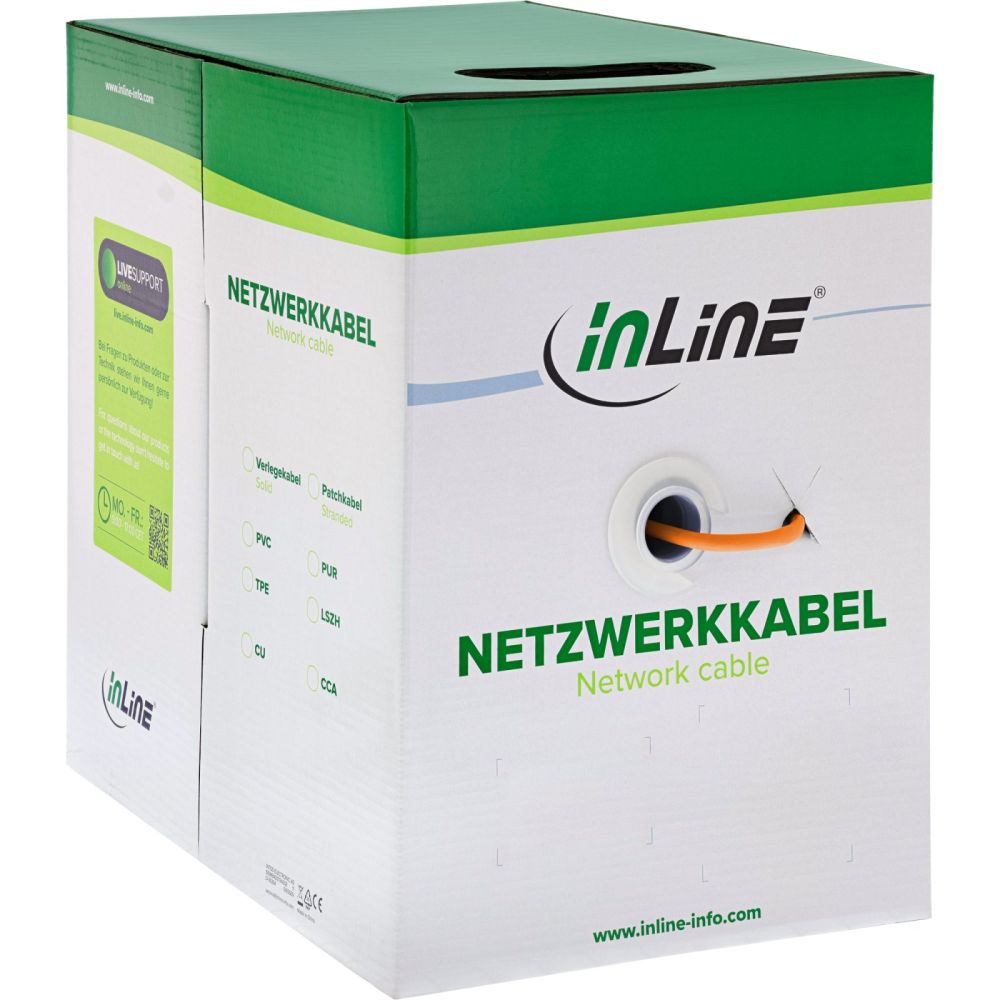

InLine® Solid Installation Cable 250MHz S/STP Cat.6 CU AWG23 halogen free 500m
|
318,66 EUR |
|
|
( 379,21 EUR incl. VAT ) ≈ £266.72 | ≈ $356.58 plus delivery charges: 235,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22196172 |
| Mfg Part No: | 70505 |
| UPC/EAN: | 4043718264421 |
| Weight: | 24 kg |
Product information for Inline 70505:
rigid wires
Cat. 6 up to 250MHz
4x2xAWG 23/1
Length: 50m

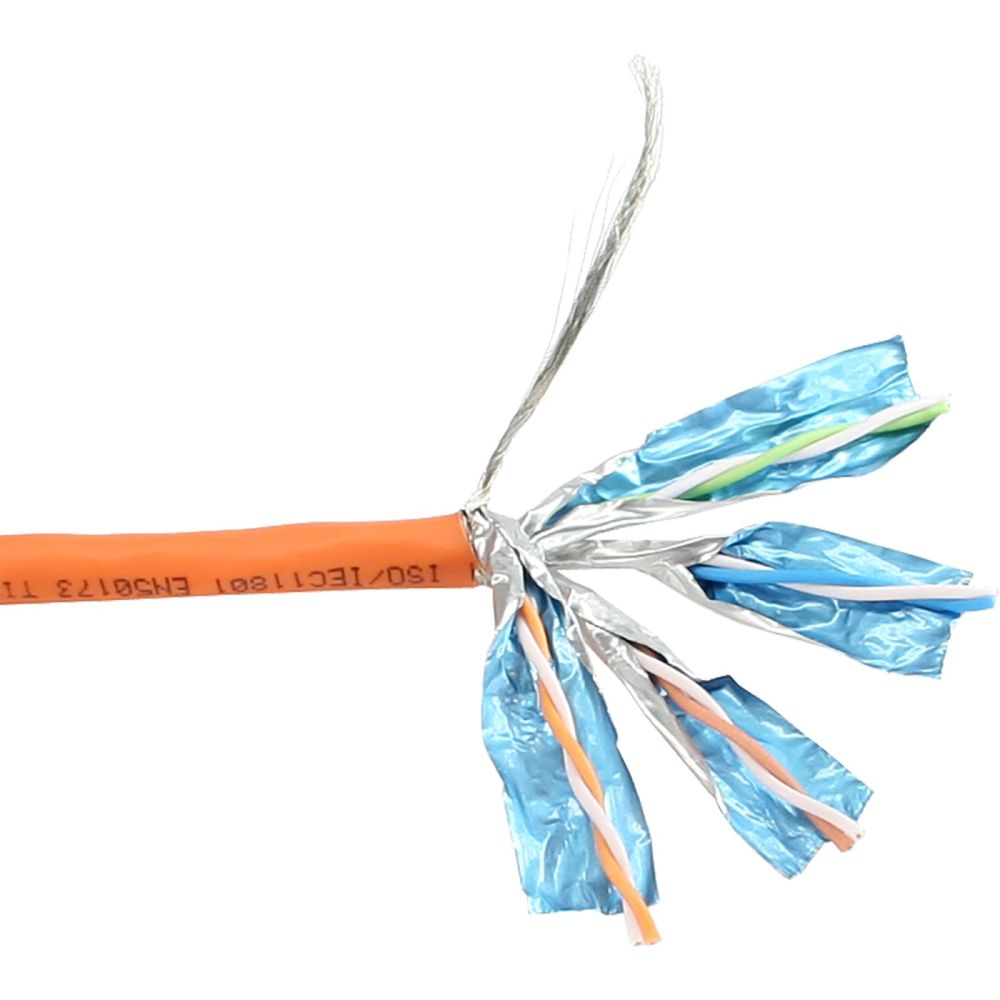

PiMF, in pairs in metal foil
S/STP, braid overall shield
Sheath halogen-free
With meter printing on the cable
Reaction to fire Eca according to EN 50575:2014 / A1:2016
| Features | |
| Product colour | Orange |
| Cable length | 500 m |
| Cable standard | Cat6 |
| Cable shielding | S/FTP (S-STP) |
| Conductor material | Copper |
| Cabling technology | 10GBase-T |
| AWG wire size | 23 |
| Data transfer rate | 10000 Mbit/s |
| Frequency | 250 MHz |
| Connector 1 | |
| Connector 2 | |
| Connector 1 gender | |
| Connector 2 gender | |
| Other features | |
| Category | 6 |
| Packaging data | |
| Package width | 330 mm |
| Package depth | 330 mm |
| Package height | 310 mm |
| Package weight | 24 kg |
| Package volume | 33800 cm³ |
| Sustainability | |
| Doesn't contain | Halogen |
| Technical data | |
| Colour | Orange |
| Outer diameter | 6.0mm |
| Max. supported data transfer rate | 1Gb/s |
| Side A | Without plug |
| Variant | CU, halogen-free |
| Packaging volume | 0.0338m³ |
| Wire pairs used for power transmission | The specific method used is determined by the PSE (Power Sourcing Equipment) |
| Shielding | S/FTP (PiMf) |
| Side B | Without plug |
| Weight | 24.000kg |
| Width packaging | 0.330m |
| Length packaging | 0.330m |
| Max. supported power | 90W |
| Length | 500m |
| Bending radius (static) | >30mm |
| Signal | Network |
| Type | Cat.6 |
| Operation temperature | -10 to +60°C |
| Article length | 50000.00cm |
| Height packaging | 0.310m |
| Storage temperature | -20 to +70°C |
| Data transmission rate | 1Gb/s |
| Max. supported PoE standard | 802.3bt |
| Diameter | AWG 23 |
| UL | |
| PoE/PoE+/PoE++ | |
| Weight & dimensions | |
| Depth | 500000 mm |
Questions & answers
What is the delivery time of InLine® Solid Installation Cable 250MHz S/STP Cat.6 CU AWG23 halogen free 500m?
The article InLine® Solid Installation Cable 250MHz S/STP Cat.6 CU AWG23 halogen free 500m is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 70505 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® Solid Installation Cable 250MHz S/STP Cat.6 CU AWG23 halogen free 500m always at the best possible price. We can give you a discount of 2% on InLine® Solid Installation Cable 250MHz S/STP Cat.6 CU AWG23 halogen free 500m if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
