InLine® Solid Installation Cable 250MHz S/STP Cat.6 CU AWG23 halogen free 100m
|
76,32 EUR |
|
|
( 90,82 EUR incl. VAT ) ≈ £63.88 | ≈ $85.40 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22196148 |
| Mfg Part No: | 70501 |
| UPC/EAN: | 4043718041077 |
| Weight: | 4.5 kg |
Product information for Inline 70501:
rigid wires
Cat. 6 up to 250MHz
4x2xAWG 23/1
Length: 50m

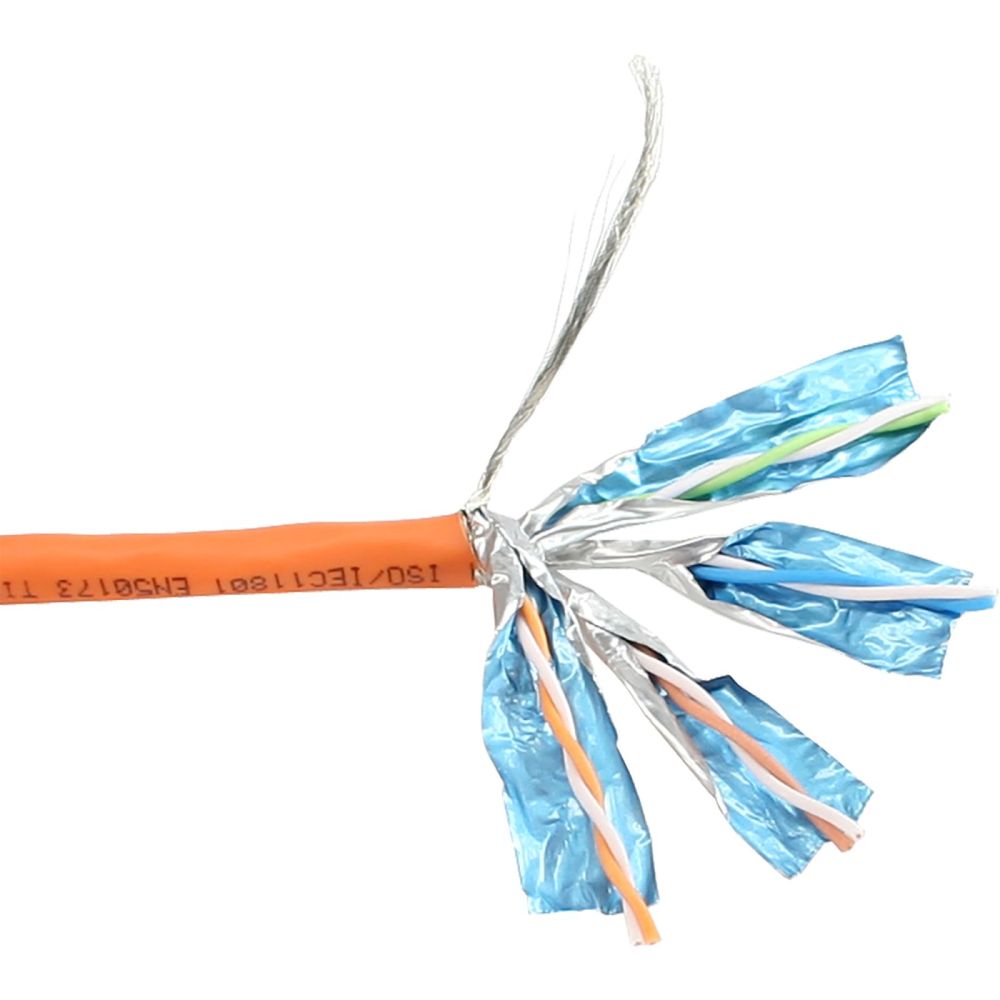

PiMF, in pairs in metal foil
S/STP, braid overall shield
Sheath halogen-free
With meter printing on the cable
Reaction to fire Eca according to EN 50575:2014 / A1:2016
| Features | |
| Product colour | Orange |
| Cable length | 100 m |
| Cable standard | Cat6 |
| Cable shielding | S/FTP (S-STP) |
| Conductor material | Copper |
| AWG wire size | 23 |
| Packaging data | |
| Package width | 370 mm |
| Package depth | 370 mm |
| Package height | 120 mm |
| Package weight | 4.5 kg |
| Package volume | 16400 cm³ |
| Technical data | |
| Variant | CU, halogen-free |
| Outer diameter | 6.0mm |
| Max. supported PoE standard | 802.3bt |
| Length | 100m |
| Side B | Without plug |
| Operation temperature | -10 to +60°C |
| Width packaging | 0.370m |
| Type | Cat.6 |
| Article length | 10000.00cm |
| Height packaging | 0.120m |
| Signal | Network |
| Colour | Orange |
| Data transmission rate | 1Gb/s |
| Max. supported power | 90W |
| Packaging volume | 0.0164m³ |
| Max. supported data transfer rate | 1Gb/s |
| Shielding | S/FTP (PiMf) |
| Side A | Without plug |
| Bending radius (static) | >30mm |
| Wire pairs used for power transmission | The specific method used is determined by the PSE (Power Sourcing Equipment) |
| Storage temperature | -20 to +70°C |
| Weight | 4.500kg |
| Length packaging | 0.370m |
| Net weight | 5.556kg |
| Diameter | AWG 23 |
| PoE/PoE+/PoE++ | |
| UL | |
| Weight & dimensions | |
| Depth | 100000 mm |
| Weight | 5.56 kg |
Questions & answers
What is the delivery time of InLine® Solid Installation Cable 250MHz S/STP Cat.6 CU AWG23 halogen free 100m?
The article InLine® Solid Installation Cable 250MHz S/STP Cat.6 CU AWG23 halogen free 100m is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 70501 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® Solid Installation Cable 250MHz S/STP Cat.6 CU AWG23 halogen free 100m always at the best possible price. We can give you a discount of 2% on InLine® Solid Installation Cable 250MHz S/STP Cat.6 CU AWG23 halogen free 100m if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
