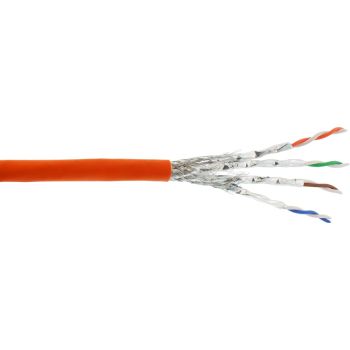

INLINE Installation cable Cat.7a PiMF 4x2x0.58 AWG23 1200MHz LSZH orange 500m drum content_copy

The installation cable is supplied in 50 m, 100 m and 300 m reels in a drum box for easy removal of the required length. The 500 m pack, on the other hand, is supplied on a drum. In the drum box, the data cable is wound onto a plastic reel. This reel is secured inside a reinforced cardboard box. This allows for easy, tangle-free unwinding. The drum box offers the following advantages:
Cost reduction thanks to easy handling on site without the need for an additional unwinding device
Handy and stackable packaging, convenient to transport in a site vehicle
Low weight (can also be sent via parcel service)Prevents soiling and transport damage to the cable thanks to the cardboard outer packaging
Reduces cutting costs for small quantities
Technical data:
Cable for installation
Cat. 7a installation cable up to 1200 MHz
Construction: 4x2xAWG23/1 PIMF (0.58 mm² )
Suitable for up to 10 Gbit
Solid copper conductors
Impedance: 100 Ohms, DC resistance: max. 87 Ohms/km
Halogen-free LSZH sheath
Sheath colour: orange
Construction: Paired in metal foil
Overall braided shield
Cable diameter approx. 8.2 mm
Installation temperature: 0 – 50 °C, operating temperature: -20 °C – 60 ° C
With remaining length indicated on the cable
Fire behaviour: Eca in accordance with EN 50575:2014 / A1:2016

Features
Product colour	Orange
Cable length	500 m
Cable standard	Cat7a
Cable shielding	S/FTP (S-STP)
Jacket material	Low smoke zero halogen (LSZH)
Conductor material	Copper
AWG wire size	23
Connector 1
Connector 2
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Other features
Input impedance	100 Ω
Packaging data
Package width	530 mm
Package depth	530 mm
Package height	430 mm
Package weight	33 kg
Package volume	120800 cm³
Technical data
Shielding	S/FTP (PiMf)
Width packaging	0.530m
Operation temperature	-20 to +60°C
Side B	Without plug
Type	Cat.7A
Net weight	31.985kg
Diameter	AWG 23
NVP value	76%
Length packaging	0.530m
Height packaging	0.430m
Article length	50000.00cm
Length	500m
Colour	Orange
Outer diameter	8.2mm
Signal	Network
Weight	33.000kg
Side A	Without plug
Data transmission rate	10Gb/s
Variant	CU, halogen-free
Packaging volume	0.1208m³
UL
PoE/PoE+/PoE++
Weight & dimensions
Depth	500000 mm
Outer diameter	8.2 mm
Weight	32 kg

---
