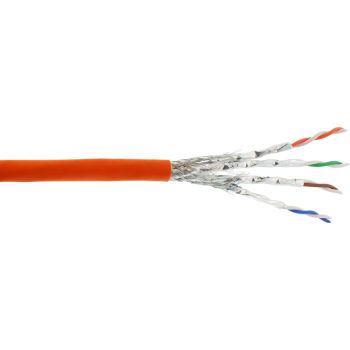

INLINE Installation cable Cat.7a PiMF 4x2x0.58 AWG23 1200MHz LSZH orange 300m box
|
232,17 EUR |
|
|
( 276,28 EUR incl. VAT ) ≈ £194.33 | ≈ $259.80 plus delivery charges: 235,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| End-Of-Life: | 26. Jul 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 2125882 |
| Mfg Part No: | 70300I |
| UPC/EAN: | 4043718208029 |
| Weight: | 20.3 kg |
Product information for Inline 70300I:
Cost reduction thanks to easy handling on site without the need for an additional unwinding device
Handy and stackable packaging, convenient to transport in a site vehicle
Low weight (can also be sent via parcel service)Prevents soiling and transport damage to the cable thanks to the cardboard outer packaging
Reduces cutting costs for small quantities
Technical data:
Cable for installation
Cat. 7a installation cable up to 1200 MHz
Construction: 4x2xAWG23/1 PIMF (0.58 mm² )
Suitable for up to 10 Gbit
Solid copper conductors
Impedance: 100 Ohms, DC resistance: max. 87 Ohms/km
Halogen-free LSZH sheath
Sheath colour: orange
Construction: Paired in metal foil
Overall braided shield
Cable diameter approx. 8.2 mm
Installation temperature: 0 – 50 °C, operating temperature: -20 °C – 60 ° C
With remaining length indicated on the cable
Fire behaviour: Eca in accordance with EN 50575:2014 / A1:2016
| Features | |
| Product colour | Orange |
| Cable length | 300 m |
| Cable standard | Cat7a |
| Cable shielding | S/FTP (S-STP) |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor material | Copper |
| AWG wire size | 23 |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | 0 - 50 °C |
| Packaging data | |
| Package width | 415 mm |
| Package depth | 415 mm |
| Package height | 400 mm |
| Package weight | 20.3 kg |
| Package volume | 68900 cm³ |
| Technical data | |
| NVP value | 76% |
| Variant | CU, halogen-free |
| Packaging volume | 0.0689m³ |
| Net weight | 18.920kg |
| Side B | Without plug |
| Type | Cat.7A |
| Weight | 20.300kg |
| Data transmission rate | 10Gb/s |
| Shielding | S/FTP (PiMf) |
| Height packaging | 0.400m |
| Article length | 30000.00cm |
| Operation temperature | -20 to +60°C |
| Width packaging | 0.415m |
| Diameter | AWG 23 |
| Side A | Without plug |
| Length | 300m |
| Length packaging | 0.415m |
| Signal | Network |
| Colour | Orange |
| Outer diameter | 8.2mm |
| PoE/PoE+/PoE++ | |
| UL | |
| Weight & dimensions | |
| Depth | 300000 mm |
| Weight | 18.9 kg |
