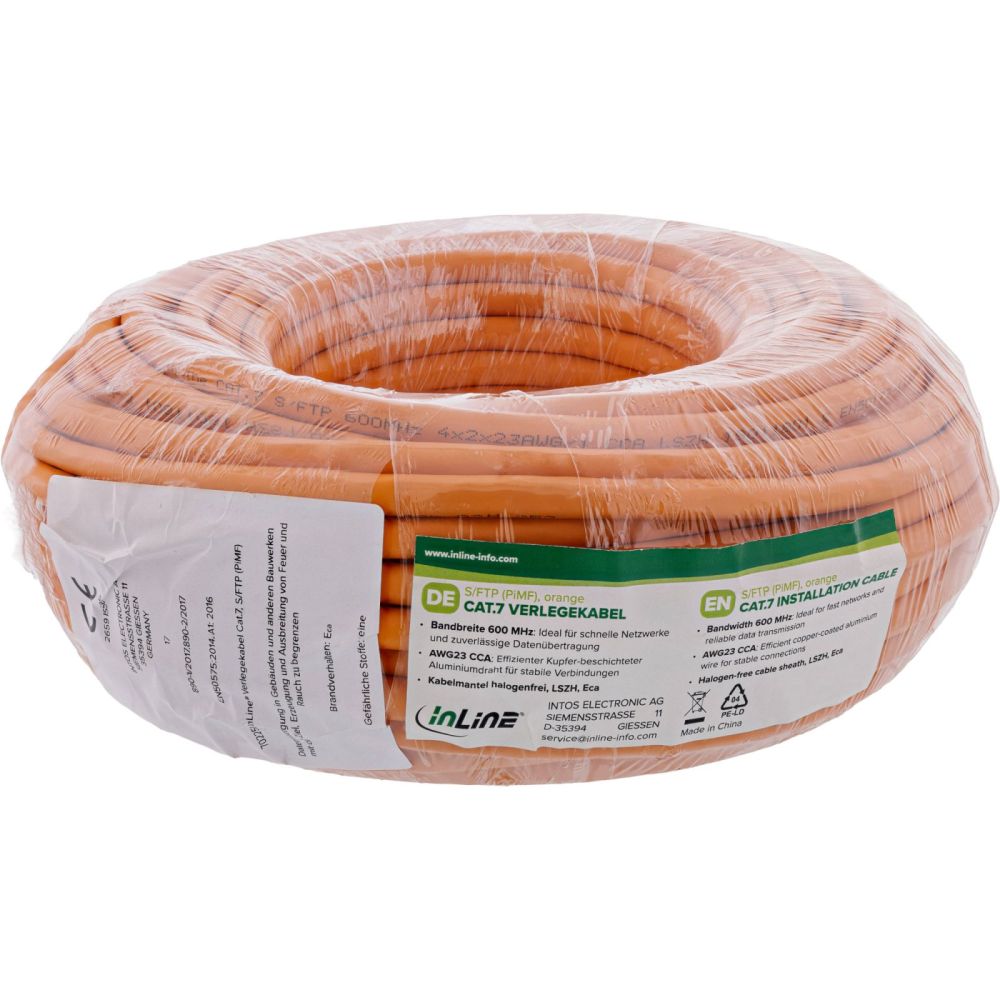

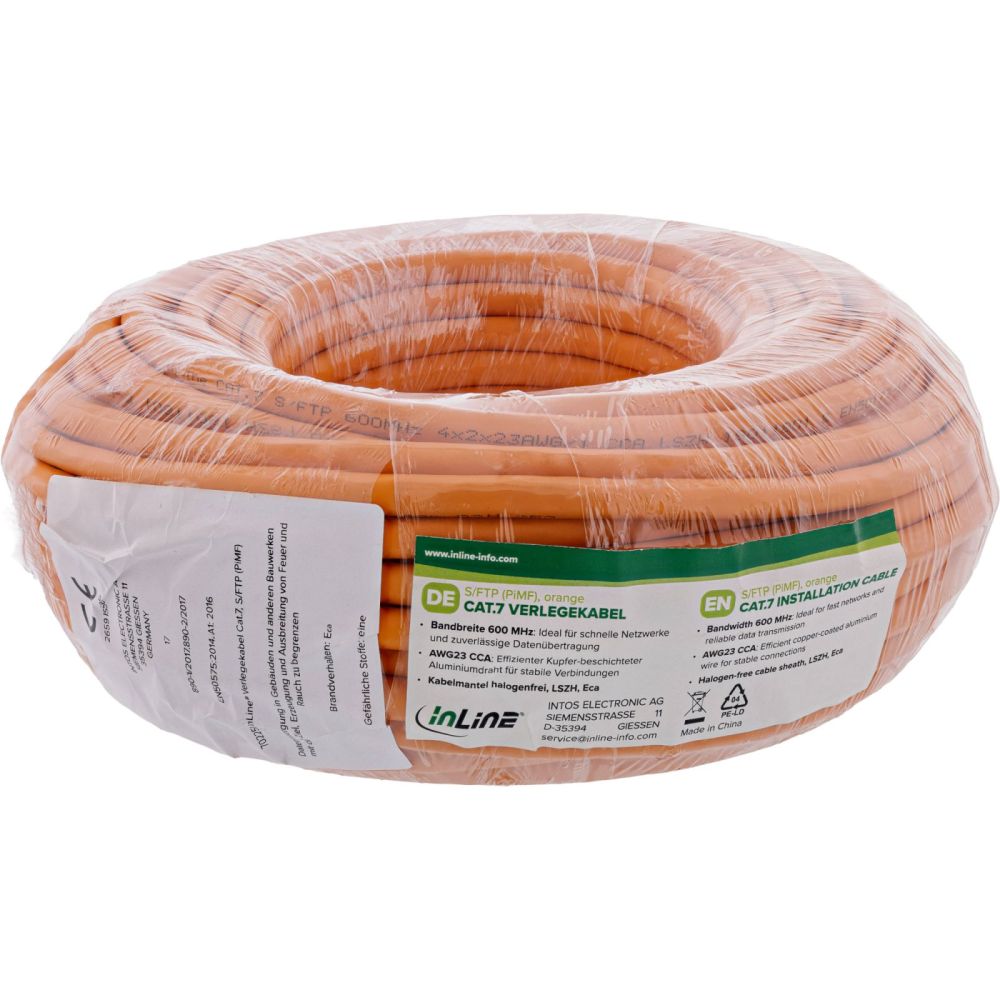

InLine® Cat.7 S/FTP installation cable, CCA, PoE+, halogen-free, orange, 20m content_copy

Reliable home cabling at a great price: The CCA cable with 20% copper content offers stable performance and saves costs – ideal for private use.
PoE-compatible for modern applications: Supports IEEE 802.3af (PoE) and 802.3at (PoE+) – perfect for access points, cameras or smart home devices.
Safe installation thanks to halogen-free sheathing: The LSZH material meets Eca classification and ensures minimal smoke development in the event of a fire.
Effective shielding against interference: The combination of AL foil and braiding reduces electromagnetic interference and increases transmission reliability.
Compact length for every situation: Available in lengths of 10–50 m – ideal for short installation distances, e.g. in the house connection room or network cabinet.
The InLine® Cat.7 installation cable has been specially developed for users who are looking for reliable network technology at an attractive price. With a transmission frequency of up to 600 MHz and CCA conductor material (copper-coated aluminium with 20% copper content), this cable is ideal for structured home cabling where budget awareness and performance are equally important.

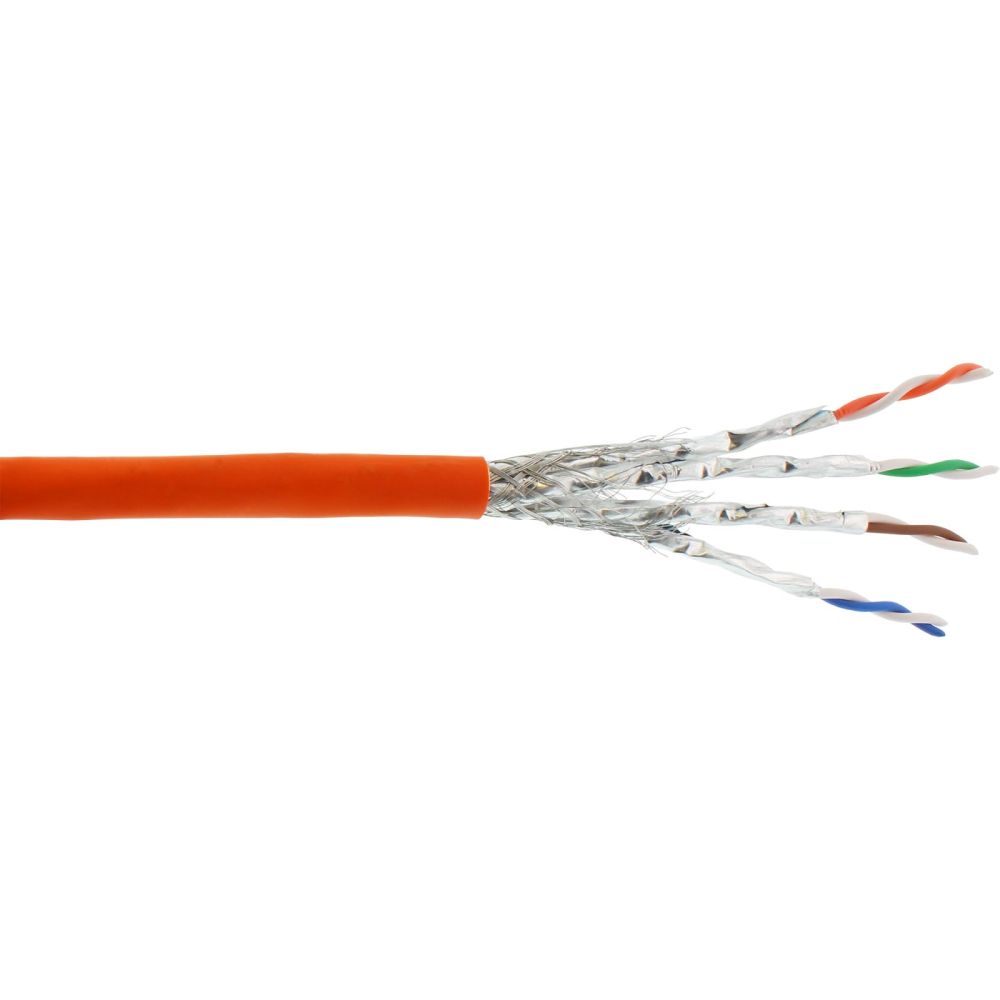

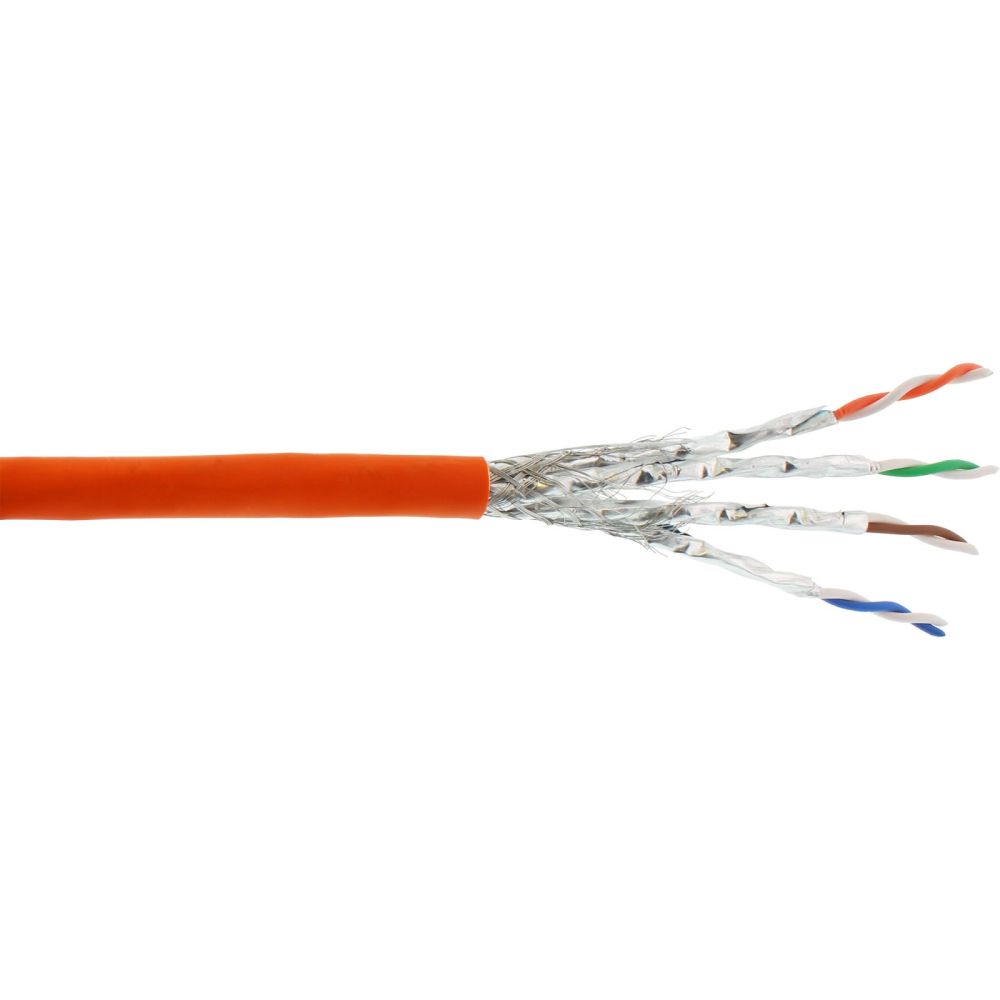

Thanks to its PoE and PoE+ compatibility (IEEE 802.3af/at), the cable is perfect for modern applications such as IP cameras, access points or smart home systems – without the need for additional power cables. The double shielding (S/FTP) consisting of aluminium foil and braiding reliably reduces electromagnetic interference.
The halogen-free LSZH sheath offers increased safety in the event of a fire and meets the CPR classification Eca. The striking orange colour also ensures easy identification during installation. Available in practical lengths from 10 to 50 m, the cable is the perfect choice for home users looking for a simple, safe and cost-effective solution.
Conductor material: copper-coated aluminium (CCA), 20% copper content
Cores: 8 conductors (4 pairs)
AWG: 23
Construction: 1/0.57 mm
Insulation diameter: 1.35 mm
Sheath material: LSZH
Sheath thickness: 0.55 mm ±0.05
Outer diameter: 7.6 mm ±0.3
Shielding: AL foil ≥25%
Braiding: AL-MG ≥30%
PoE support: IEEE 802.3af and 802.3at
Standards: ISO/IEC 11801, EN 50575, IEC 60332-1-2
CPR classification: Eca

Certificates
Compliance certificates	CE, RoHS
Certification	ISO/IEC 11801, EN 50575, IEC 60332-1-2
Features
Product colour	Orange
Cable length	20 m
Cable standard	Cat7
Cable shielding	S/FTP (S-STP)
Jacket material	Low smoke zero halogen (LSZH)
Cable shape	Round
Conductor material	Copper-Clad Aluminium (CCA)
Twisted pair coupling type	4x2
Cable fire class	Eca
Networking standards	IEEE 802.3af, IEEE 802.3at
AWG wire size	23
Data transfer rate	10000 Mbit/s
Frequency	600 MHz
Power over Ethernet (PoE) type supported	PoE+, PoE++ (4PPoE)
Total Power over Ethernet (PoE) budget	30 W
Country of origin	Taiwan
Connector 1
Connector 2
Connector 1 gender
Connector 2 gender
Power over Ethernet (PoE)
Operational conditions
Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Other features
Insulation outer diameter	1.35 mm
Dimensions (WxDxH)	7 x 20000 x 7 mm
Packaging data
Package width	195 mm
Package depth	195 mm
Package height	65 mm
Package weight	825 g
Sustainability
Doesn't contain	Halogen
Technical data
Outer diameter	7.8mm
Variant	CCA, halogen free
Weight	0.825kg
Type	Cat.7
Operation temperature	-20 to +60°C
NVP value	73%
Width packaging	0.195m
Shielding	S/FTP (PiMf)
Colour	Orange
Max. supported power	30W
Height packaging	0.065m
Article height	0.70cm
Side B	Without plug
Design	Round cable
Side A	Without plug
Max. supported data transfer rate	10Gb/s
Article length	2000.00cm
Data transmission rate	10Gb/s
Storage temperature	-20 to +50°C
Article width	0.70cm
Length	20m
Length packaging	0.195m
Max. supported PoE standard	802.3at
Signal	Network
Wire pairs used for power transmission	1236 or 4578, the specific method used is determined by the PSE (Power Sourcing Equipment)
Net weight	0.821kg
Diameter	AWG 23
Gold plated contacts
PoE/PoE+/PoE++
UL
Weight & dimensions
Width	7 mm
Depth	20000 mm
Height	7 mm
Outer diameter	7.6 mm
Weight	821 g

---
