INLINE Cat.7a solid installation cable S/FTP (PiMF) 4x2x0,58 AWG23 copper 1200MHz PE-Mantel black 100m
|
120,81 EUR |
|
|
( 143,76 EUR incl. VAT ) ≈ £101.12 | ≈ $135.19 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| End-Of-Life: | 26. Jul 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 292703 |
| Mfg Part No: | 70100P |
| UPC/EAN: | 4043718219445 |
| Weight: | 6.05 kg |
Product information for Inline 70100P:
Handy an stackable packaging
Lightweight (can be send with standard parcel services)
Prevention of pollution and damage because of the packaging cardboard
Reduces average costs for small pieces of cable
Technical specificationsCable for installation
Cat 7a installation cable with up to 1200 MHz
Architecture: 4x2xAWG23/1 PIMF
Suitable for up to 10 GBit
Full copper wires
Impedance: 100Ohm DC resistance: max 87 Ohm/Km
LDPE Cable sheath, UV resistant, making it suitable for outdoor use
Sheath color: black
Compliant with ISO/IEC 11801, IEC 61156-5

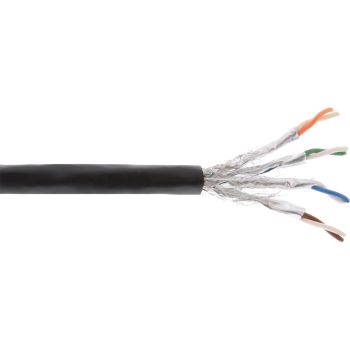

Construction: pairs in metal foil
Overall braid shielding
Cable diameter approx. 8.2mm
Installation temperature 0 - 50°C, operating temperature -20 - 60°C
Printed rest-meters on the cable
| Features | |
| Product colour | Black |
| Cable length | 100 m |
| Cable standard | Cat7a |
| Cable shielding | S/FTP (S-STP) |
| Connector contacts plating | Gold |
| Conductor material | Copper |
| AWG wire size | 23 |
| Connector 1 | |
| Connector 2 | |
| Other features | |
| Input impedance | 100 Ω |
| Packaging data | |
| Package width | 210 mm |
| Package depth | 330 mm |
| Package height | 332 mm |
| Package weight | 6.05 kg |
| Package volume | 23000 cm³ |
| Technical data | |
| Height packaging | 0.332m |
| Max. supported power | 90W |
| Data transmission rate | 10Gb/s |
| Packaging volume | 0.0230m³ |
| Max. supported data transfer rate | 10Gb/s |
| Diameter | AWG 23 |
| Article length | 10000.00cm |
| Outer diameter | 8.2mm |
| Width packaging | 0.210m |
| Colour | Black |
| Type | Cat.7A |
| Wire pairs used for power transmission | The specific method used is determined by the PSE (Power Sourcing Equipment) |
| Length | 100m |
| Length packaging | 0.330m |
| Net weight | 6.547kg |
| Variant | CU |
| Max. supported PoE standard | 802.3bt |
| Weight | 6.050kg |
| Side B | Without plug |
| Signal | Network |
| Side A | Without plug |
| Shielding | S/FTP (PiMf) |
| UL | |
| Weight & dimensions | |
| Depth | 100000 mm |
| Weight | 6.55 kg |
Questions & answers
What is the delivery time of INLINE Cat.7a solid installation cable S/FTP (PiMF) 4x2x0,58 AWG23 copper 1200MHz PE-Mantel black 100m?
The article INLINE Cat.7a solid installation cable S/FTP (PiMF) 4x2x0,58 AWG23 copper 1200MHz PE-Mantel black 100m is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 70100P to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you INLINE Cat.7a solid installation cable S/FTP (PiMF) 4x2x0,58 AWG23 copper 1200MHz PE-Mantel black 100m always at the best possible price. We can give you a discount of 2% on INLINE Cat.7a solid installation cable S/FTP (PiMF) 4x2x0,58 AWG23 copper 1200MHz PE-Mantel black 100m if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
