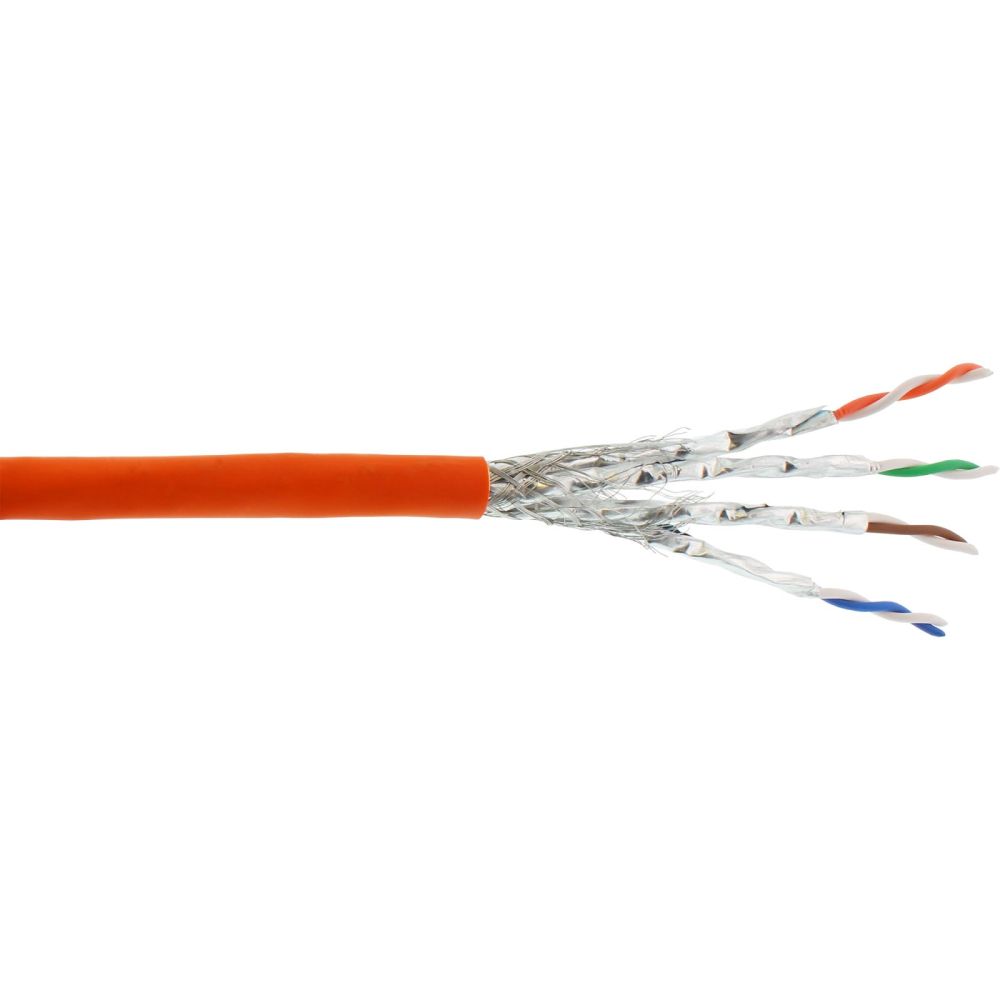

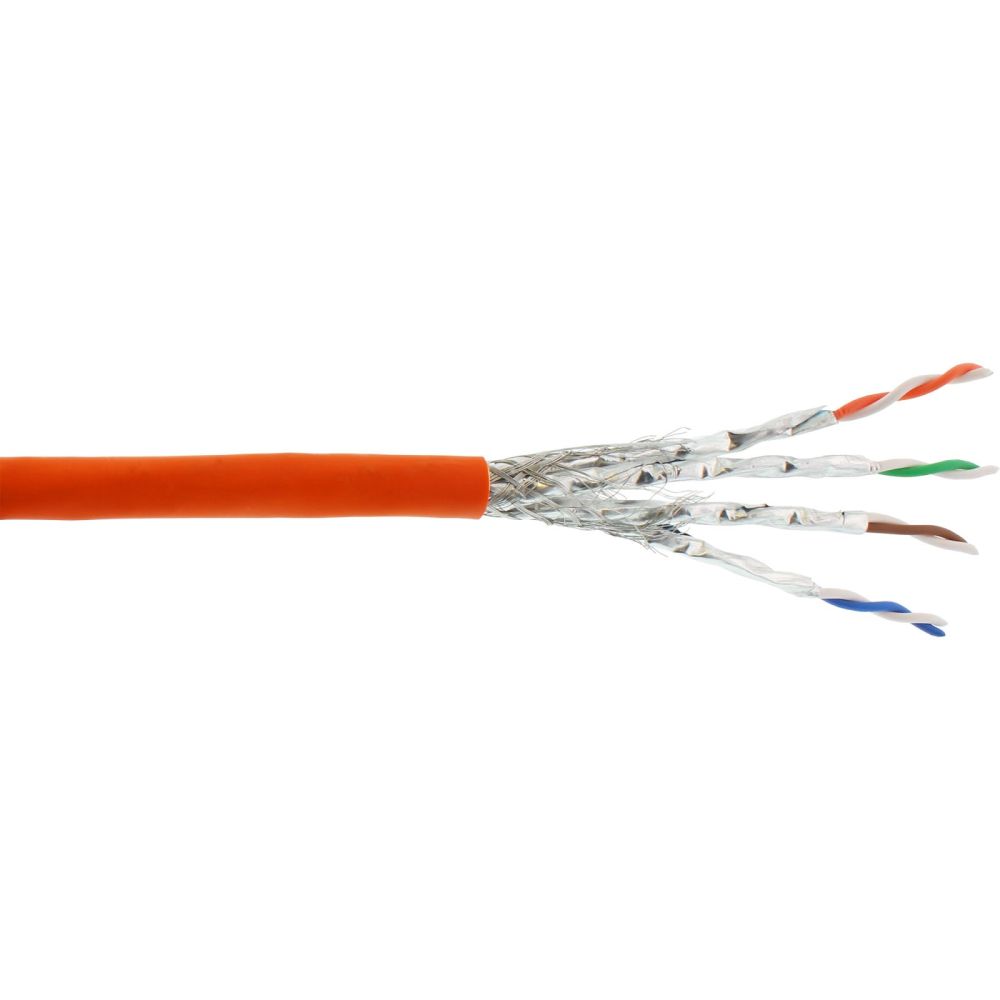

INLINE Installation cable Cat.7a PiMF 4x2x0.58 AWG23 1200MHz LSZH orange 100m box content_copy

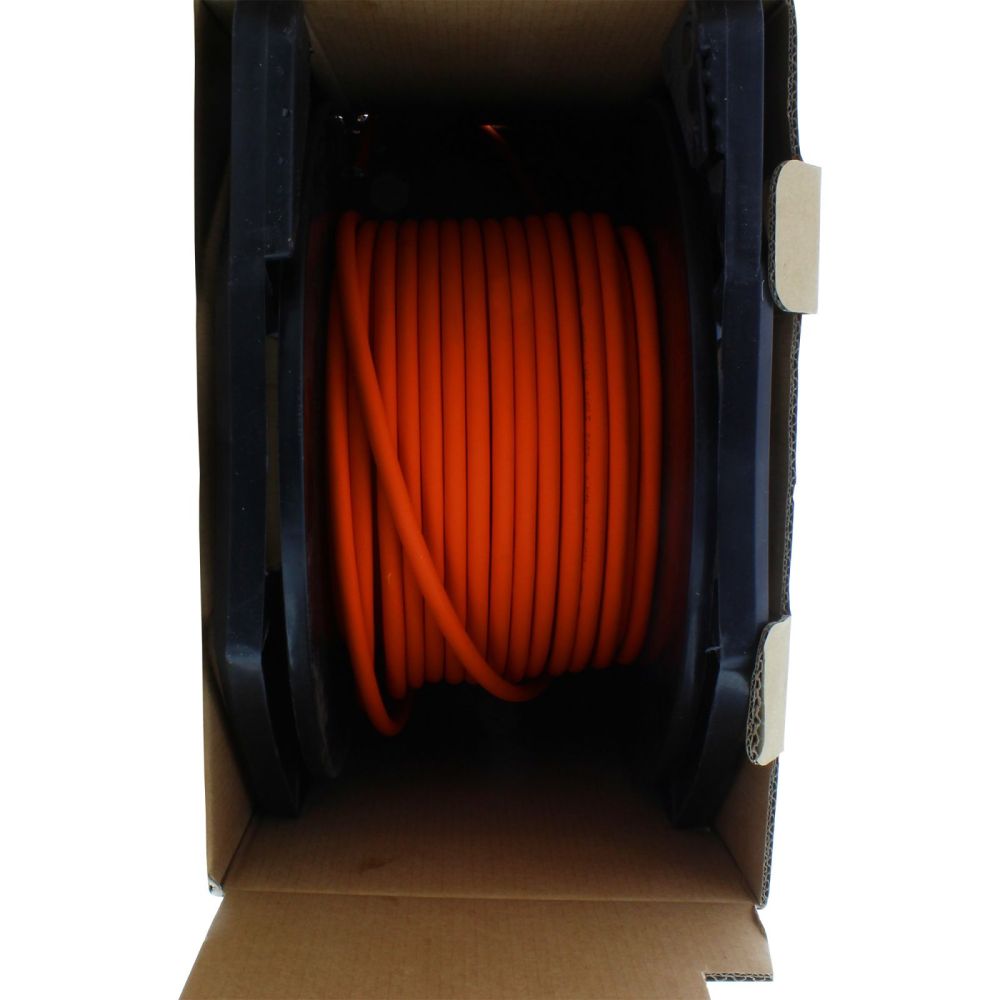

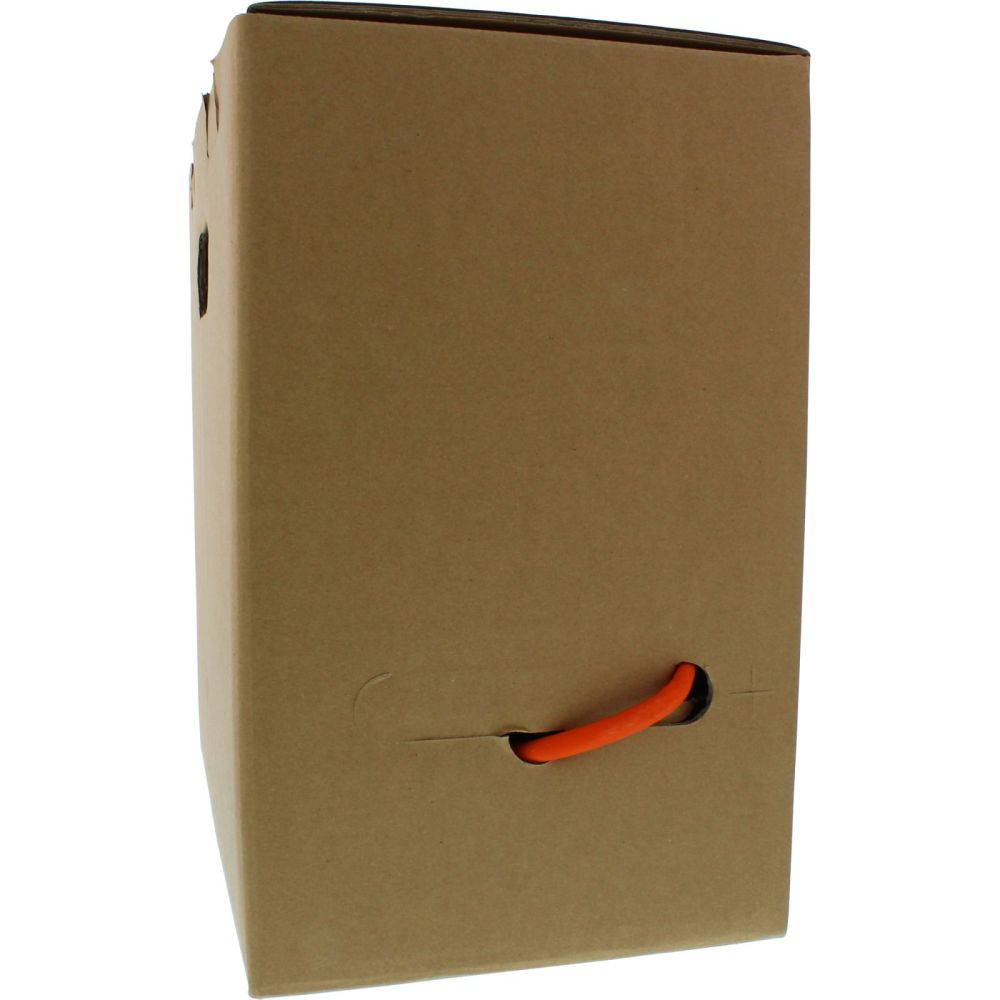

The installation cable is supplied in 50 m, 100 m and 300 m reels in a drum box for easy removal of the required length. The 500 m pack, on the other hand, is supplied on a drum. In the drum box, the data cable is wound onto a plastic reel. This reel is secured inside a reinforced cardboard box. This allows for easy, tangle-free unwinding. The drum box offers the following advantages:
Cost reduction thanks to easy handling on site without the need for an additional unwinding device
Handy and stackable packaging, convenient to transport in a site vehicle
Low weight (can also be sent via parcel service)Prevents soiling and transport damage to the cable thanks to the cardboard outer packaging
Reduces cutting costs for small quantities
Technical data:
Cable for installation
Cat. 7a installation cable up to 1200 MHz
Construction: 4x2xAWG23/1 PIMF (0.58 mm² )
Suitable for up to 10 Gbit
Solid copper conductors
Impedance: 100 Ohms, DC resistance: max. 87 Ohms/km
Halogen-free LSZH sheath
Sheath colour: orange
Construction: Paired in metal foil
Overall braided shield
Cable diameter approx. 8.2 mm
Installation temperature: 0 – 50 °C, operating temperature: -20 °C – 60 ° C
With remaining length indicated on the cable
Fire behaviour: Eca in accordance with EN 50575:2014 / A1:2016

Features
Product colour	Orange
Cable length	100 m
Cable standard	Cat7a
Cable shielding	S/FTP (S-STP)
Jacket material	Low smoke zero halogen (LSZH)
Conductor material	Copper
Ethernet interface type	10 Gigabit Ethernet
AWG wire size	23
Data transfer rate	10000 Mbit/s
Frequency	1200 MHz
Connector 1
Connector 2
Connector 1 gender
Connector 2 gender
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	0 - 50 °C
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	210 mm
Package depth	330 mm
Package height	335 mm
Package weight	6.96 kg
Package volume	23200 cm³
Sustainability
Doesn't contain	Halogen
Technical data
Side A	Without plug
NVP value	76%
Outer diameter	8.2mm
Width packaging	0.210m
Diameter	AWG 23
Side B	Without plug
Signal	Network
Variant	CU, halogen-free
Height packaging	0.335m
Max. supported power	90W
Max. supported PoE standard	802.3bt
Length	100m
Length packaging	0.330m
Net weight	6.388kg
Operation temperature	-20 to +60°C
Colour	Orange
Packaging volume	0.0232m³
Max. supported data transfer rate	10Gb/s
Data transmission rate	10Gb/s
Weight	6.958kg
Article length	10000.00cm
Type	Cat.7A
Wire pairs used for power transmission	The specific method used is determined by the PSE (Power Sourcing Equipment)
Shielding	S/FTP (PiMf)
PoE/PoE+/PoE++
UL
Weight & dimensions
Depth	100000 mm
Weight	6.39 kg

---
