INLINE Installation cable Cat.7a PiMF 4x2x0.58 AWG23 1200MHz LSZH orange 50m box content_copy

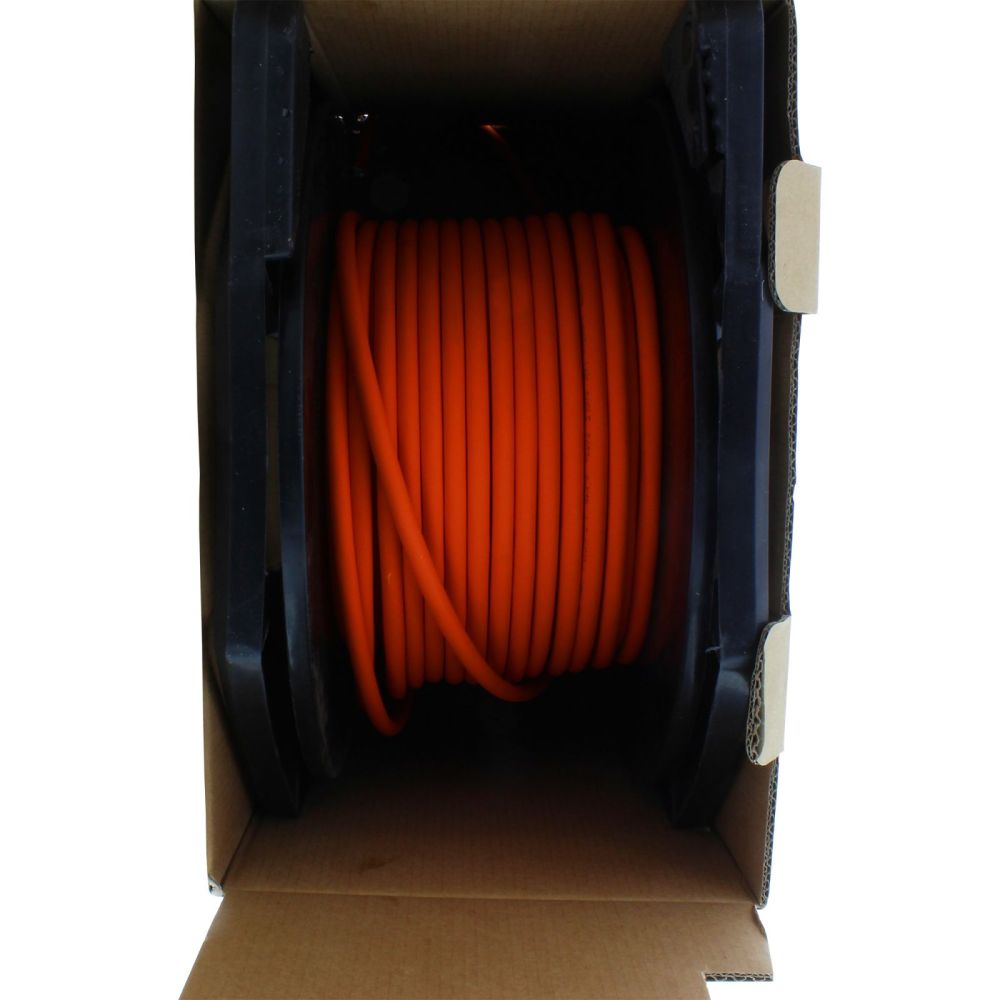

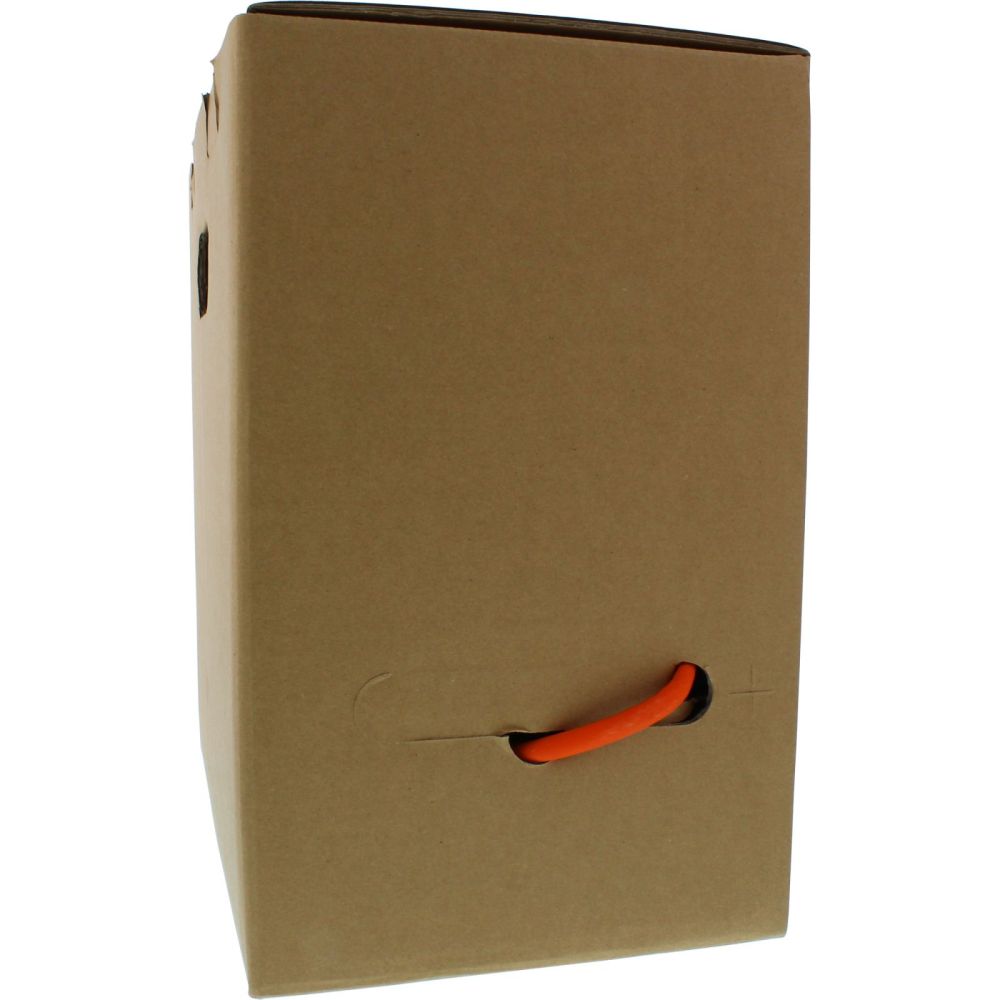

The installation cable is supplied in 50 m, 100 m and 300 m reels in a drum box for easy removal of the required length. The 500 m pack, on the other hand, is supplied on a drum. In the drum box, the data cable is wound onto a plastic reel. This reel is secured inside a reinforced cardboard box. This allows for easy, tangle-free unwinding. The drum box offers the following advantages:
Cost reduction thanks to easy handling on site without the need for an additional unwinding device
Handy and stackable packaging, convenient to transport in a site vehicle
Low weight (can also be sent via parcel service)Prevents soiling and transport damage to the cable thanks to the cardboard outer packaging
Reduces cutting costs for small quantities
Technical data:
Cable for installation
Cat. 7a installation cable up to 1200 MHz
Construction: 4x2xAWG23/1 PIMF (0.58 mm² )
Suitable for up to 10 Gbit
Solid copper conductors
Impedance: 100 Ohms, DC resistance: max. 87 Ohms/km
Halogen-free LSZH sheath
Sheath colour: orange

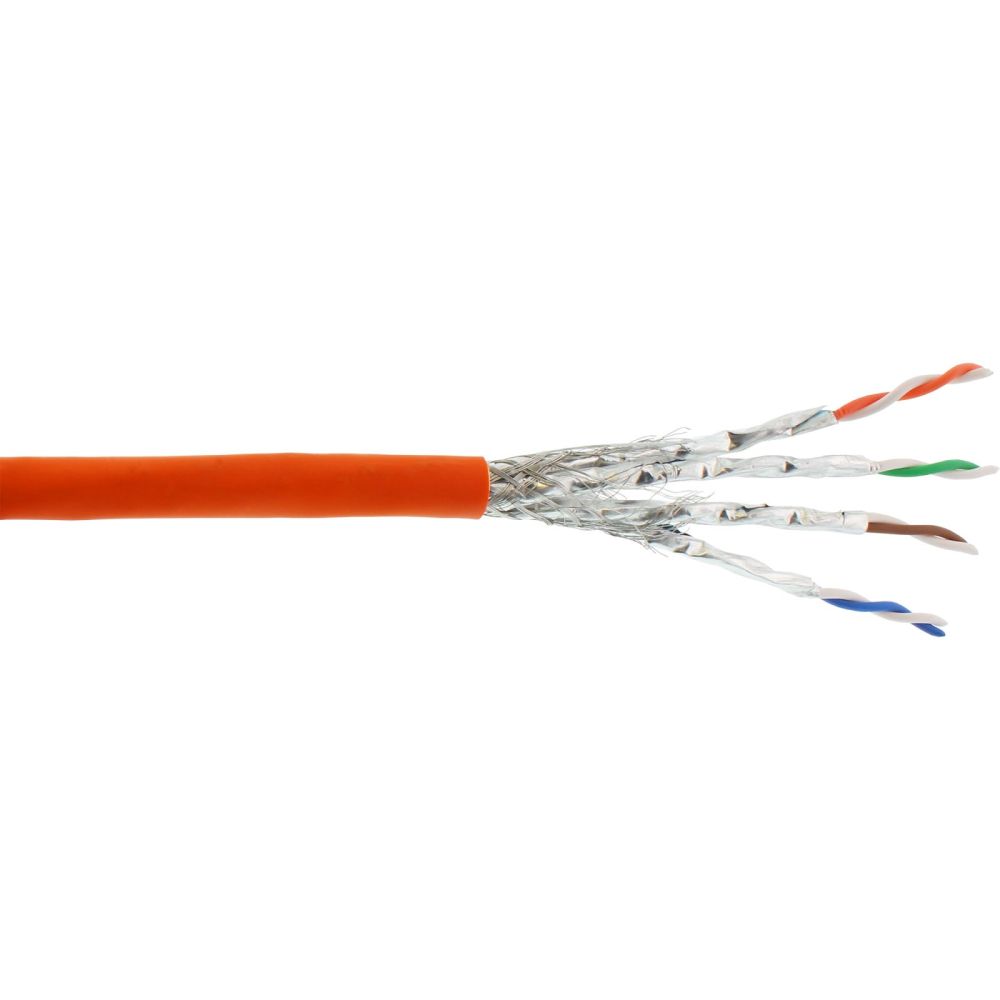

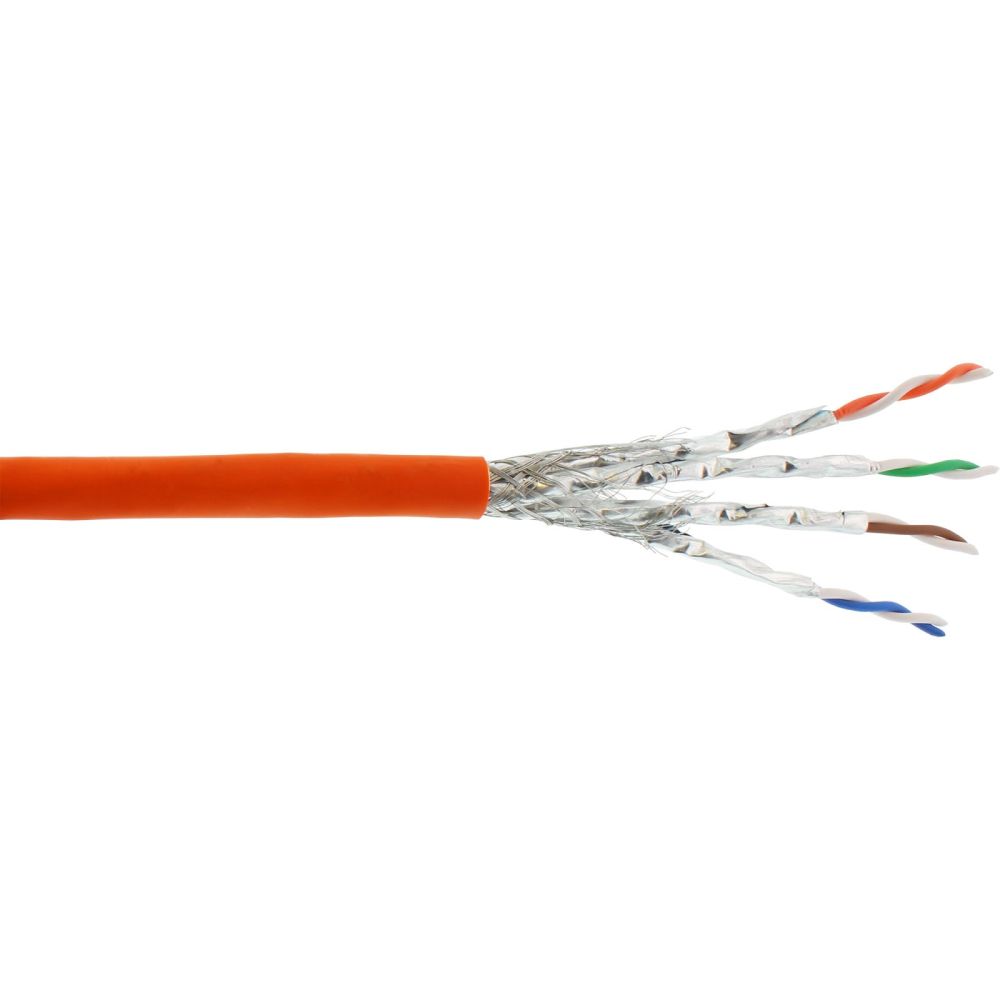

Construction: Paired in metal foil
Overall braided shield
Cable diameter approx. 8.2 mm
Installation temperature: 0 – 50 °C, operating temperature: -20 °C – 60 ° C
With remaining length indicated on the cable
Fire behaviour: Eca in accordance with EN 50575:2014 / A1:2016

Features
Product colour	Orange
Cable length	50 m
Cable standard	Cat7a
Cable shielding	S/FTP (S-STP)
Jacket material	Low smoke zero halogen (LSZH)
Conductor material	Copper
Ethernet interface type	10 Gigabit Ethernet
AWG wire size	23
Data transfer rate	10000 Mbit/s
Frequency	1200 MHz
Connector 1
Connector 2
Connector 1 gender
Connector 2 gender
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	0 - 50 °C
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	210 mm
Package depth	330 mm
Package height	335 mm
Package weight	4.22 kg
Package volume	23200 cm³
Sustainability
Doesn't contain	Halogen
Technical data
Variant	CU, halogen-free
Height packaging	0.335m
Article length	5000.00cm
Colour	Orange
Packaging volume	0.0232m³
Length packaging	0.330m
Side A	Without plug
Data transmission rate	10Gb/s
NVP value	76%
Outer diameter	8.2mm
Signal	Network
Type	Cat.7A
Width packaging	0.210m
Diameter	AWG 23
Side B	Without plug
Net weight	3.665kg
Operation temperature	-20 to +60°C
Shielding	S/FTP (PiMf)
Weight	4.221kg
Length	50m
PoE/PoE+/PoE++
UL
Weight & dimensions
Depth	50000 mm
Weight	3.67 kg

---
