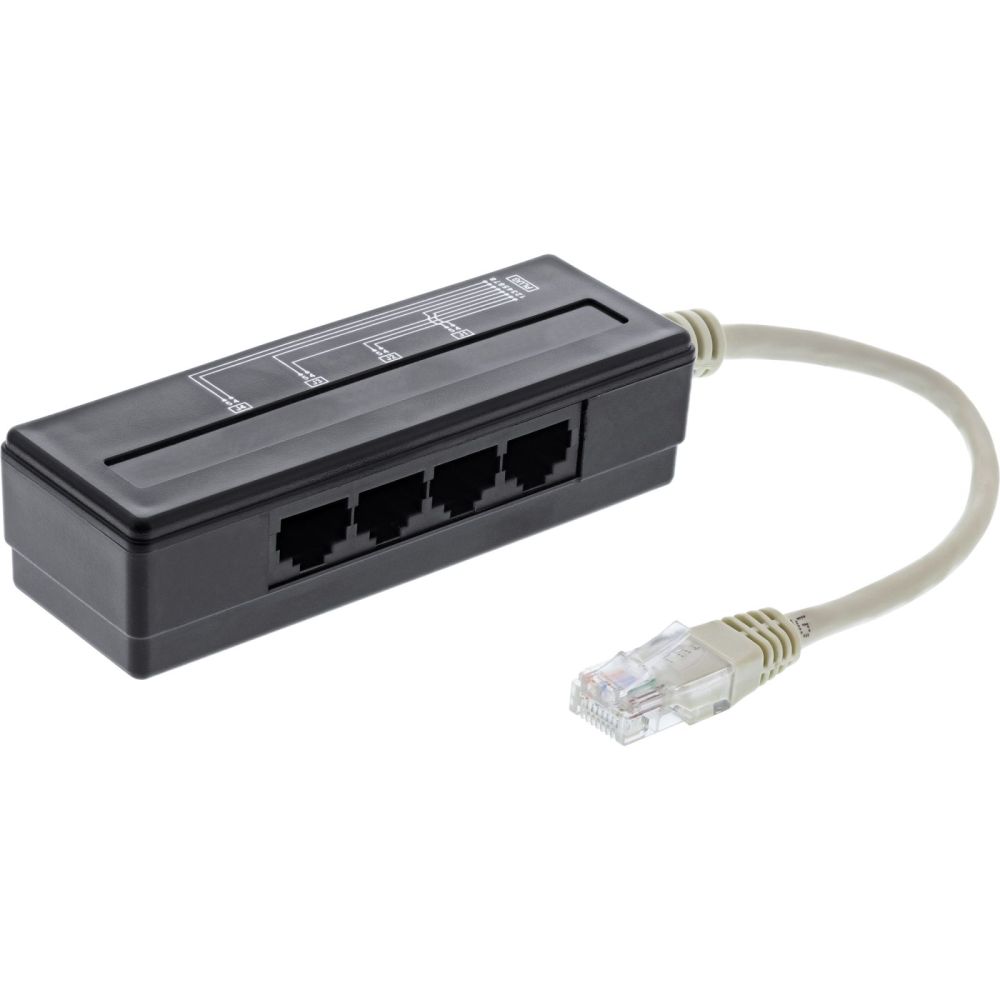

InLine® 4-way telephone port splitter, RJ45 plug to 4x RJ45 socket, 0.15m content_copy

Use four 2-wire telephone connections via one RJ45 socketFour connections from one socket: Distributes an existing RJ45 connection to 4 RJ45 sockets for 2-wire telephones.
Continue using existing infrastructure: Connection to the telephone system via structured cabling without new installation.
Simple plug-in installation: Insert the RJ45 plug, connect devices to 4 sockets.
Clear pin assignment per port: 2-wire on pins 4/5 on each socket makes identification and service easier.
The 4-way telephone port splitter enables the distribution of one RJ45 connection to four RJ45 sockets. Each socket carries a 2-wire assignment on pins 4/5, so you can connect multiple telephones with 2-wire operation quickly and neatly - without re-cabling.
In professional IT environments, during on-site installations and in service deployments, the adapter supports a clear distribution of extensions over existing infrastructures. Companies and public institutions benefit from short setup times and flexible use of existing RJ45 sockets on patch panels and connection points.
Connection: RJ45 plug to 4x RJ45 socket
Assignment: 2-wire per socket (pins 4/5)
Length: approx. 0.15 m
Outputs: 4 RJ45 sockets

Certificates
Compliance certificates	RoHS
Logistics data
Package volume	300 cm³
Other features
Dimensions (WxDxH)	37 x 285 x 28 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	76 mm
Package depth	160 mm
Package height	32 mm
Package weight	73 g
Performance
Product colour	Multicolour
Ports & interfaces
Cable length	0.15 m
Technical data
Weight	0.073kg
Length packaging	0.160m
Packaging volume	0.0003m³
Article length	28.50cm
Net weight	0.066kg
Side A	RJ45 plug
Colour	Multicolour
Side B	RJ45 female x4
Article height	2.80cm
Height packaging	0.036m
Article width	3.70cm
Width packaging	0.076m
Weight & dimensions
Width	37 mm
Depth	285 mm
Height	28 mm
Weight	66 g

---
