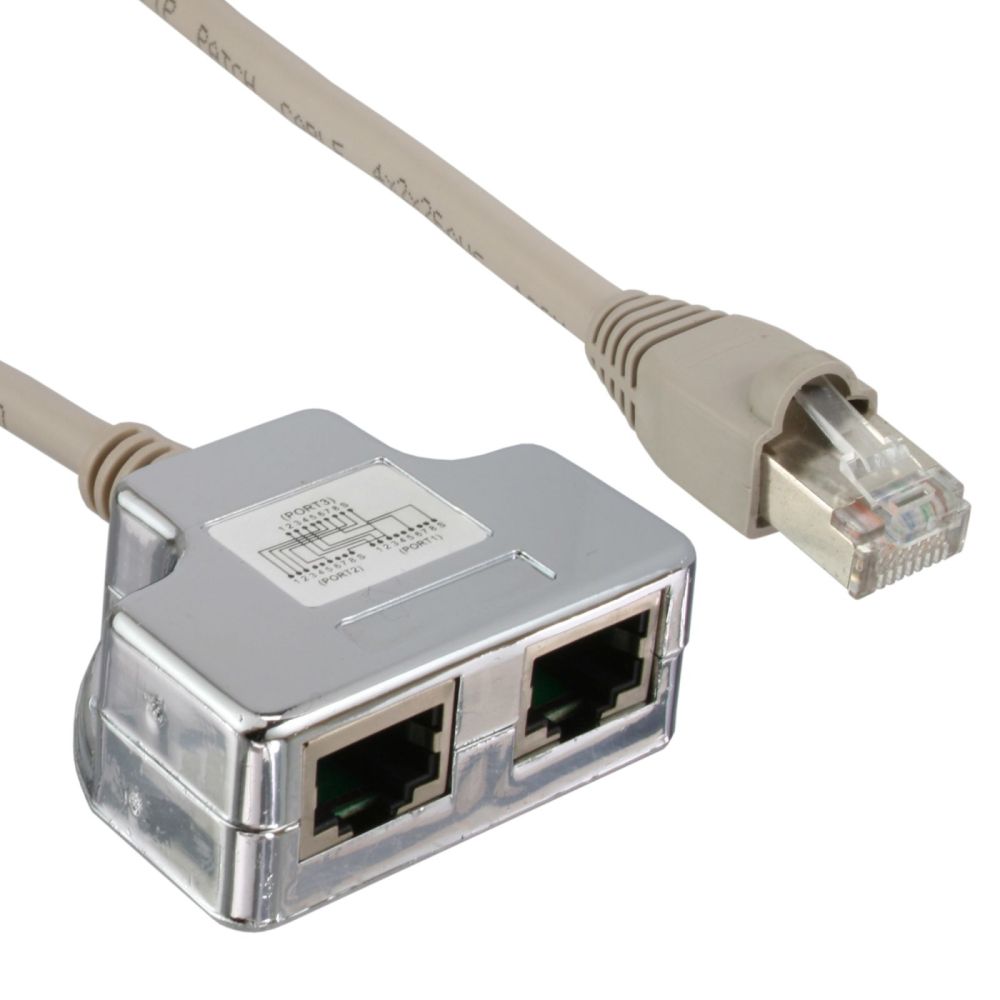

InLine® Cat.5e Splitter two different connections via one RJ45 8P8C Patch Cable content_copy

Use two 10/100 Mb/s ports over a single cableDual network connection without new cabling: Combine two 10/100 Mb/s connections over an existing cable.
Simple port splitting at the outlet: RJ45 plug leads to 2x RJ45 sockets.
Robust and compact for everyday use: Metallized plastic housing and short 0.15 m lead.
Designed for Cat.5e cabling: Implement cable sharing in structured networks.
With this Cat.5e T-adapter you implement cable sharing: Two 10/100 Mb/s Ethernet connections run over an existing twisted-pair cable. Plug the RJ45 plug into a wall outlet or patch panel, the two RJ45 sockets provide two separate ports. At the other end of the cable, a second identical adapter splits the signals again so that both devices are connected as usual.
This facilitates expansions in existing infrastructures, especially in on-site installations and service deployments when additional connections are needed at short notice. In professional IT environments of companies and public institutions, additional port capacity is quickly available without planning structural modifications.
Connection: 1x RJ45 plug to 2x RJ45 sockets
Standard: Cat.5e
Application: 10/100 Mb/s cable sharing
Length: 0.15 m
Housing: plastic, metallized
Color: silver

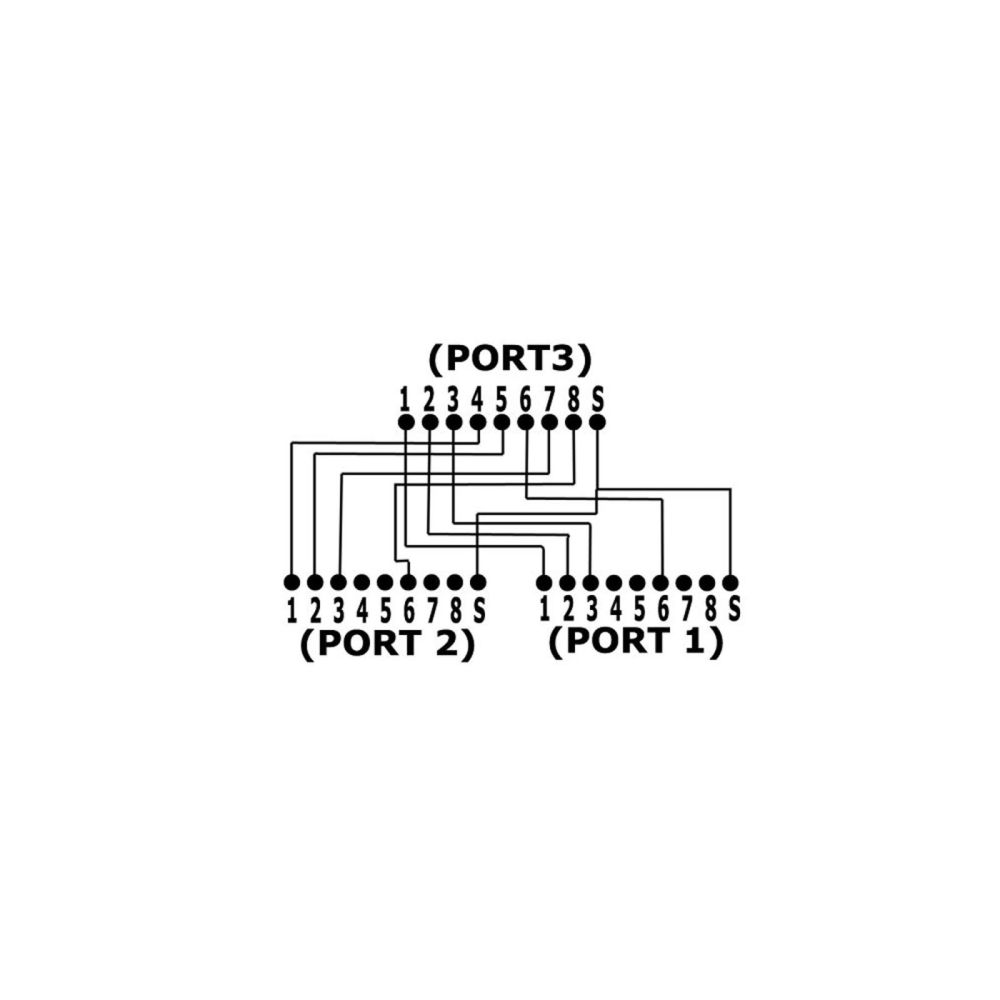

Pin assignment: Plug-Socket1-Socket2: 1-1-0, 2-2-0, 3-3-0, 4-0-1, 5-0-2, 6-6-0, 7-0-3, 8-0-6
Note: Two adapters are required for the connection

Logistics data
Package volume	300 cm³
Packaging data
Package width	100 mm
Package depth	140 mm
Package height	21 mm
Package weight	46 g
Performance
Product colour	Silver
Ports & interfaces
Cable length	0.15 m
Technical data
Type	Cat.5e
Article length	15.00cm
Height packaging	0.021m
Variant	Plastic housing metallized
Colour	Silver
Net weight	0.039kg
Side A	RJ45 female
Width packaging	0.100m
Signal	Network
Packaging volume	0.0003m³
Length packaging	0.140m
Side B	RJ45 plug
Weight	0.046kg
Length	0.15m
UL
Weight & dimensions
Depth	150 mm
Weight	39 g

---
