InLine® Patch Cable Coupling UTP 2x RJ45 female for installation
|
4,09 EUR |
|||||||||||
|
( 4,87 EUR incl. VAT ) ≈ £3.42 | ≈ $4.58 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >1000 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 22195736 | ||||||||||
| Mfg Part No: | 69990Y | ||||||||||
| UPC/EAN: | 4043718261352 | ||||||||||
| Weight: | 0.015 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline 69990Y:
Straight-through 1:1 pinout: Connect two RJ45 patch cables into a stable link.
Standards-compliant Cat.6 transmission: Meets ISO/IEC 11801:2002 Class E, ISO/IEC EN 50173 Class E and EIA/TIA 568-C.
PoE/PoE+ over the same cable: Combine power and data according to IEEE 802.3af/at.
UTP version for unshielded installations: Slim cable routing without additional shielding.

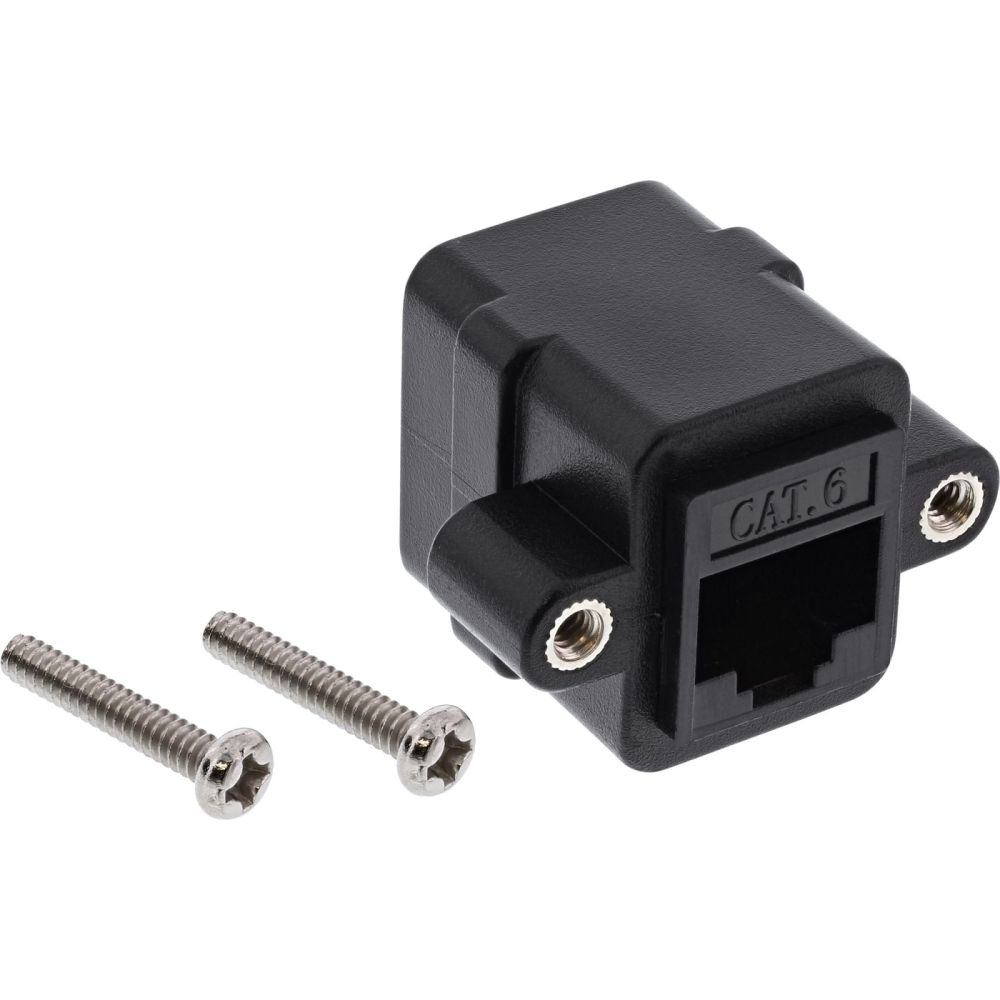

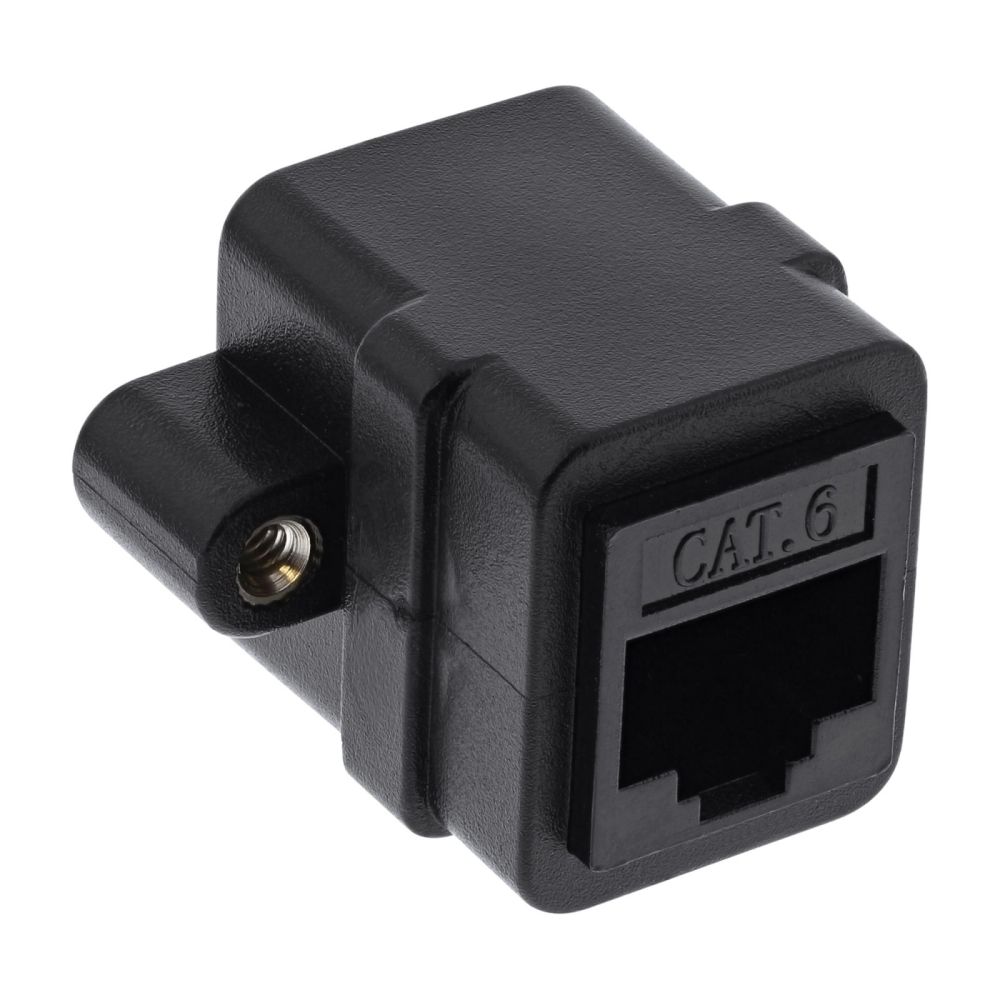

The panel-mount patch cable coupler reliably connects two RJ45 patch cables and creates a clean feed-through in panels or enclosures. The 1:1 pinout enables direct signal routing in Cat.6 networks, while PoE and PoE+ according to IEEE 802.3af/at are supported. This allows you to extend existing cabling neatly and without complex modification.
In professional IT environments, during on-site installations and in service deployments, the coupler facilitates tidy panel mounting and retrofit in existing infrastructures of companies and public institutions. The defined threaded mounting and the operating temperature range of 10-60 °C support reliable use in racks, control cabinets, and device front panels.
Connection: 2x RJ45 sockets
Standard: Cat.6
Standards: ISO/IEC 11801:2002 Class E; ISO/IEC EN 50173 Class E; EIA/TIA 568-C
Shielding: UTP
Pinout: 1:1
PoE support: IEEE 802.3af, IEEE 802.3at
Mounting cutout: approx. 16 x 16 mm
Hole spacing: approx. 25 mm
Screws: #4-40, thread length approx. 15 mm
Operating temperature: 10-60 °C
Storage: -40-70 °C
Color: Black
| Logistics data | |
| Package volume | 100 cm³ |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Packaging data | |
| Package width | 32 mm |
| Package depth | 32 mm |
| Package height | 29 mm |
| Package weight | 15 g |
| Performance | |
| Product colour | Black |
| Cable types supported | Cat6 |
| Ports & interfaces | |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Female |
| Connector 2 gender | Female |
| Ethernet LAN data rates | 10000 Mbit/s |
| Technical data | |
| Width packaging | 0.032m |
| Weight | 0.015kg |
| Length packaging | 0.032m |
| Side B | RJ45 female |
| Height packaging | 0.029m |
| Colour | Black |
| Packaging volume | 0.0001m³ |
| Side A | RJ45 female |
| Net weight | 0.013kg |
| Technical details | |
| Type | Network transmitter |
| Weight & dimensions | |
| Width | 16 mm |
| Height | 16 mm |
| Weight | 13 g |
Questions & answers
What is the delivery time of InLine® Patch Cable Coupling UTP 2x RJ45 female for installation?
The article InLine® Patch Cable Coupling UTP 2x RJ45 female for installation is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 69990Y to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® Patch Cable Coupling UTP 2x RJ45 female for installation always at the best possible price. We can give you a discount of 2% on InLine® Patch Cable Coupling UTP 2x RJ45 female for installation if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 pieces of InLine® Patch Cable Coupling UTP 2x RJ45 female for installation we can offer you a price of 4,06 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
