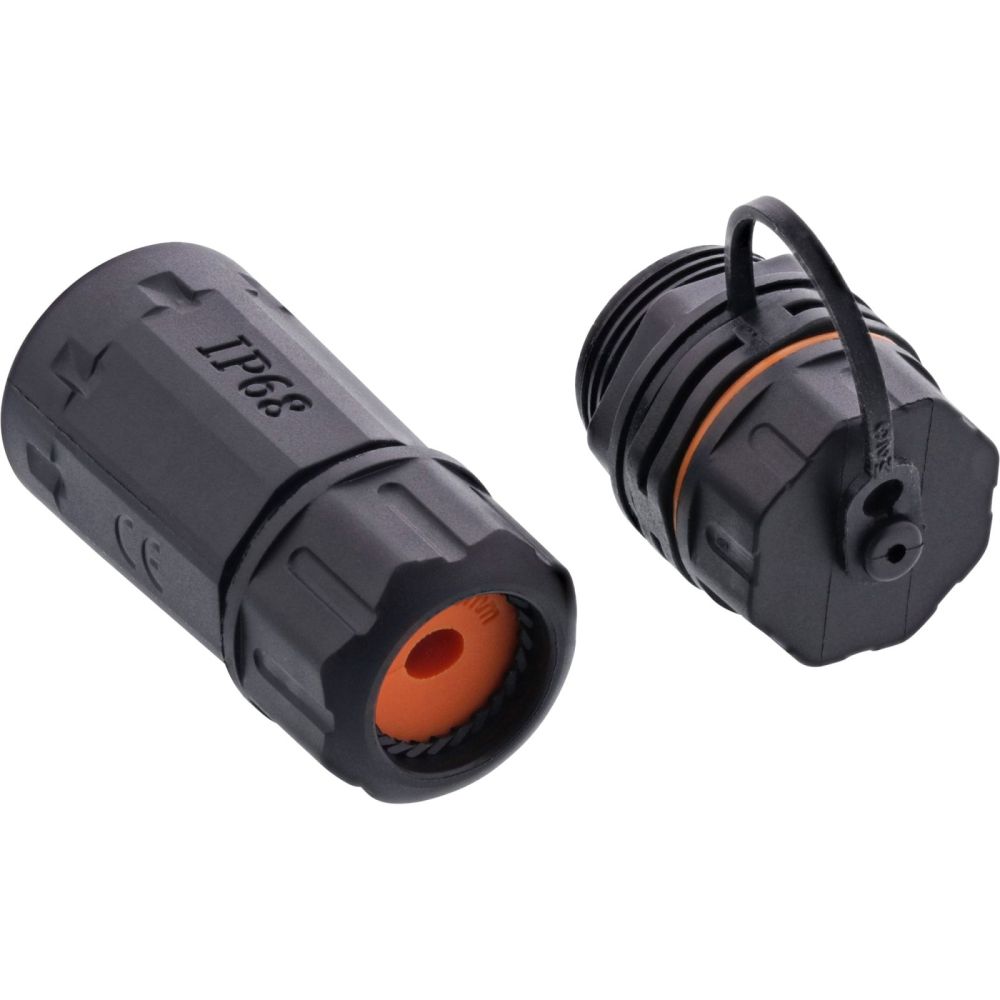

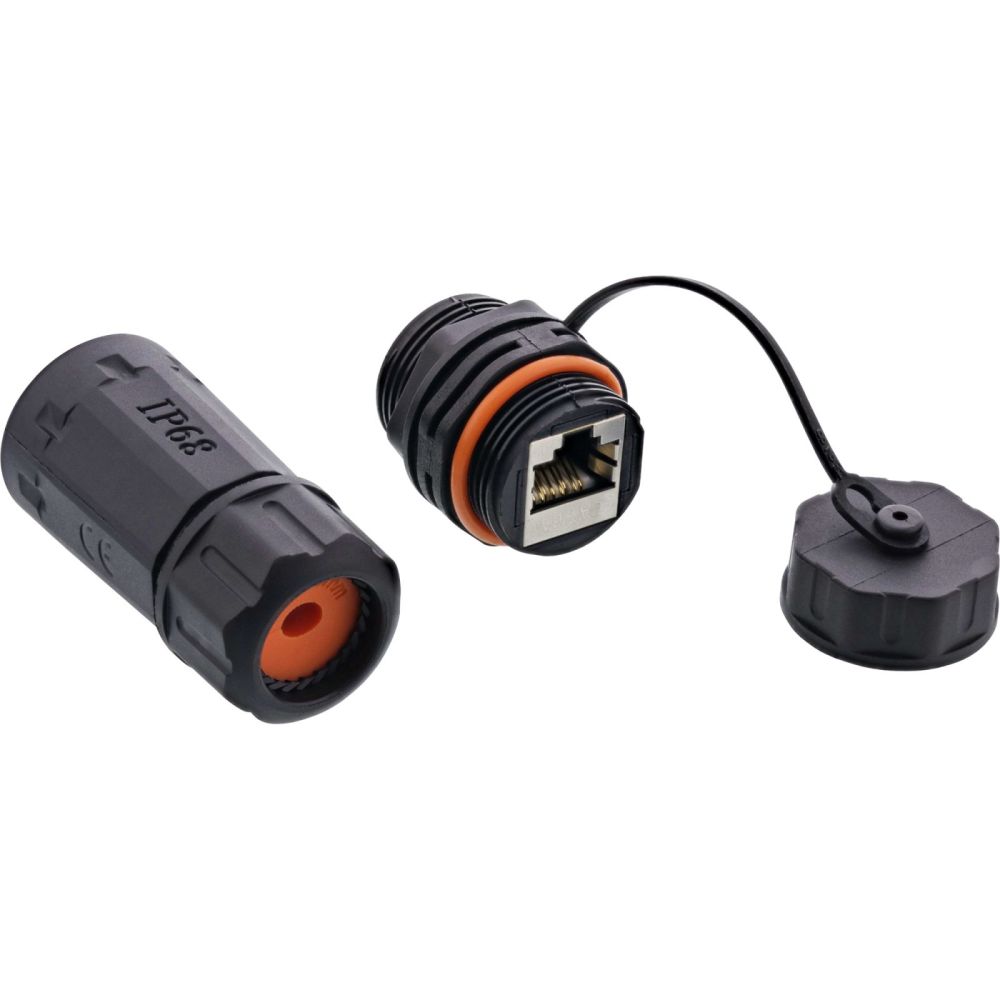

InLine® Patch cable coupling, RJ45 Cat.6A, IP68, for industry, with dust cap content_copy

Waterproof to IP68: Optimal protection against water and dirt for reliable outdoor network connections.
UV-resistant, robust housing: Ideal for use in harsh environments and at extreme temperatures from -40 °C to 85 °C.
Compatible with standard RJ45 patch cables: Supports cable diameters from 3 to 8 mm for flexible applications.
High network performance up to 10Gb/s: Supports modern applications with high data transfer rates – stable and loss-free.
Easy-to-install M25 thread: Tool-free, secure screw connection for quick and permanent use in the field.
With the InLine RJ45 Cat.6A patch cable coupling, you can safely take your network outdoors – no matter whether it's raining, stormy or the sun is beating down. The robust coupling with IP68 certification reliably protects your connection from water, dust and extreme temperatures from -40 °C to 85 °C.
Are you planning to connect an outdoor camera or an access point, or do you simply want to connect two LAN cables in a weatherproof manner? Then this solution is just right for you. The high-quality coupling made of UV-resistant material can withstand continuous stress – ideal for the garden, workshop, carport, or industrial environment.
Easy to install thanks to its M25 thread and compatible with standard RJ45 patch cables from 3 to 8 mm in diameter, the coupling also impresses from a technical standpoint: with up to 10 Gb/s, you are at the cutting edge of network technology. The 1:1 assignment enables loss-free data transmission – ideal for streaming, control systems, and outdoor network technology.
Rely on a solution that delivers what it promises – for stable connections, exactly where you need them.
Contact resistance: Connection type: 1:1

Logistics data
Package volume	500 cm³
Other features
Dimensions (WxDxH)	30 x 80 x 30 mm
Packaging data
Package width	90 mm
Package depth	150 mm
Package height	30 mm
Package weight	39 g
Performance
Product colour	Black
Ports & interfaces
Connector 1	RJ45 female
Connector(s)	RJ-45
Technical data
Article length	8.00cm
Packaging volume	0.0005m³
Max. supported data transfer rate	10Gb/s
Width packaging	0.090m
Article width	3.00cm
Height packaging	0.030m
Wire pairs used for power transmission	The specific method used is determined by the PSE (Power Sourcing Equipment)
Side A	RJ45 female
Weight	0.039kg
Article height	3.00cm
Signal	Network
Length packaging	0.150m
Max. supported power	60W
Colour	Black
Variant	IP68
Net weight	0.036kg
Max. supported PoE standard	802.3bt
Side B	RJ45 female
UL
Weight & dimensions
Width	30 mm
Depth	80 mm
Height	30 mm
Weight	36 g

---
