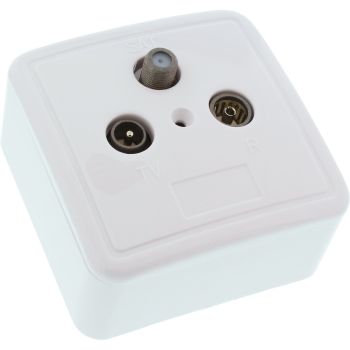

InLine® Antenna socket shielded AP/UP - Set content_copy

Flexible, shielded antenna terminal outlet for TV, radio, and SATInterference-resistant signal distribution: Shielded design reduces ingress on TV, radio, and SAT signals.
Flexible installation: Can be surface- or flush-mounted.
Designed for end connections: Terminal outlet without through-feed.
Wide frequency range: Supports TV 5-860 MHz, radio 88-860 MHz, and SAT 950-2400 MHz including special channel and return channel.
This shielded antenna terminal outlet reliably connects TV, radio, and SAT lines at an end point. It can be mounted as a surface- or flush-mount solution and supports analog as well as digital signals within the specified frequency range, including special channel and return channel.
In on-site installations, service deployments, and existing infrastructures of companies and public institutions as well as residential buildings, the outlet enables a structured, neat implementation of the home distribution and simplifies expansions without unnecessary effort.
Design: Terminal outlet (not a pass-through outlet)
Shielding: Shielded
Mounting type: Surface-mount or flush-mount
Application range: CATV and SAT systems, digital broadcasting
Special channel/return channel: Suitable
Frequency range TV: 5-860 MHz
Frequency range Radio: 88-860 MHz
Frequency range SAT: 950-2400 MHz
Scope of delivery: Mounting screws

Design
Product colour	White
Frame
Features
Socket type	SAT + TV + Radio
Sockets quantity	3
Modules quantity (max)	1 module(s)
Packaging data
Package width	80 mm
Package depth	80 mm
Package height	45 mm
Package weight	140 g
Package volume	300 cm³
Technical data
Weight	0.140kg
Type	Surface- or flush-mounted
Article height	4.50cm
Packaging volume	0.0003m³
Net weight	0.080kg
Article width	7.50cm
Width packaging	0.080m
Length packaging	0.080m
Height packaging	0.045m
Article length	7.50cm
Weight & dimensions
Width	75 mm
Depth	75 mm
Height	45 mm
Weight	80 g

---
