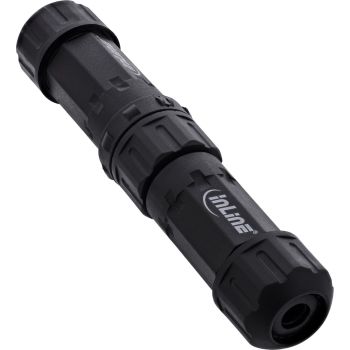

InLine® Mains coupler, IP68, 3-pin, plug/socket, M20, black content_copy

Plug/socket connection with IP68: For 3-wire cables, ideal for modular applications with easy separation and secure protection indoors and outdoors.
High conductivity thanks to gold-plated contacts: Minimizes contact resistance, protects against corrosion, and ensures a durable connection even with frequent use.
Securely connected in all weather conditions: Robust housing with silicone seal and screw caps – protection against water, dust, and mechanical influences.
Suitable for fine cables: Handles cable diameters from 4–14 mm and cross-sections up to 6 mm² – ideal for smaller consumers and control lines.
Easy installation with snap-lock: Securely connect and disconnect plug and socket – perfect for mobile or temporary installations.
The InLine power cable coupler with plug-socket system is the ideal solution for secure, weatherproof, yet detachable power connections. The 2-way version with a 3-pin design is suitable for a wide range of applications – from outdoor lighting and pump systems to mobile power supplies.
With IP68 protection, the connection is permanently sealed against water and dust. Connection is via a screw system with snap-lock – secure, quick, and tool-free installation. The gold-plated copper contacts ensure high conductivity, minimize contact resistance, and guarantee a long-lasting electrical connection – even with frequent disconnection and reconnection.
This coupling is particularly suitable for fine cables with a cross-section of up to 6 mm². The cable diameter can vary between 4 and 14 mm, covering a wide range of applications. The housing is made of robust nylon (PA66) and can withstand temperatures between -40 °C and +105 °C.
Whether in industry, on the campsite, or for garden lighting – this coupling is ideal wherever a detachable, reliable, and weatherproof connection is required. Thanks to the plug-socket principle, devices or cables can be connected flexibly and quickly disconnected if necessary – safely and professionally.
Material: Nylon (PA66)
Thread size: M20
Contact material: Gold-plated copper contacts
Seal: Silicone
Temperature range: -40 °C to +105 °C
IP protection rating: IP68
Cable diameter: 4–14 mm
Conductor cross-section: 0.5–6 mm²
Design: 2-way (plug/socket)
Number of poles: 3-pole
Rated voltage: 500 V
Rated current: 20 A

Certificates
Compliance certificates	TÜV mark, RoHS
Features
Product type	Cable coupler
Product colour	Black
Material	Polyamide, Silicone
Protection features	Dust proof, Waterproof
Connector(s)	Mains coupler, IP68, 3-pin, plug/socket, M20, black
Logistics data
Country of origin	China
Package volume	200 cm³
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	70 mm
Package depth	140 mm
Package height	30 mm
Package weight	74 g
Technical data
Weight	0.074kg
Net weight	0.055kg
Article length	12.50cm
Length packaging	0.140m
Article width	2.80cm
Width packaging	0.070m
Variant	IP68
Side A	3-pin screw connection
Colour	Black
Height packaging	0.030m
Side B	3-pin screw connection
Packaging volume	0.0002m³
Article height	2.80cm
Weight & dimensions
Width	28 mm
Depth	125 mm
Height	28 mm
Weight	55 g

---
