InLine® Mains coupler, IP68, 3-pin, 4-way, M20, black content_copy

Cross distributor for power connections: Quadruple connection for 3-core cables – ideal for structured power distribution outdoors or in damp rooms.
Permanently waterproof: IP68-certified, silicone seal and sturdy nylon housing protect against water, dust, and mechanical stress.
Flexible use: Suitable for cable diameters of 4–14 mm and cable cross-sections of 0.5–6 mm² – rated for up to 500 V and 24 A.
Tool-free installation: Quick screw system with secure hold – ensures a tight, mechanically stable connection without tools.
Ideal for complex installations: Perfect for garden systems, pond pumps, LED systems, or power grids with multiple branches.

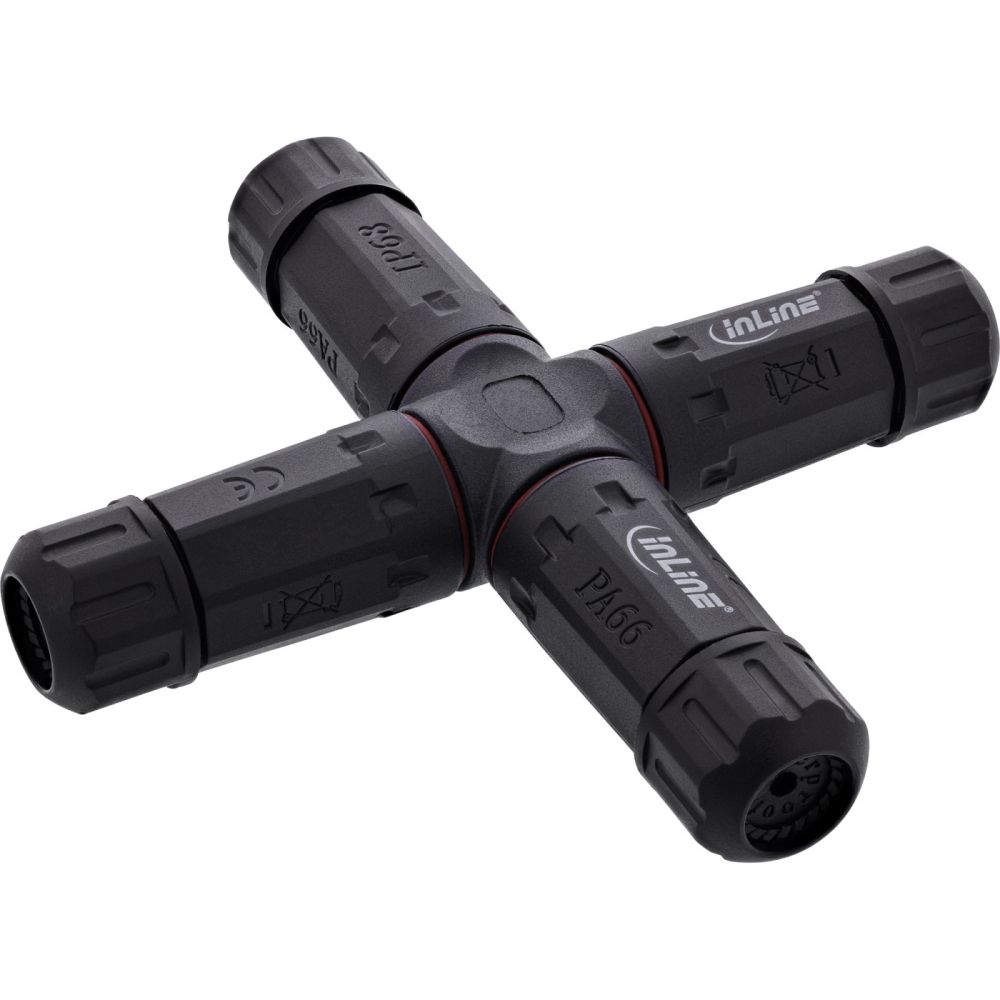

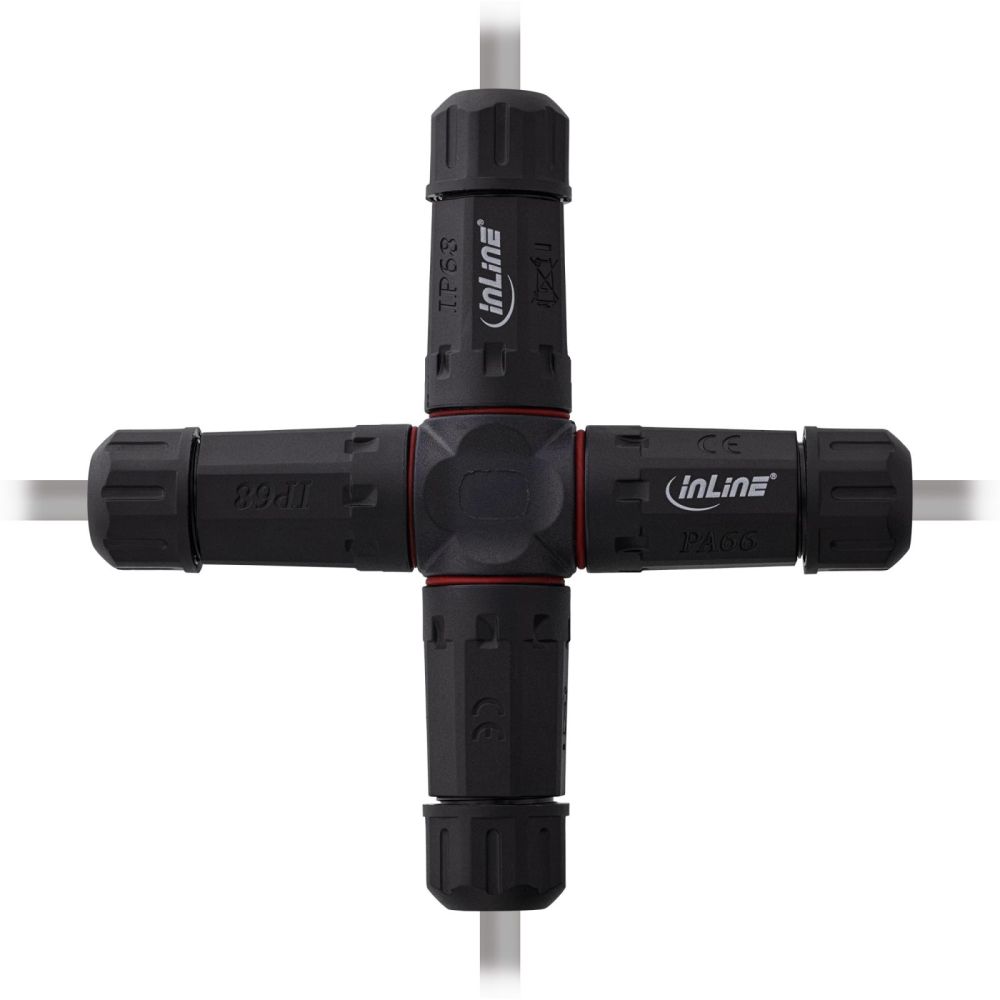

The InLine power cable coupler with 4-way cross distribution is the perfect solution for complex power distribution – whether in private gardens, on construction sites, or in industrial installations. With four separate connection directions for 3-core cables, this coupler is ideal for branched power networks.
The 3-pole connection supports voltages up to 500 V and currents up to 24 A. Thanks to its robust nylon housing (PA66), high-quality copper contacts, and reliable silicone seal, it offers maximum safety and durability – even in adverse weather conditions. The IP68 protection rating ensures permanently tight and weatherproof connections.

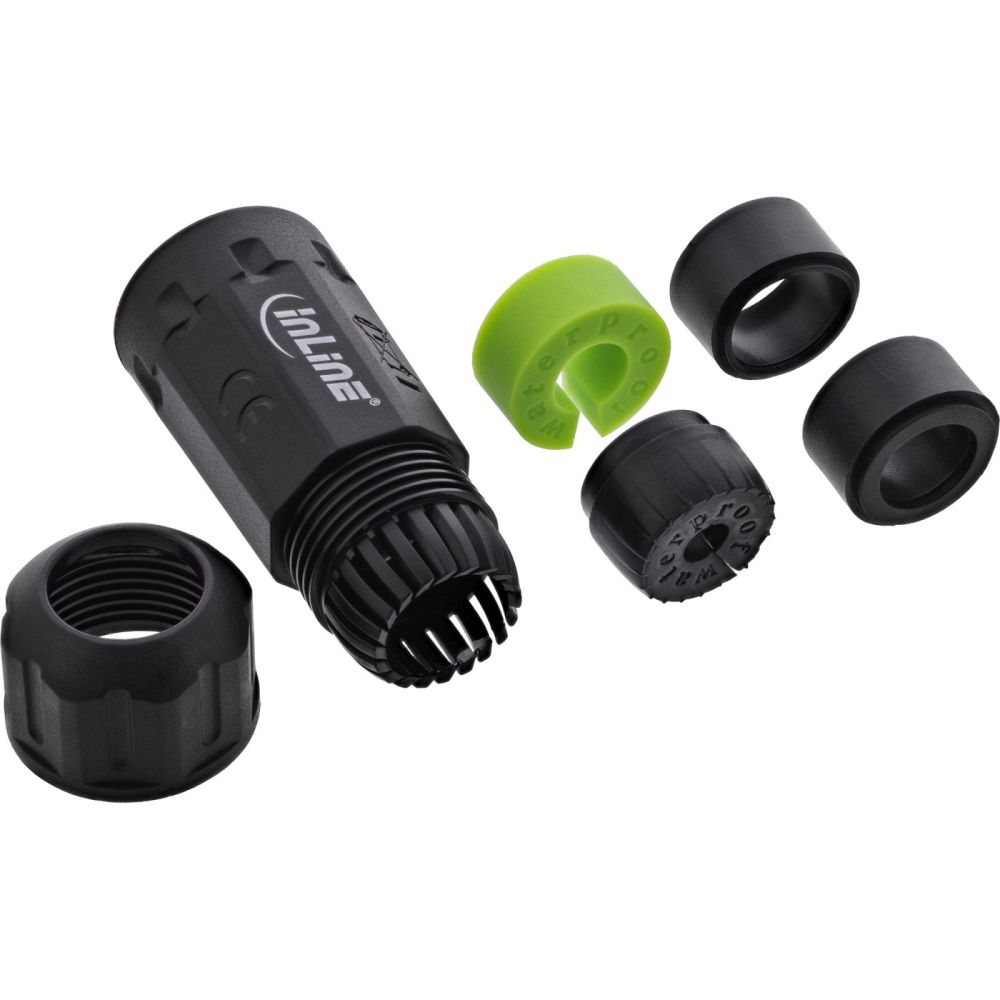

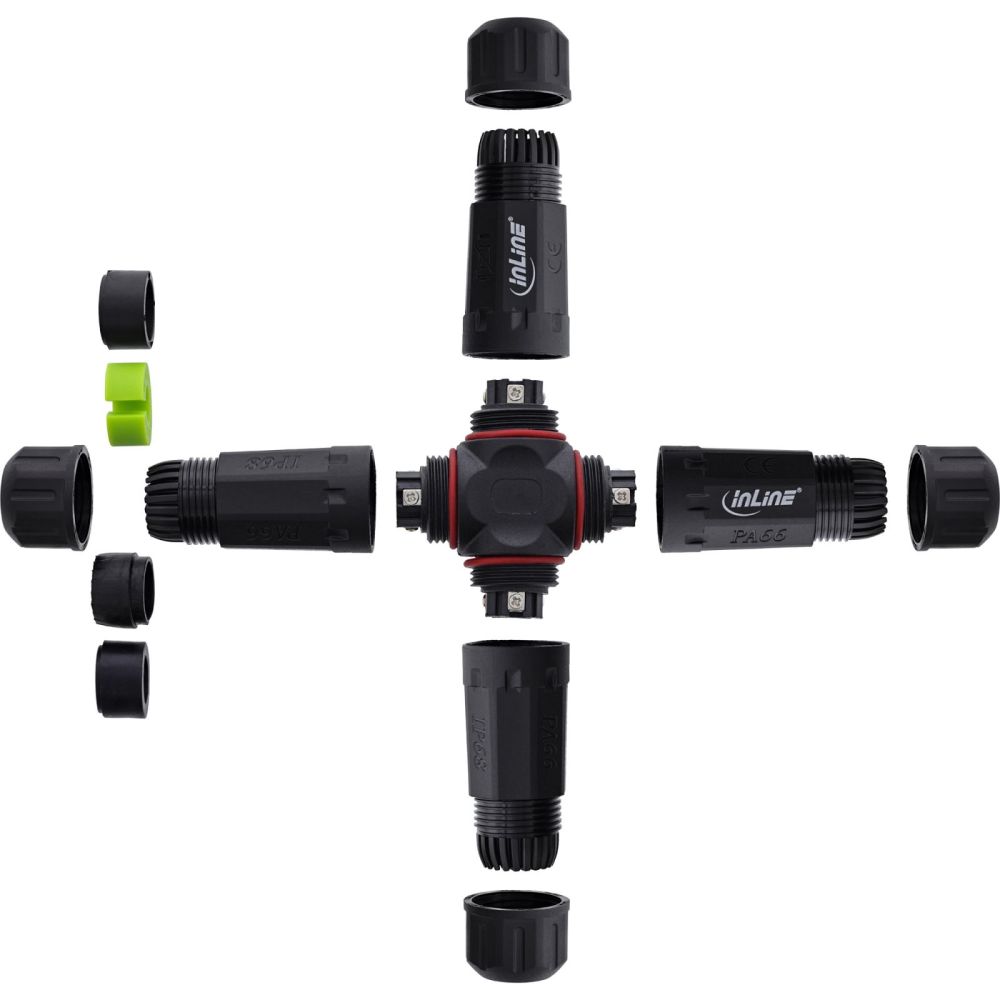

Installation is tool-free thanks to the practical screw cap system. Simply insert the cable, connect it, insert the seal, and tighten the caps – the connection is then mechanically secured and waterproof. The coupling is suitable for cable diameters from 4 to 14 mm and cable cross-sections from 0.5 to 6 mm².
Typical areas of application include garden and outdoor lighting, pond installations, power distribution in workshops, events, or machine parks. The cross shape allows multiple consumers to be supplied with power in a clear and safe manner – ideal for demanding applications.
Material: Nylon (PA66)
Thread size: M20

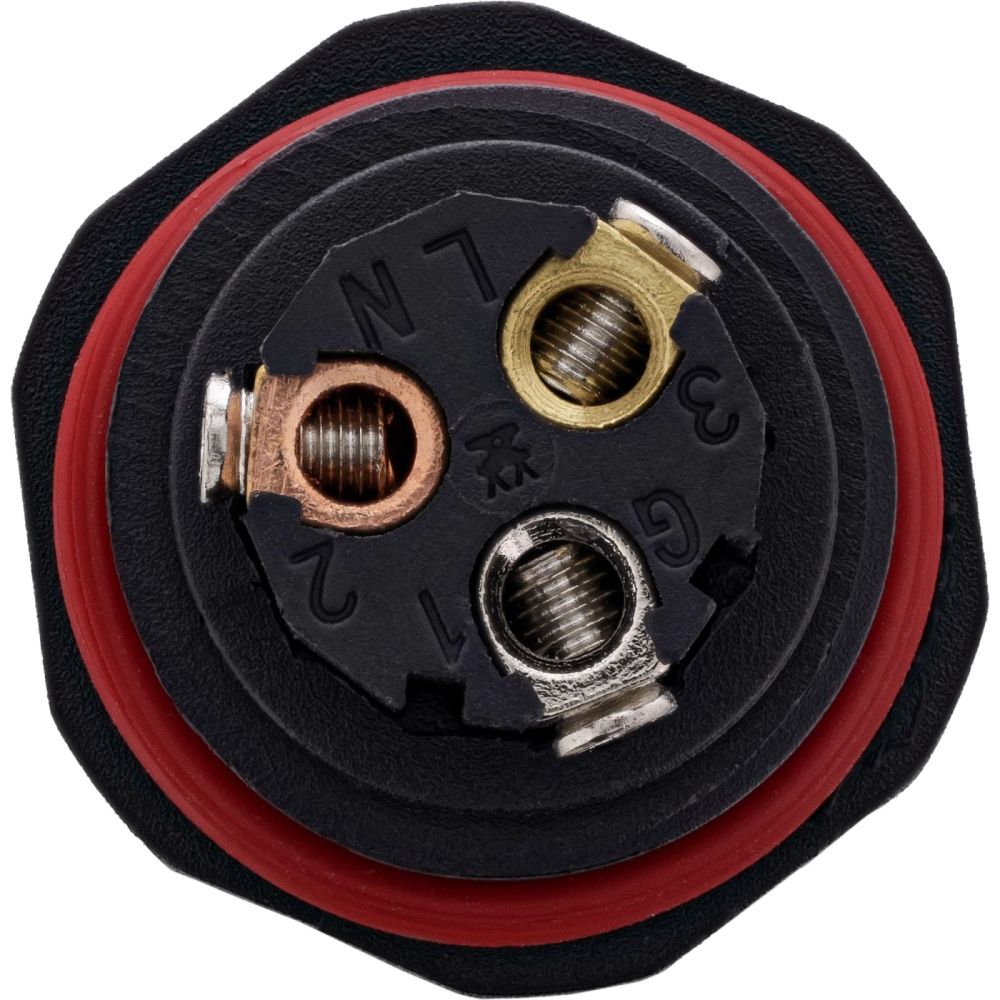

Contact material: Copper
Seal: Silicone
Temperature range: -40 °C to +105 °C
IP protection rating: IP68
Cable diameter: 4–14 mm
Conductor cross-section: 0.5–6 mm²
Design: 4-way
Number of poles: 3-pole
Rated voltage: 500 V
Rated current: 24 A

Certificates
Compliance certificates	TÜV mark, RoHS
Features
Product type	Cable coupler
Product colour	Black
Material	Polyamide, Silicone
Protection features	Dust proof, Waterproof
Connector(s)	Mains coupler, IP68, 3-pin, 4-way, M20, black
Logistics data
Country of origin	China
Package volume	900 cm³
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	150 mm
Package depth	210 mm
Package height	30 mm
Package weight	135 g
Technical data
Packaging volume	0.0009m³
Net weight	0.100kg
Height packaging	0.030m
Article length	13.50cm
Side A	3-pin screw connection
Weight	0.135kg
Variant	IP68
Side B	3-pin screw connection
Colour	Black
Width packaging	0.150m
Article height	2.50cm
Length packaging	0.210m
Article width	13.50cm
Weight & dimensions
Width	135 mm
Depth	135 mm
Height	25 mm
Weight	100 g

---
