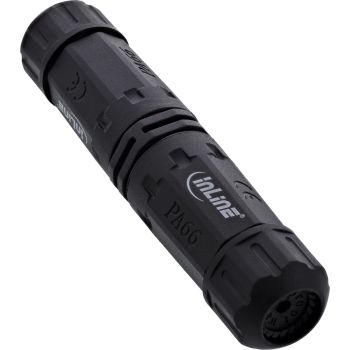

InLine® Mains coupler, IP68, 3-pin, 2-way, M20, black content_copy

Reliable protection against moisture: IP68-certified connection coupling for permanent outdoor use or in damp environments.
Secure power connection: For 3-core power cables with 500 V and up to 32 A – ideal for devices, lights, or installations with high requirements.
Flexible range of applications: Suitable for cable diameters from 4 to 14 mm and cable cross-sections from 0.5 to 6 mm² – versatile for indoor and outdoor use.
Robust design for professionals: Housing made of durable nylon (PA66), silicone seal, and copper contacts ensure durability and reliable contact.
Easy installation without tools: Screw cap system with secure locking mechanism – quick to install, securely connected, ready for immediate use.
The InLine power cable coupling with IP68 certification is the ideal solution for secure power connections indoors and outdoors. Whether for professional use in electrical installations, in industry, or in private settings, this 2-way coupling impresses with its high protection class and robust design. It is perfect for connecting 3-core power cables with a voltage of 500 V and a current of up to 32 A.
The M20 thread and adaptation to cable diameters from 4 to 14 mm make the connector particularly flexible in use. Thanks to the high-quality silicone seal and the precisely manufactured copper contacts, a secure, durable, and waterproof connection is guaranteed – even under extreme conditions. The housing is made of robust nylon (PA66) and can withstand temperatures from -40 °C to +105 °C.
Installation is tool-free thanks to the screw cap system – simply insert the cable, connect it, and close it securely. The coupling is ideal for outdoor lighting, garden installations, pond pumps, carports, machine connections, or temporary installations at events.
Choose a permanently sealed, mechanically stable, and easy-to-install solution – for greater safety with every electrical connection.
Material: Nylon (PA66)
Thread size: M20
Contact material: Copper
Seal: Silicone
Temperature range: -40 °C to +105 °C
IP protection rating: IP68
Cable diameter: 4–14 mm
Conductor cross-section: 0.5–6 mm²
Design: 2-way
Number of poles: 3-pole
Rated voltage: 500 V
Rated current: 32 A

Certificates
Compliance certificates	TÜV mark, RoHS
Features
Product type	Cable coupler
Product colour	Black
Material	Polyamide, Silicone
Protection features	Dust proof, Waterproof
Logistics data
Country of origin	China
Package volume	200 cm³
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	90 mm
Package depth	140 mm
Package height	30 mm
Package weight	68 g
Technical data
Weight	0.068kg
Packaging volume	0.0002m³
Side B	3-pin screw connection
Variant	IP68
Colour	Black
Width packaging	0.090m
Article height	2.80cm
Height packaging	0.030m
Side A	3-pin screw connection
Net weight	0.050kg
Article length	12.00cm
Length packaging	0.140m
Article width	2.80cm
Weight & dimensions
Width	28 mm
Depth	120 mm
Height	28 mm
Weight	50 g

---
