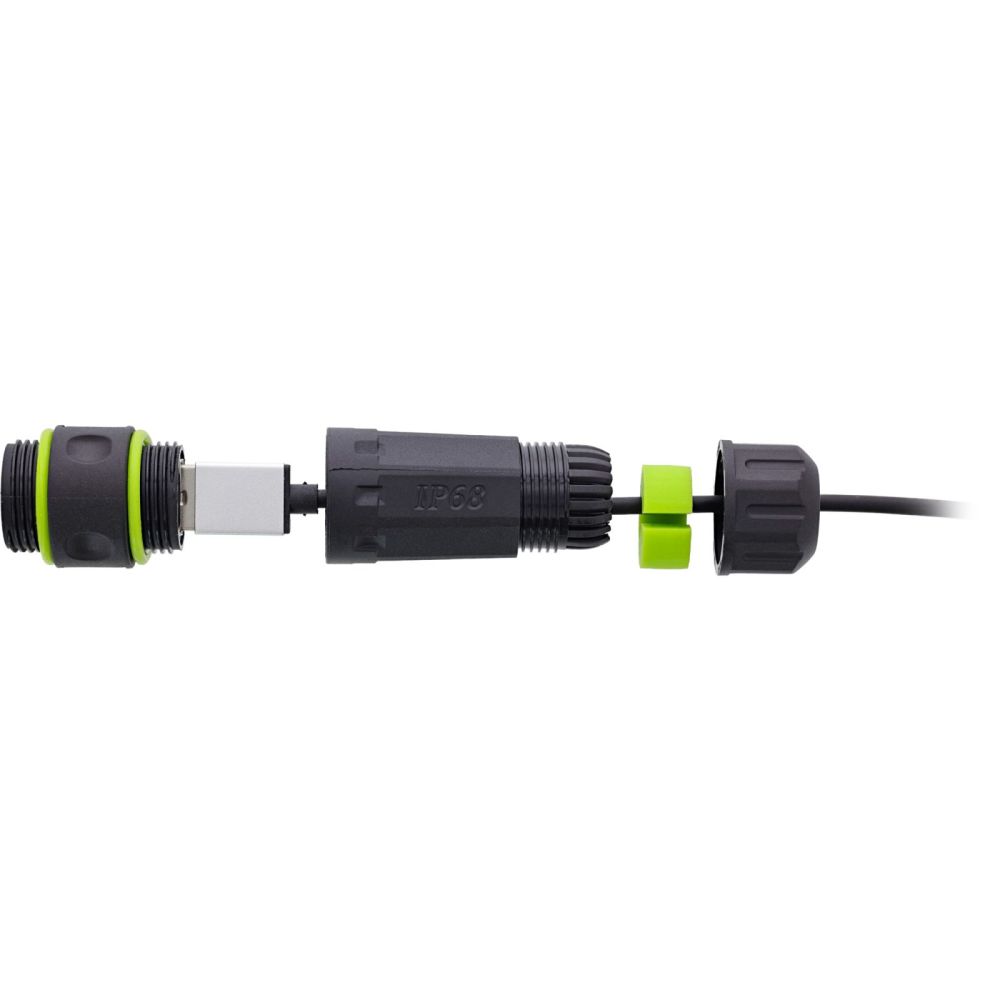

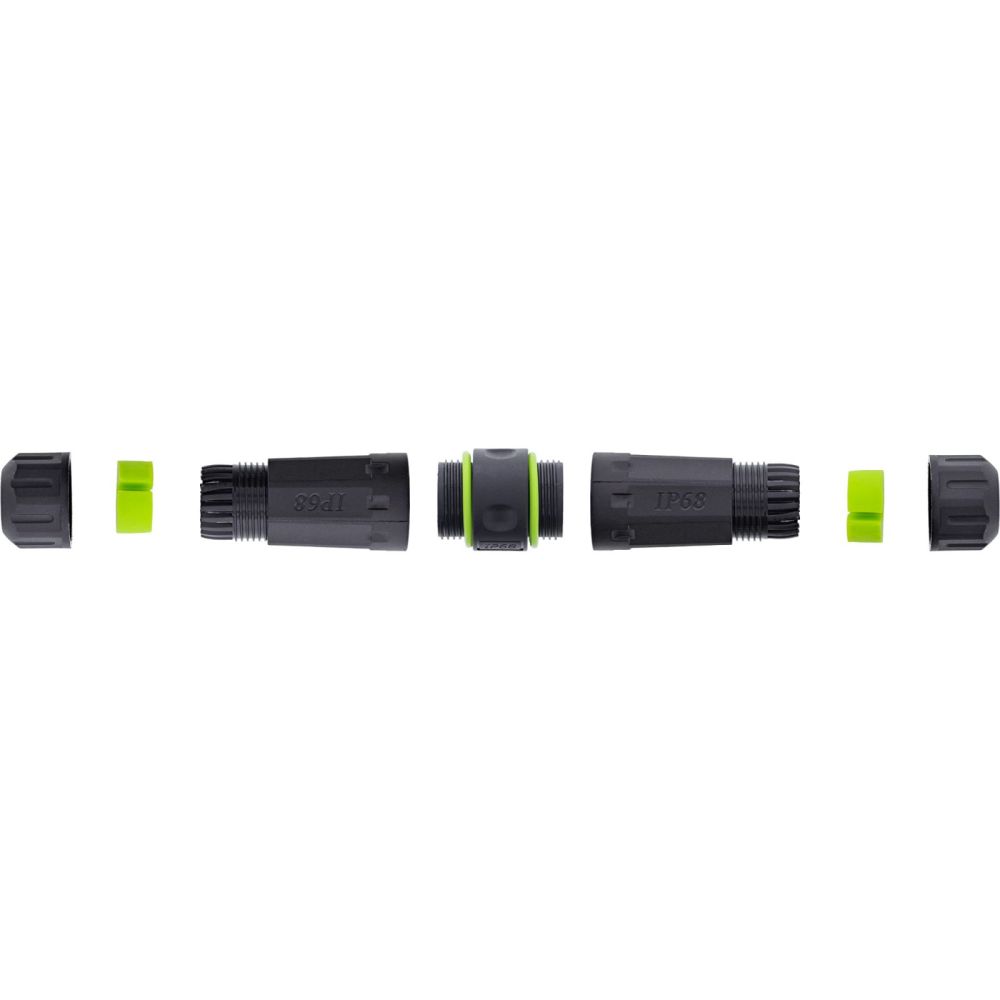

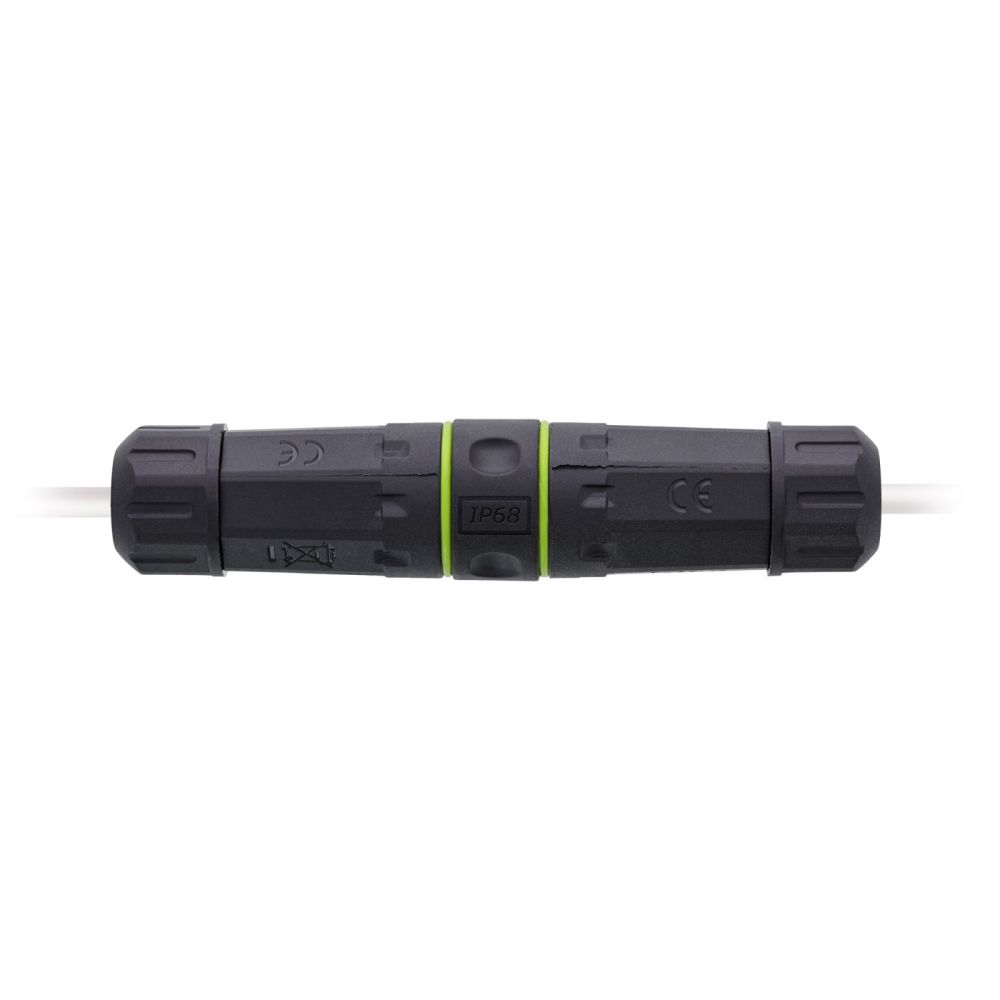

InLine® USB-A coupler, IP68, 2x USB-A socket, shielded, M20 content_copy

USB-A connector for outdoor use: The shielded connector protects your connection from water, dust, and environmental influences thanks to its IP68 protection rating.
Reliable data transfer: Supports transfer rates of up to 5 Gb/s—ideal for industrial and outdoor applications.
Power supply included: Charging function with 5 V / 2 A – suitable for live USB connections.
Compact design with M20 thread: Enables integration into standard housings and distribution systems.
Flexible cable compatibility: Suitable for cable diameters of 1.5–4.5 mm, 4.5–7.5 mm – tool-free installation via silicone seal.
The InLine® USB-A cable coupling with IP68 protection is the robust solution for shielded USB connections in harsh environments. It connects two USB-A cables securely and permanently – ideal for industrial applications, outdoor areas, or measurement and control technology.

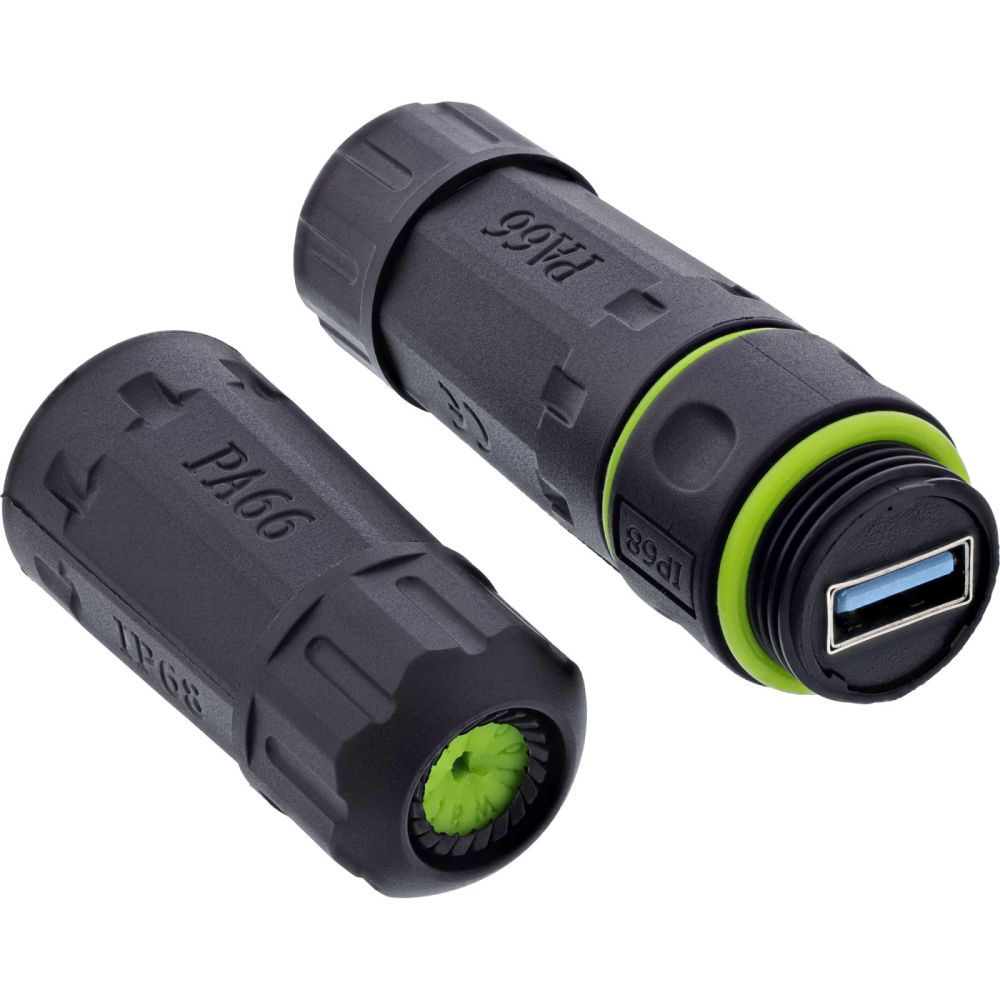

The coupling supports data transfers of up to 5 Gb/s and can simultaneously provide a power supply of 5 V at 2 A – for combined charging and data connections. The robust PA66 housing reliably protects the interface from dust, water, and mechanical stress.
Thanks to its M20 thread, the coupler can be integrated into common housing openings or distribution systems. A flexible silicone seal ensures reliable sealing for cable diameters from 1.5 to 4.5 mm and 4.5 to 7.5 mm. Installation is tool-free and is done by simply screwing it in place.
Whether for connecting embedded systems, supply units, or peripheral devices, the InLine® USB-A coupler ensures that your USB connection is permanently secured and protected.
Material: Nylon (PA66)
Thread size: M20
Module: USB-A female/female
Seal: Silicone
Transfer rate: 5 Gb/s
Current: 2 A
Voltage: 5 V
Charging: yes
Protection rating: IP68
Temperature resistance: -25 °C to +105 °C
Cable diameter: 1.5–4.5 mm, 4.5–7.5 mm

Certificates
Compliance certificates	TÜV mark
Features
Product type	Cable coupler
Product colour	Black
Material	Polyamide, Silicone
Protection features	Dust proof, Waterproof
Logistics data
Country of origin	China
Package volume	200 cm³

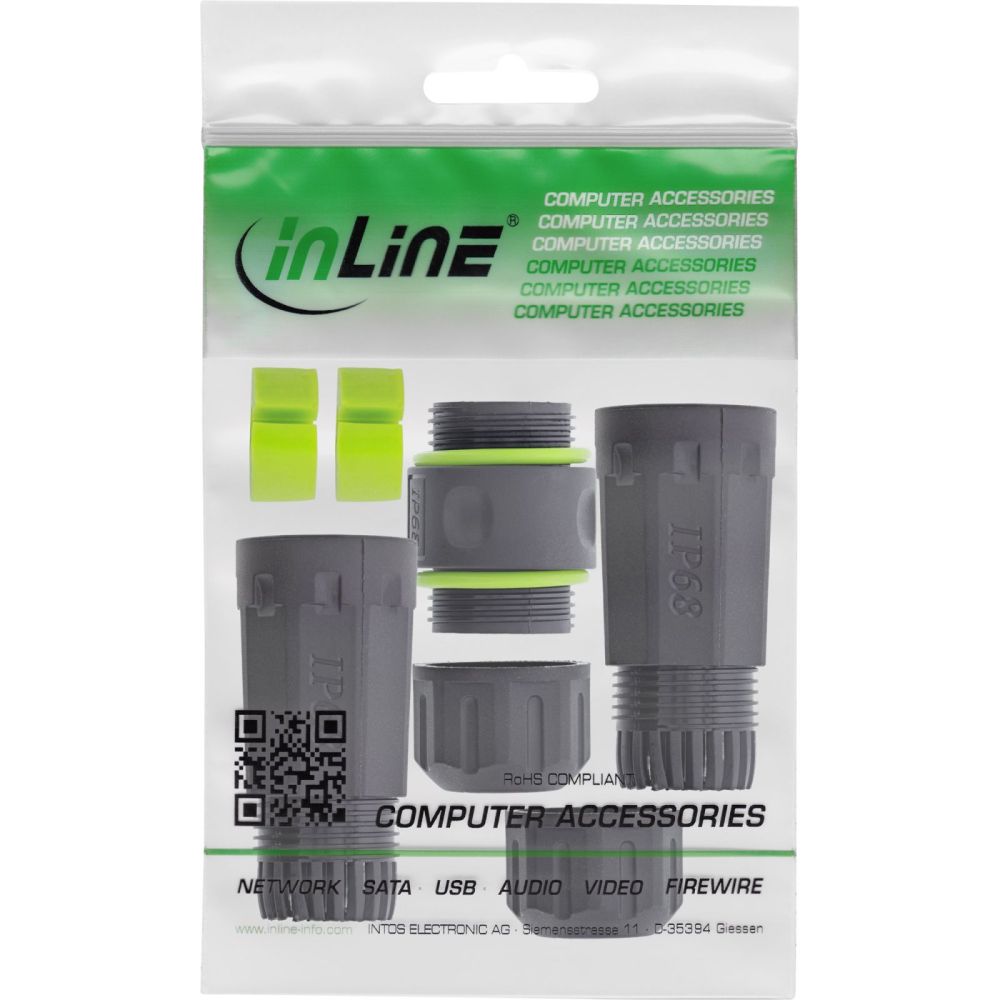

Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	70 mm
Package depth	140 mm
Package height	30 mm
Package weight	54 g
Technical data
Side A	USB-A female
Width packaging	0.070m
Article height	2.50cm
Net weight	0.044kg
Weight	0.054kg
Packaging volume	0.0002m³
Article width	2.50cm
Height packaging	0.030m
Colour	Black
Length packaging	0.140m
Article length	12.50cm
Variant	IP68
Side B	USB-A female
Weight & dimensions
Width	25 mm
Depth	125 mm
Height	25 mm
Weight	44 g

---
