InLine® USB-C coupler, short, IP68, 2x USB-C socket, shielded content_copy

Compact USB-C female connector: Only 74 mm long – ideal for device connections where space is limited.

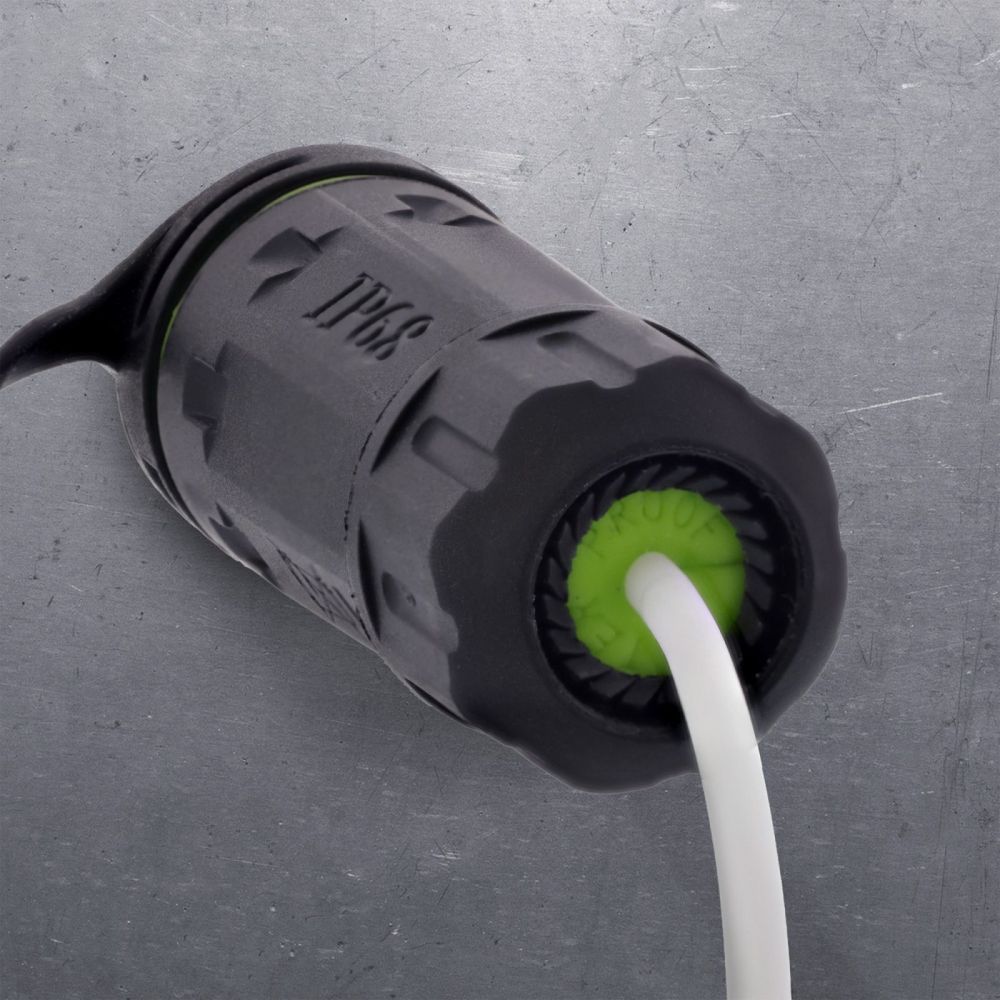

IP68 waterproof: Robust connection, protected against water, dust, and mechanical stress – for outdoor and industrial applications.
Reliable connection: Supports 5 Gb/s data transfer, 2 A current and 5 V voltage – ideal for data and charging applications.
Shielded housing: Reduces electromagnetic interference – for stable signal quality in EMC-critical environments.
Simple, secure installation: With screw connection and seal – can be mounted without tools, vibration and weather resistant.

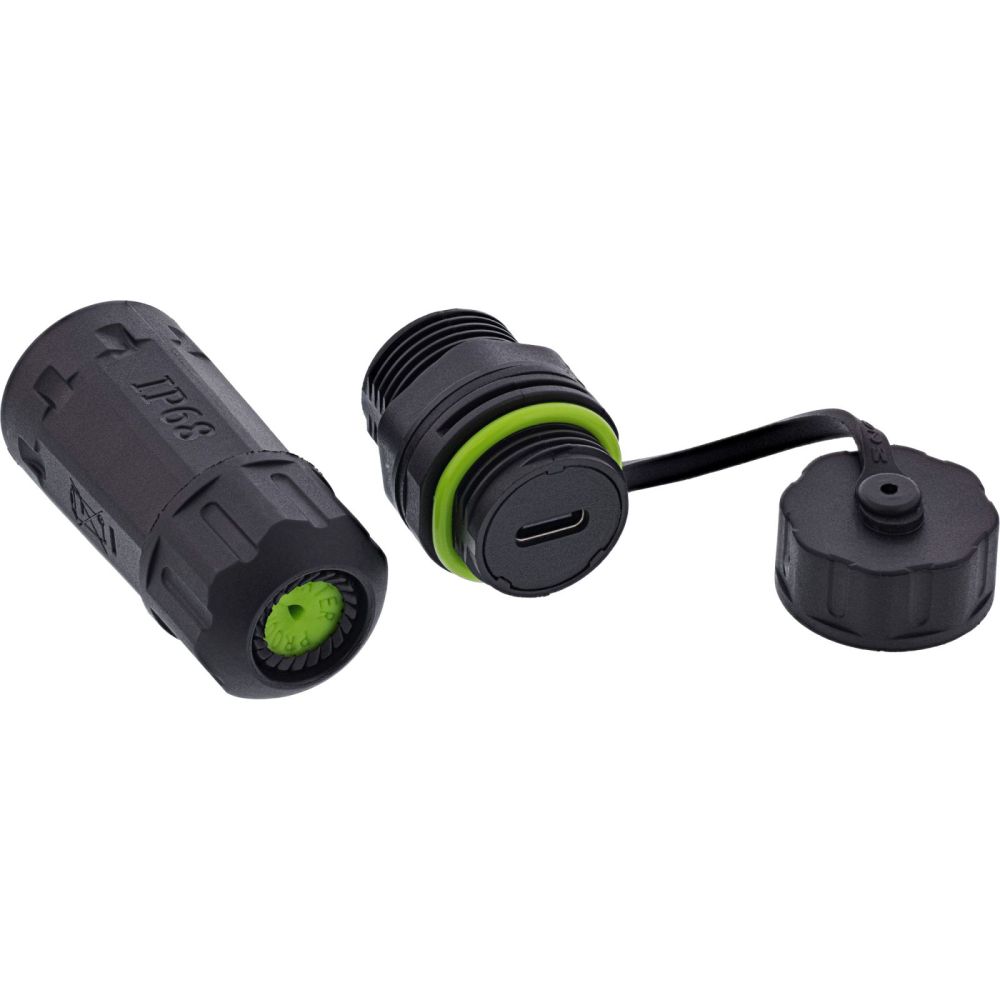

The compact InLine® USB-C cable coupling with
IP68 protection has been specially developed for applications where a reliable USB-C connection is required in confined spaces – for example, in distribution boxes, industrial enclosures or outdoor installations.

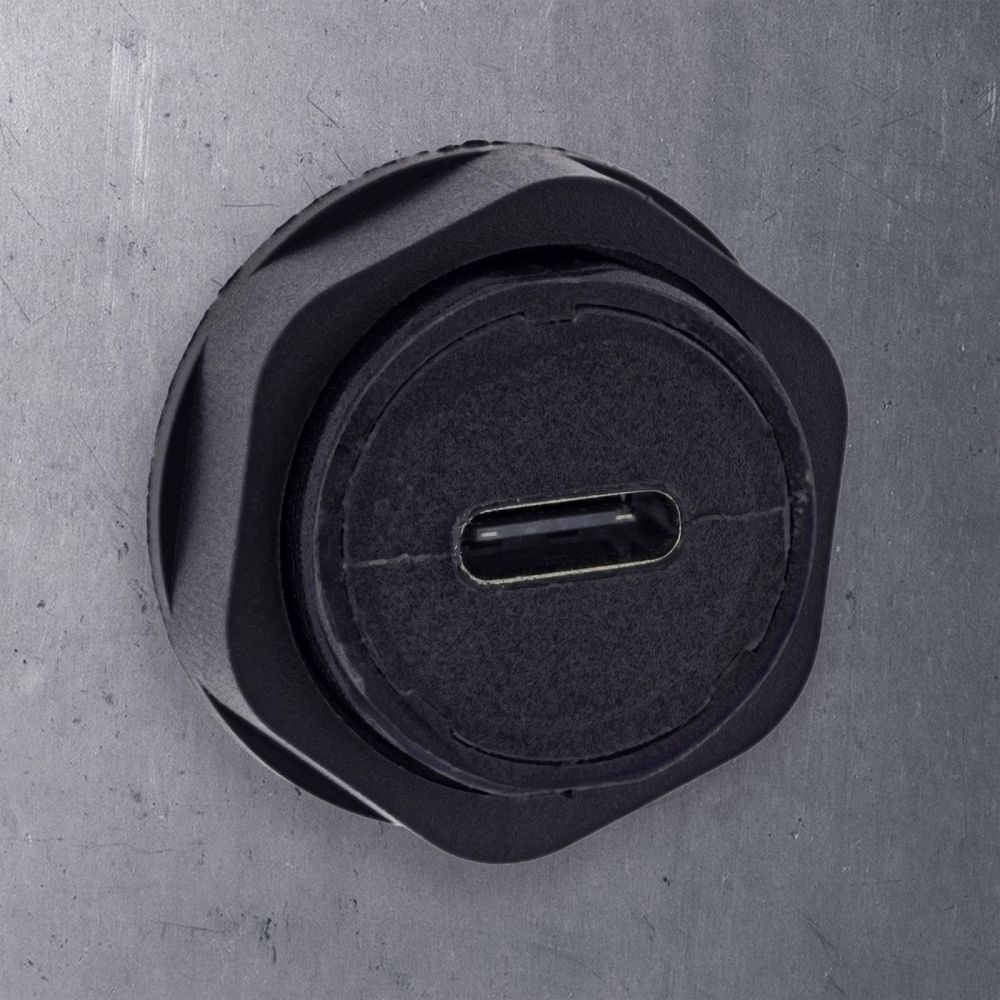

With a total length of only 74 mm, this connector can be easily integrated even in compact enclosures. The shielded USB-C socket (on both sides) supports data transfers of up to 5 Gb/s and also offers a charging function with 2 A at 5 V.

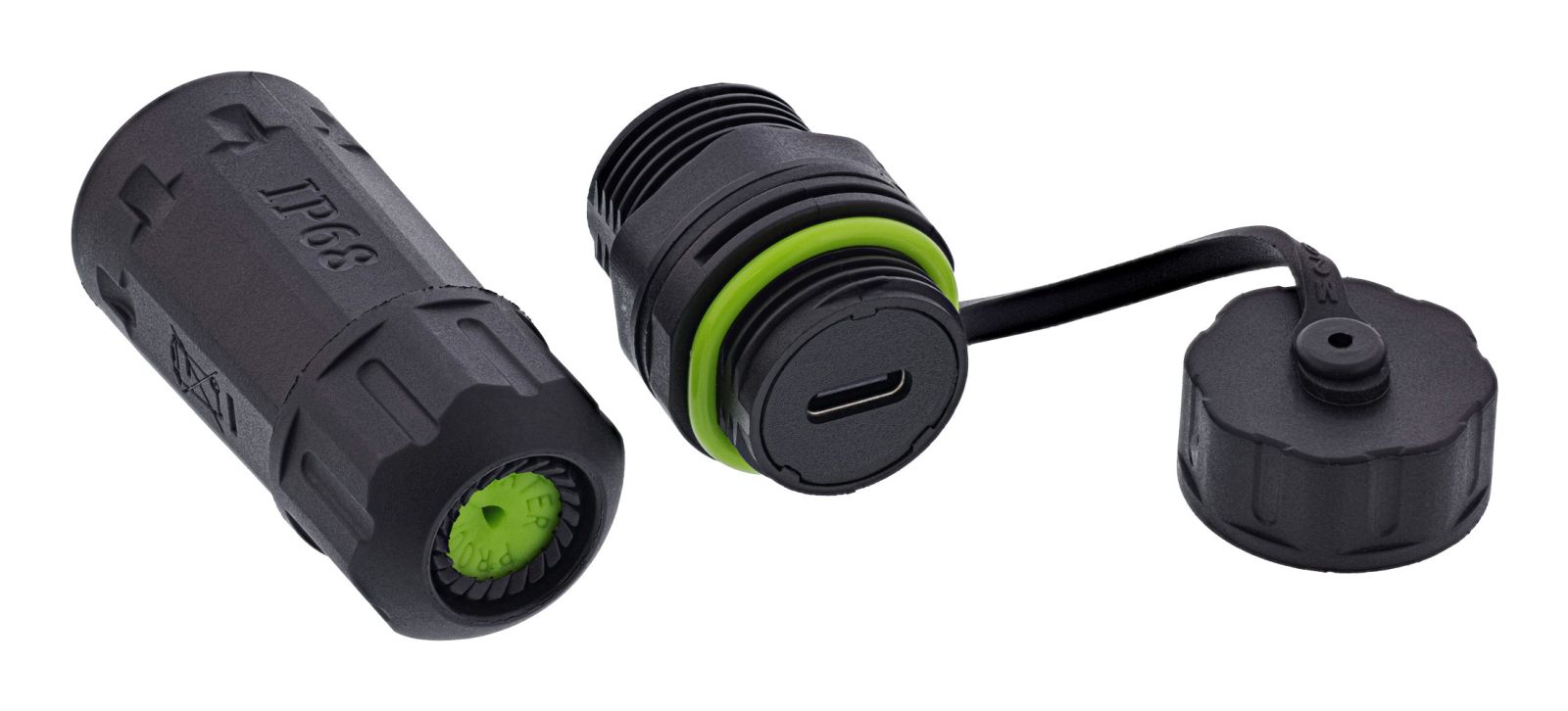

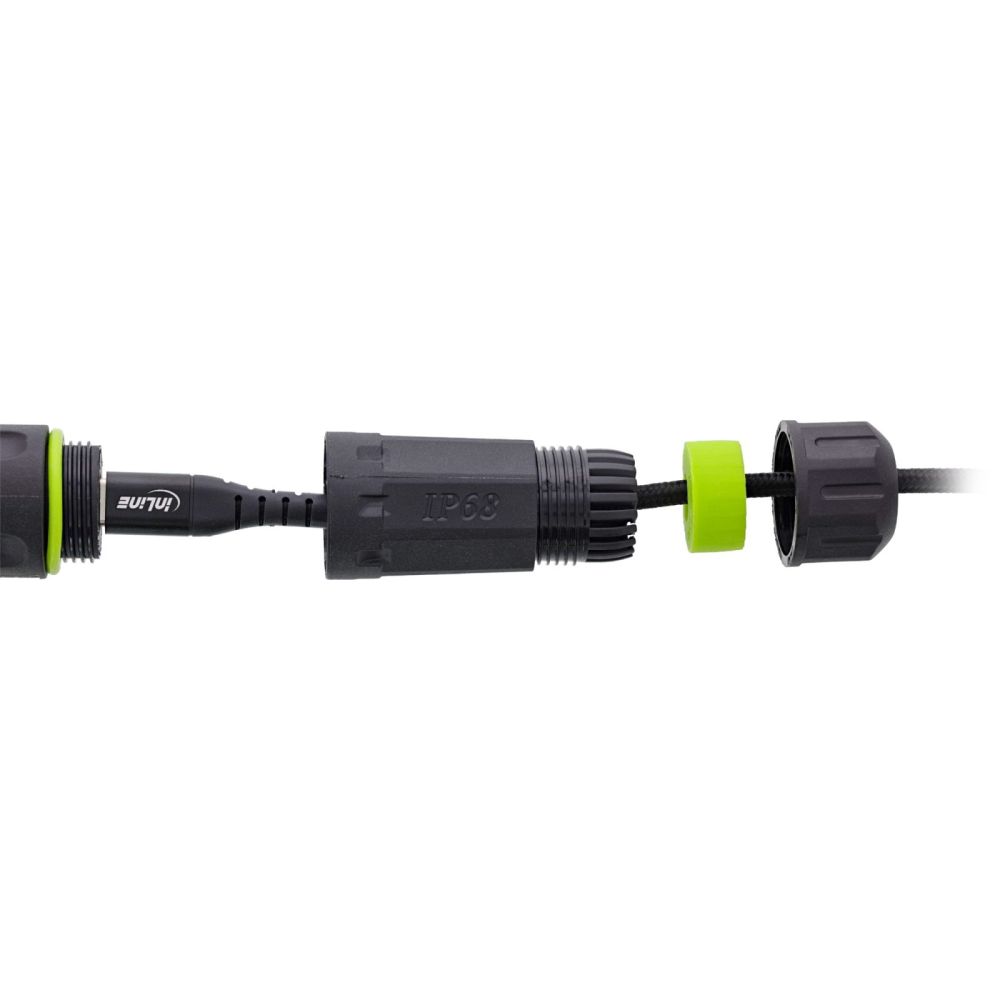

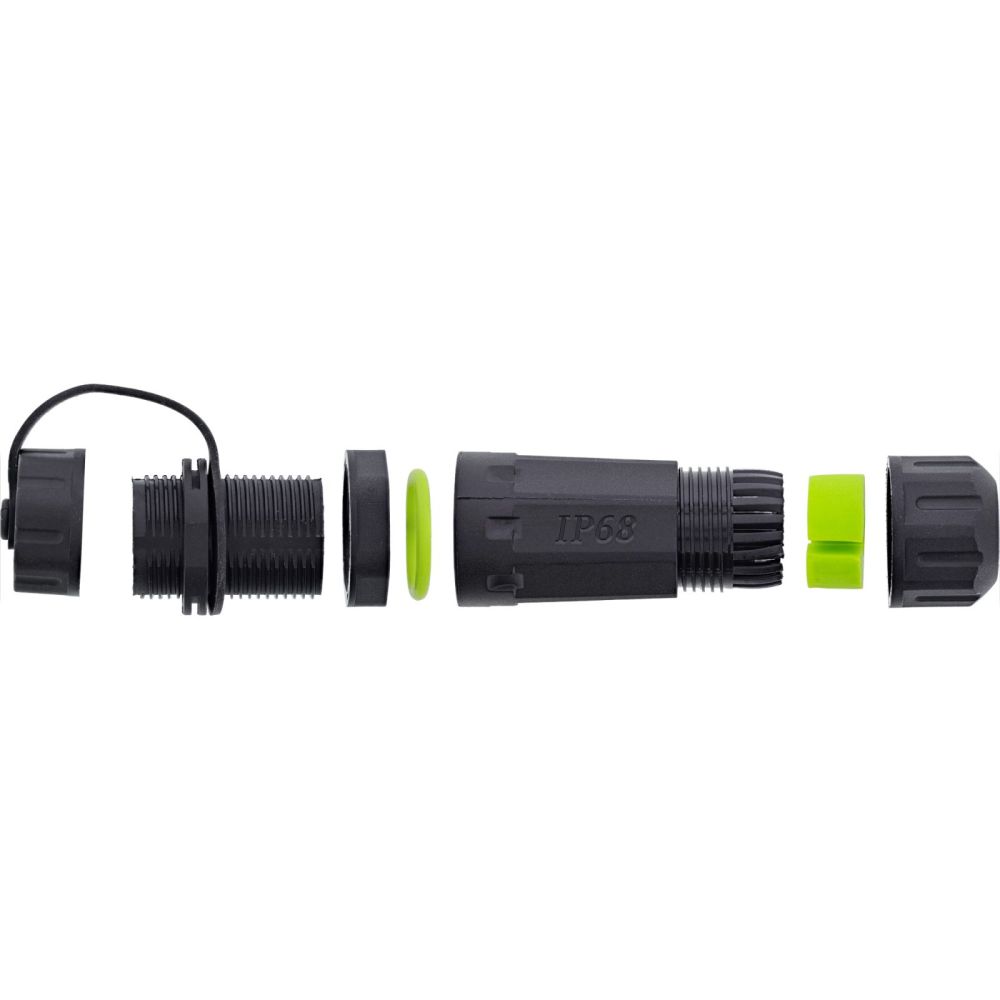

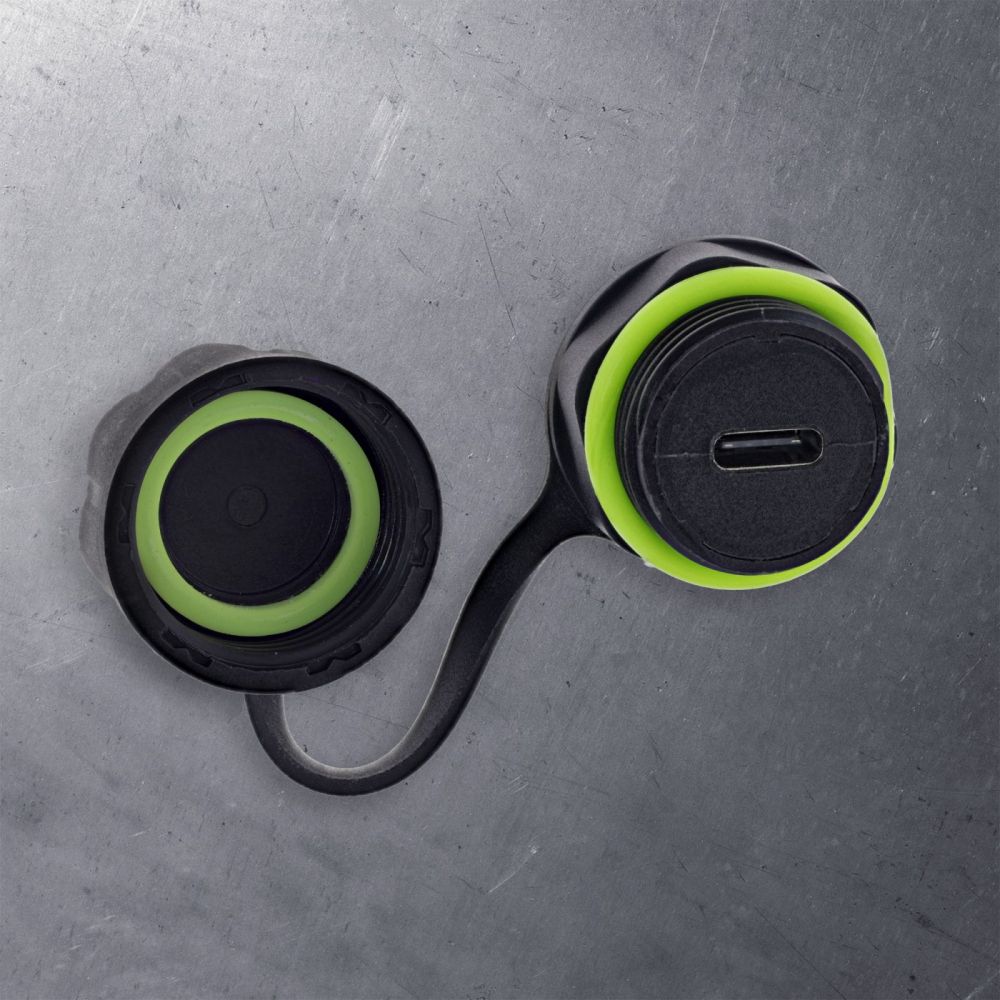

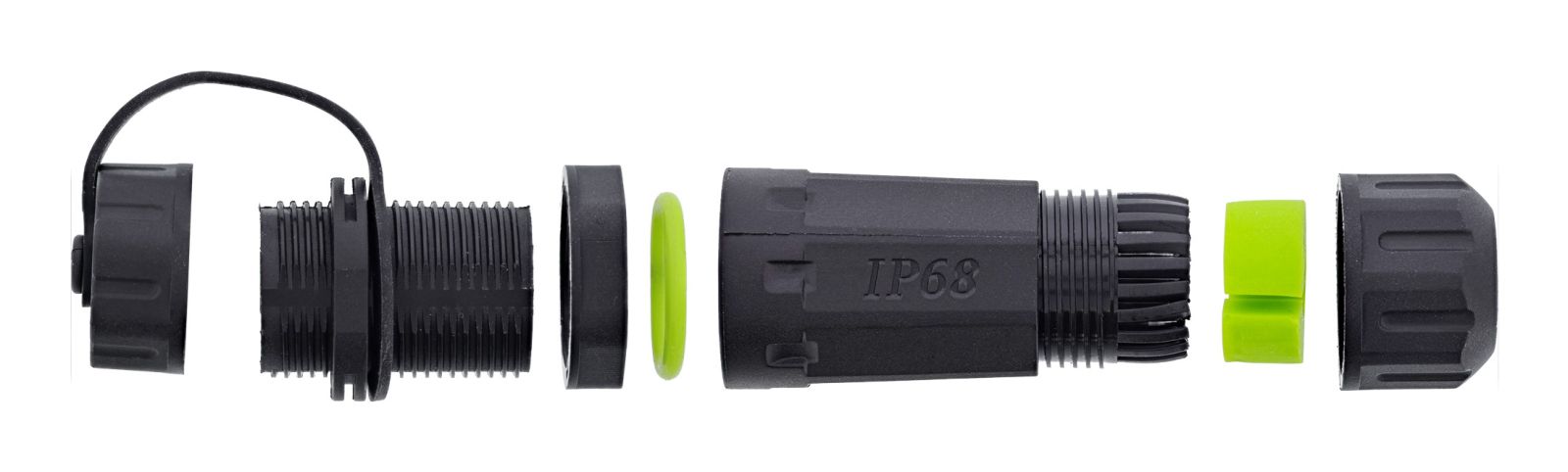

Installation is quick and tool-free thanks to the integrated screw system. The combination of a green sealing ring and rubber gasket ensures a robust,
IP68-compliant seal – reliably protected against moisture, dust, dirt, and mechanical stress.
Ideal for harsh environments, industrial facilities, or professional outdoor IT installations – anywhere where reliable USB-C connectivity is required in confined spaces.
Material: Nylon (PA66)
Thread size: M20
Module: USB-C socket/socket
Seal: Silicone
Transfer rate: 5 Gb/s
Current: 2 A
Voltage: 5 V
Charging: yes
Protection rating:
IP68
Temperature resistance: -25 °C to +105 °C
Cable diameter: 1.5–4.5 mm, 4.5–7.5 mm

Certificates
Compliance certificates	TÜV mark
Features
Product type	Cable coupler
Product colour	Black
Material	Polyamide, Silicone
Protection features	Dust proof, Waterproof
Connector(s)	USB-C coupler, short, IP68, 2x USB-A socket, shielded
Logistics data
Country of origin	China
Package volume	200 cm³
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	70 mm
Package depth	140 mm
Package height	30 mm
Package weight	41 g
Technical data
Variant	IP68
Colour	Black
Weight	0.041kg
Packaging volume	0.0002m³
Article width	2.50cm
Side B	USB-C female
Length packaging	0.140m
Article length	8.50cm
Side A	USB-C female
Width packaging	0.070m
Article height	2.50cm
Height packaging	0.030m
Net weight	0.031kg
Weight & dimensions
Width	25 mm
Depth	85 mm
Height	25 mm
Weight	31 g

---
