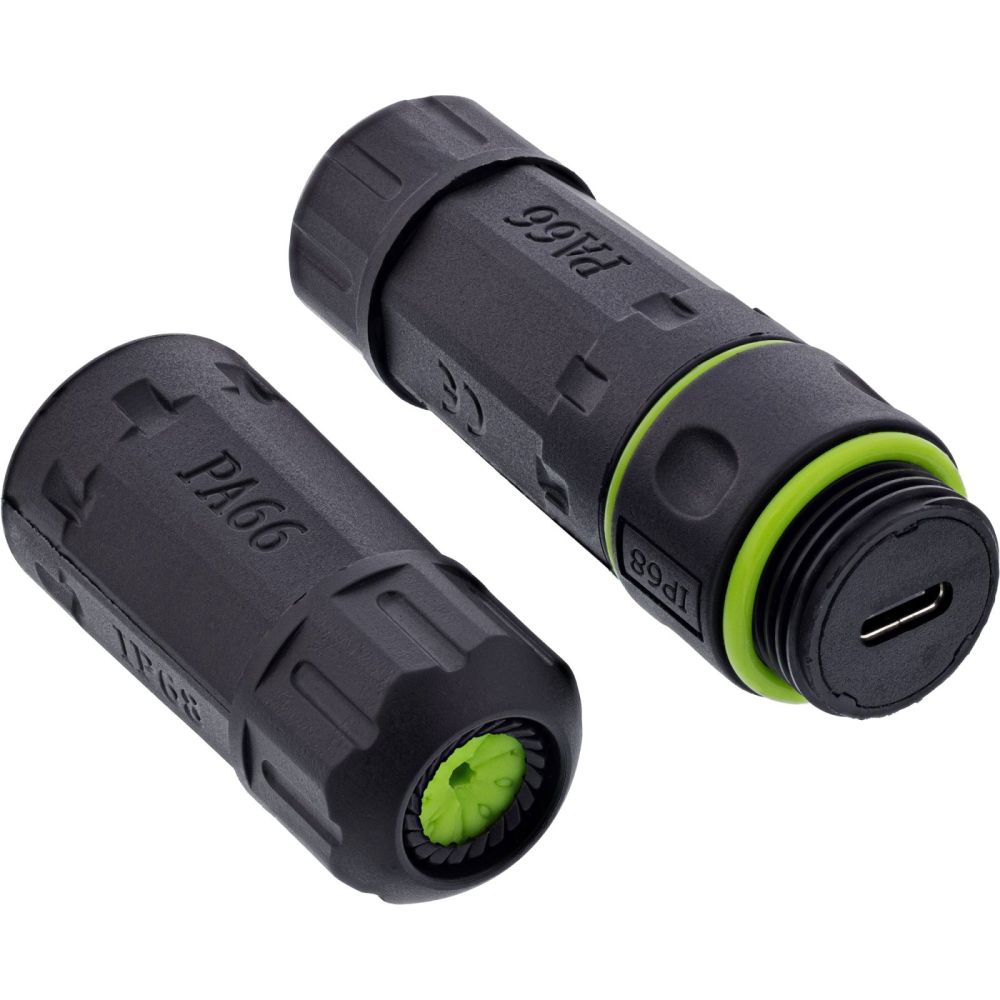

InLine® USB-C coupler, IP68, 2x USB-C socket, shielded, M20 content_copy

USB-C connector for outdoor use: The shielded connector protects your connection from water, dust, and environmental influences thanks to its IP68 protection rating.
Reliable data transfer: Supports transfer rates of up to 5 Gb/s—ideal for industrial and outdoor applications.
Power supply included: Charging function with 5 V / 2 A – suitable for live USB connections.
Compact design with M20 thread: Enables integration into standard housings and distribution systems.
Flexible cable compatibility: Suitable for cable diameters of 1.5–4.5 mm, 4.5–7.5 mm – tool-free installation via silicone seal.
The InLine® USB-C cable coupling with IP68 protection is the robust solution for modern connections in demanding environments.
It connects two USB-C cables securely and permanently – ideal for industrial applications, outdoor areas, mobile systems, or measurement environments.
The coupler supports data transfers of up to 5 Gb/s and can simultaneously provide a power supply of 5 V at 2 A – for combined charging and data connections. The housing is made of durable PA66 and protects the connection from dust, water, and mechanical stress.
Thanks to its M20 thread, the coupler can be integrated into distribution boxes or enclosures. The included silicone seal ensures secure routing of cables with diameters between 1.5 and 4.5 mm, 4.5 and 7.5 mm. Installation is quick and tool-free, simply by screwing it in place.
Whether for connecting sensors, embedded systems, or mobile devices, the InLine® USB-C coupler provides reliable protection for your connections.
Material: Nylon (PA66)
Thread size: M20
Module: USB-C female/female
Seal: Silicone
Transfer rate: 5 Gb/s
Current: 2 A
Voltage: 5 V
Charging: yes
Protection rating: IP68
Temperature resistance: -25 °C to +105 °C
Cable diameter: 1.5–4.5 mm, 4.5–7.5 mm

Certificates
Compliance certificates	TÜV mark
Features
Product type	Cable coupler
Product colour	Black
Material	Polyamide, Silicone
Protection features	Dust proof, Waterproof
Connector(s)	USB-C coupler, IP68, 2x USB-C socket, shielded, M20
Logistics data
Country of origin	China
Package volume	200 cm³

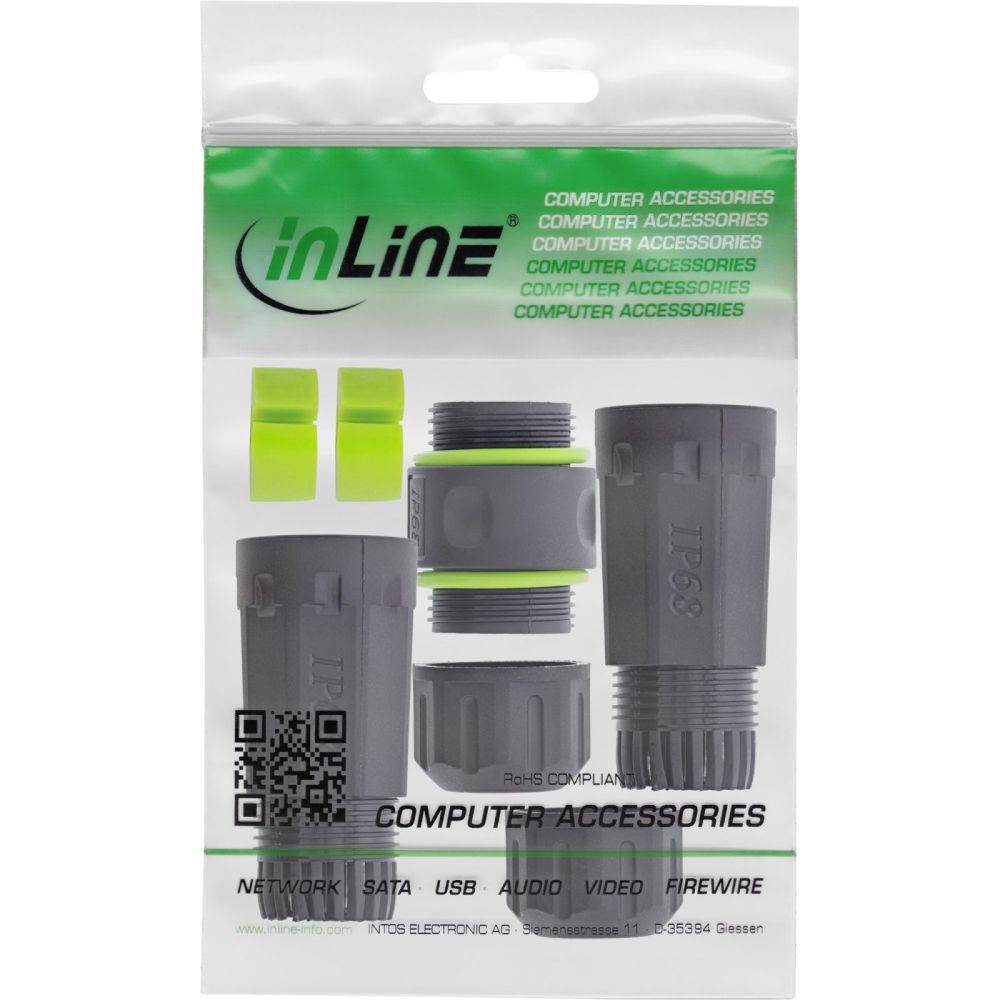

Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	70 mm
Package depth	140 mm
Package height	30 mm
Package weight	52 g
Technical data
Side A	USB-C female
Variant	IP68
Colour	Black
Width packaging	0.070m
Article height	2.50cm
Packaging volume	0.0002m³
Article width	2.50cm
Height packaging	0.030m
Side B	USB-C female
Length packaging	0.140m
Article length	12.50cm
Net weight	0.042kg
Weight	0.052kg
Weight & dimensions
Width	25 mm
Depth	125 mm
Height	25 mm
Weight	42 g

---
