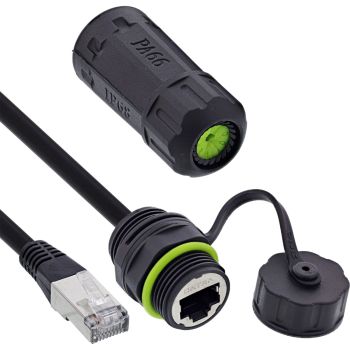

InLine® Patch cable coupler Cat.6A, IP68, RJ45 socket to plug, 20cm content_copy

Integrated 50 cm patch cable with RJ45 connector: Eliminates the need for additional connections – ideal for clean and stable network installations.
Waterproof to IP68 for harsh environments: Reliable protection against dust, moisture, and mechanical stress – for industrial and outdoor use.
High performance according to Cat.6A standard: Transmission rates up to 10 Gb/s and 500 MHz bandwidth – perfect for demanding data applications.
Shielded design with M20 thread: Reduces electromagnetic interference and can be easily integrated into enclosures or distributors.
Easy installation: Can be easily integrated into enclosures, technical boxes, or distributors.
The InLine® Cat.6A patch cable coupler with integrated 50 cm patch cable offers a high-quality and flexible solution for shielded network connections in demanding environments. The design with an RJ45 socket on one side and an RJ45 plug on the other side saves additional connections and reduces potential sources of error.
The robust PA66 housing, reliable silicone seal, and IP68 certification make the coupler suitable for outdoor use, in industrial applications, or in mobile technology systems. The shielded design ensures interference-free transmission – even in the presence of electromagnetic interference.
The integrated Cat.6A standard cable supports transmissions of up to 10 Gb/s with a bandwidth of 500 MHz. Thanks to the M20 thread, the coupling can be easily installed in housings, distributors, or technical boxes.
This coupling is the ideal solution for anyone who needs a robust, shielded connection with a pre-assembled cable in damp or harsh environments.
Material: Nylon (PA66)
Thread size: M20
Module: Cat.6A socket/plug
Shielding: Yes
Seal: Silicone
Transmission rate: max. 10 Gb/s
Transmission distance: max. 100 m
Bandwidth: 500 MHz
IP protection class: IP68
Temperature resistance: –40 °C to +105 °C

Certificates
Compliance certificates	TÜV mark
Features
Product type	Cable coupler
Product colour	Black
Material	Polyamide, Silicone
Cable standard	Cat6a
Protection features	Dust proof, Waterproof
Logistics data
Country of origin	China
Package volume	200 cm³
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	70 mm
Package depth	140 mm
Package height	30 mm
Package weight	55 g
Technical data
Side A	RJ45 female
Side B	RJ45 plug
Height packaging	0.030m
Net weight	0.032kg
Weight	0.055kg
Width packaging	0.070m
Article height	2.80cm
Variant	IP68
Colour	Black
Length packaging	0.140m
Article length	25.00cm
Packaging volume	0.0002m³
Article width	2.80cm
Weight & dimensions
Width	28 mm
Depth	250 mm
Height	28 mm
Weight	32 g

---
