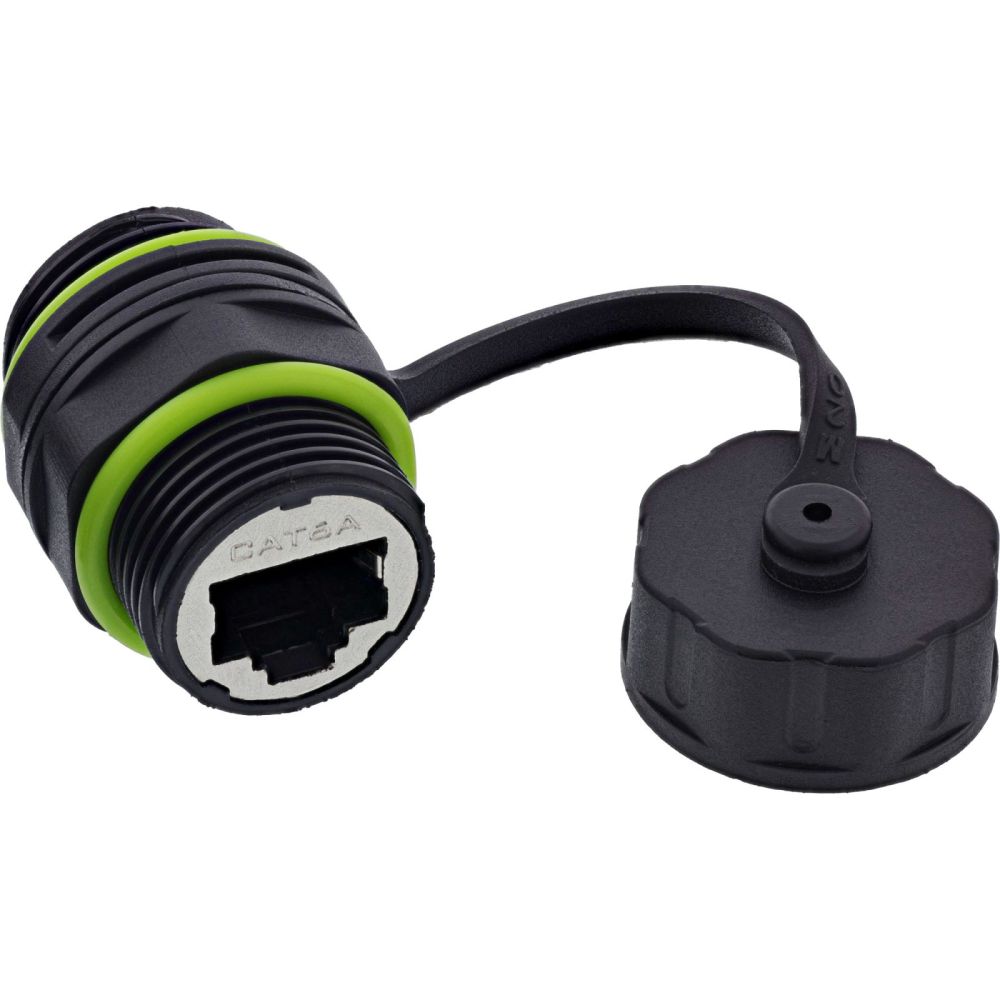

InLine® Patch cable coupler Cat.6A, mini, IP68, shielded, 2x RJ45 socket content_copy

Reliable weather protection according to IP68: The robust silicone seal permanently protects the RJ45 connection from water and dust – ideal for outdoor installations.
High network performance with Cat.6A: Supports data rates up to 10 Gb/s and bandwidths up to 500 MHz for stable, high-performance connections.
Shielded housing for EMC-critical environments: Reduces interference from electromagnetic influences – perfect for industry, mechanical engineering, or sensitive IT installations.
Easy installation with M20 thread: The compact coupling can be quickly and securely integrated into housings or distributors – no special tools required.
Flexible use thanks to variable cable diameter: Suitable for cables from 1.5 to 7.5 mm – ideal for connecting a wide variety of patch cables indoors and outdoors.
The InLine® Mini Cat.6A patch cable coupler was developed for demanding applications in harsh environments. With its certified IP68 protection class, it provides reliable protection against dust and water and is ideal for temporary outdoor use or installation in weather-protected enclosures – whether for professional applications in industrial plants, surveillance systems, or expanding a home network in the garden or basement.
The high-quality workmanship with PA66 housing, silicone seal, and shielded RJ45 sockets ensures reliable connections even in electromagnetically stressed environments. Thanks to support for 10 Gb/s transmission rates and a bandwidth of up to 500 MHz, the coupler meets the highest requirements for network signal quality.

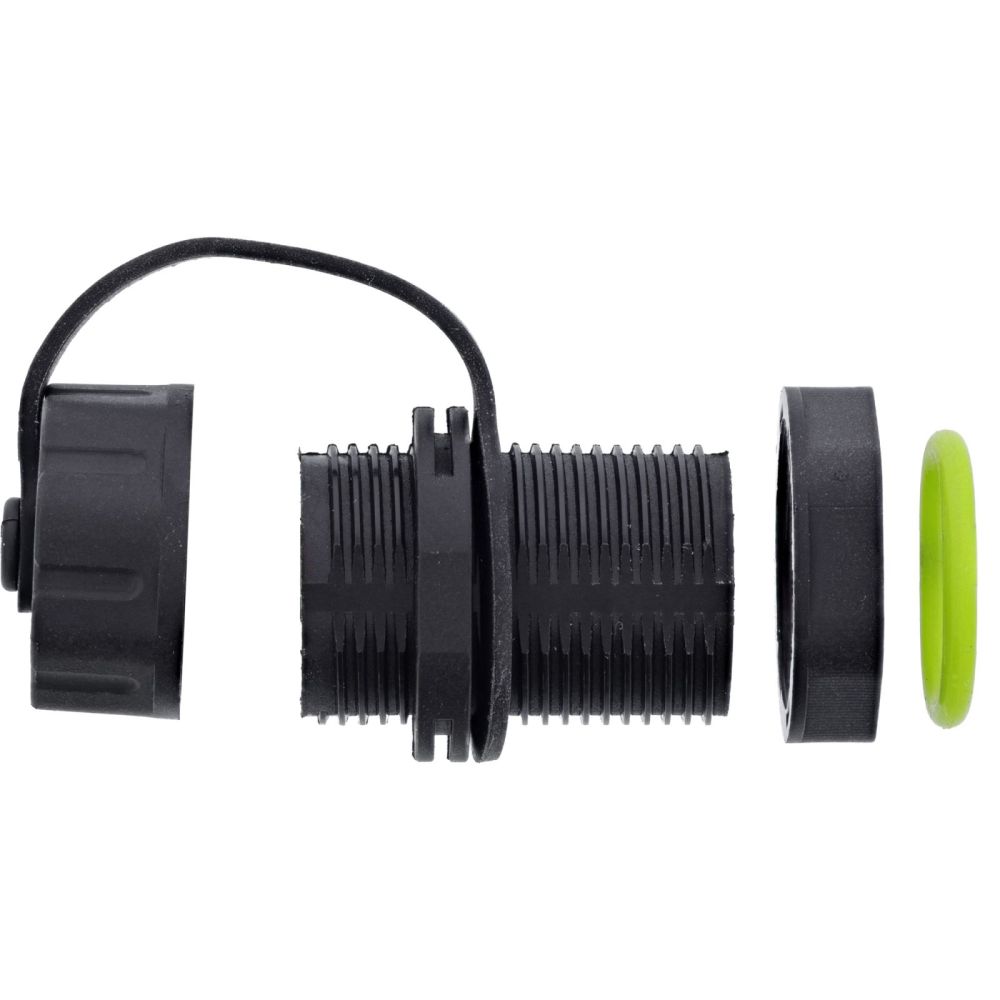

Installation is quick and easy: the M20 thread allows the coupler to be inserted into enclosures or distribution cabinets. Two different sealing inserts enable use with cable diameters from 1.5 to 7.5 mm, making the coupler particularly flexible and adaptable.
Whether you need a temporary extension, a weatherproof connection, or a robust solution for industrial environments, this patch cable coupler provides you with a reliable connection solution for demanding scenarios.
Material: Nylon (PA66)
Thread size: M20
Module: Cat.6A female/female
Shielding: Yes
Seal: Silicone
Transfer rate: max. 10 Gb/s
Transfer distance: max. 100 m
Bandwidth: 500 MHz
IP protection class: IP68
Temperature resistance: –40 °C to +105 °C
Cable diameter: 1.5–4.5 mm, 4.5–7.5 mm

Certificates
Compliance certificates	TÜV mark
Features
Product type	Cable coupler
Product colour	Black
Material	Polyamide, Silicone
Cable standard	Cat6a
Protection features	Dust proof, Waterproof
Logistics data
Country of origin	China
Package volume	100 cm³
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	50 mm
Package depth	120 mm
Package height	30 mm
Package weight	29 g
Technical data
Width packaging	0.050m
Article width	2.50cm
Height packaging	0.030m
Variant	IP68
Colour	Black
Weight	0.029kg
Packaging volume	0.0001m³
Article height	2.50cm
Side A	RJ45 female
Length packaging	0.120m
Article length	4.00cm
Net weight	0.024kg
Side B	RJ45 female
Weight & dimensions
Width	25 mm
Depth	40 mm
Height	25 mm
Weight	24 g

---
