InLine® Patch cable coupler Cat.6A, short, IP68, 2x RJ45 socket, shielded content_copy

Compact Cat.6A coupler: Only 74 mm long – perfect for tight installations in junction boxes, enclosures, or industrial facilities.
Reliable 10Gbit/s connection: Supports bandwidths up to 500 MHz and distances up to 100 m – ideal for demanding network environments.
Waterproof to IP68: The coupler reliably protects your connection from dust, water, and mechanical stress – even outdoors.
Shielded housing: Minimizes interference and ensures stable data transmission in EMC-critical areas.

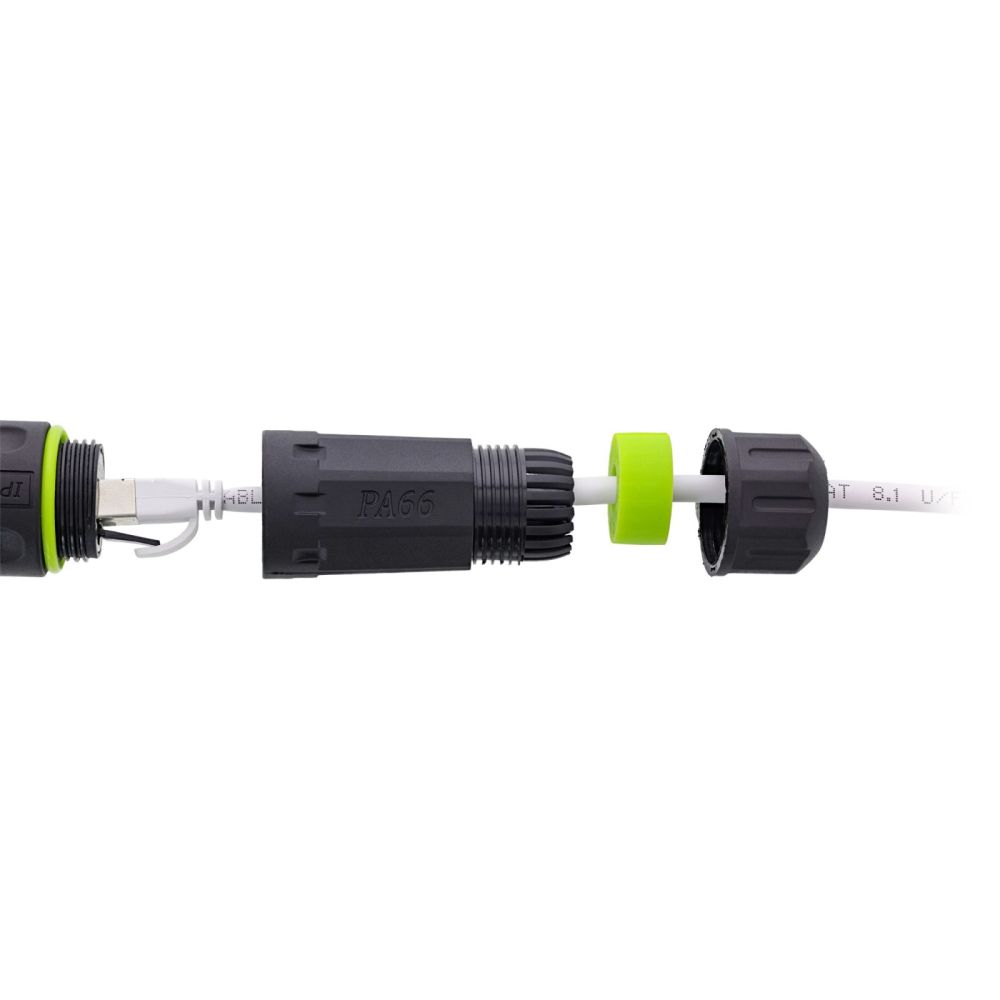

Easy installation: Integrated screw mechanism with silicone seal – tool-free, quick, and secure installation.
The compact InLine® Cat.6A patch cable coupler is the ideal solution for robust, shielded RJ45 connections in confined spaces. With a housing length of only 74 mm, the coupler is particularly suitable for distribution boxes, industrial enclosures, or outdoor applications where IP68 protection is required.

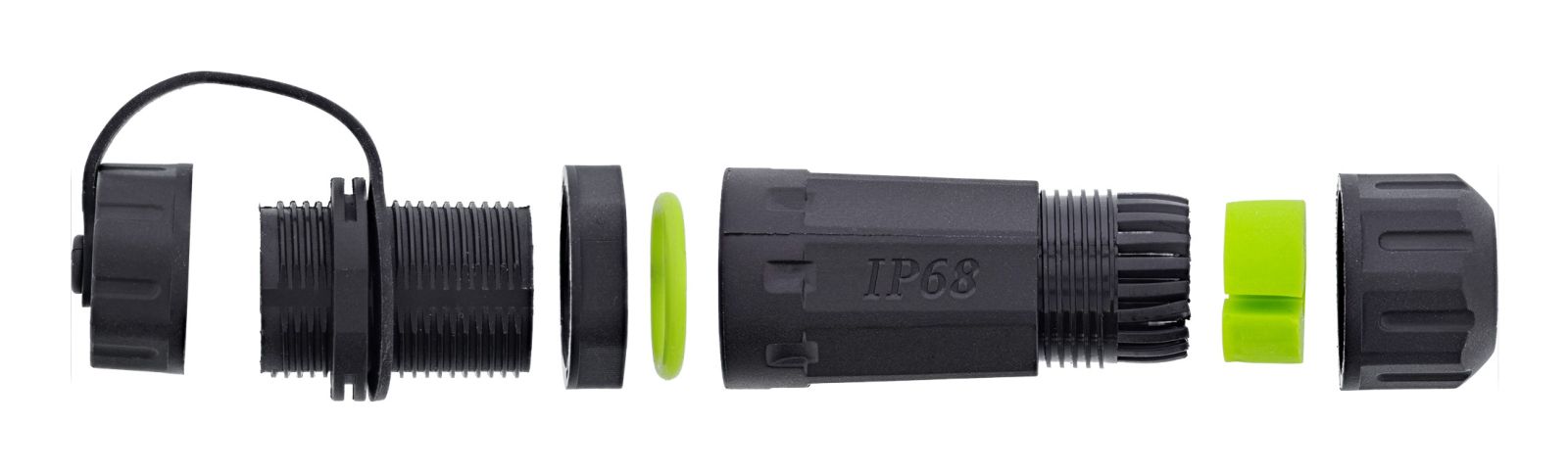

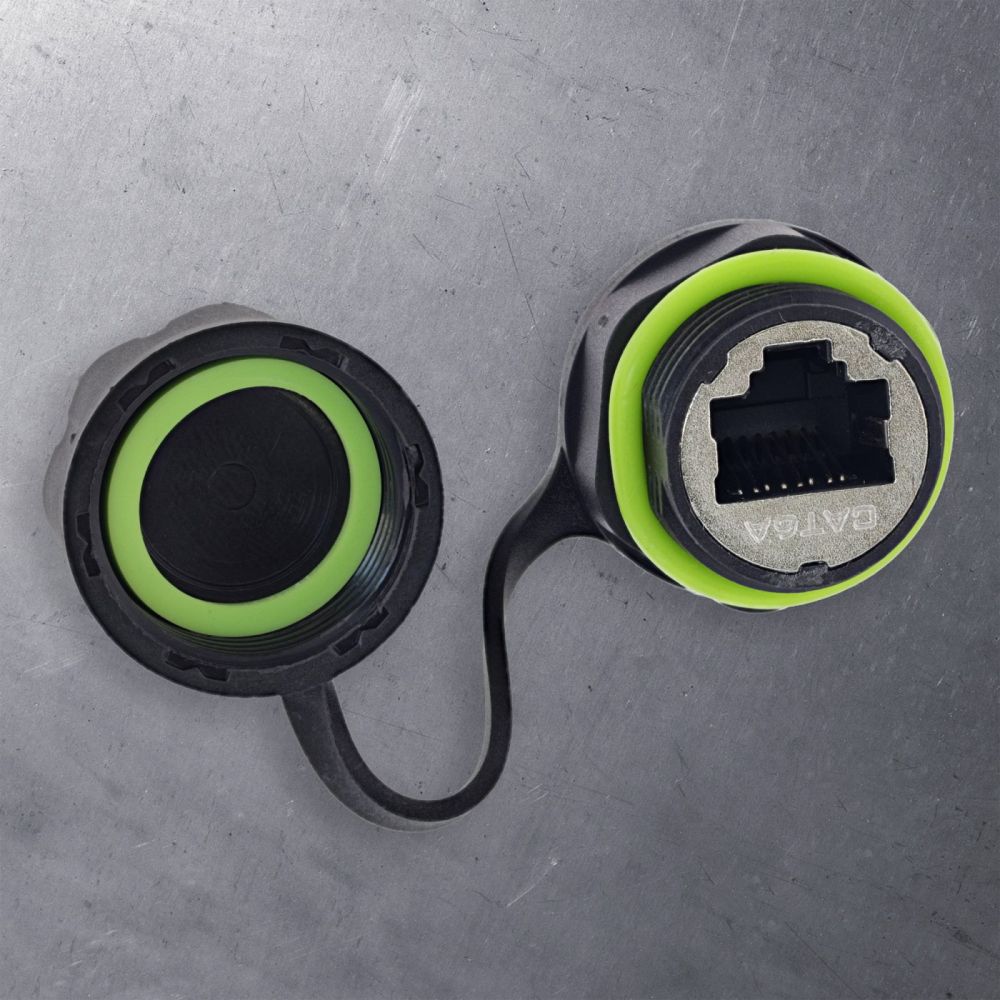

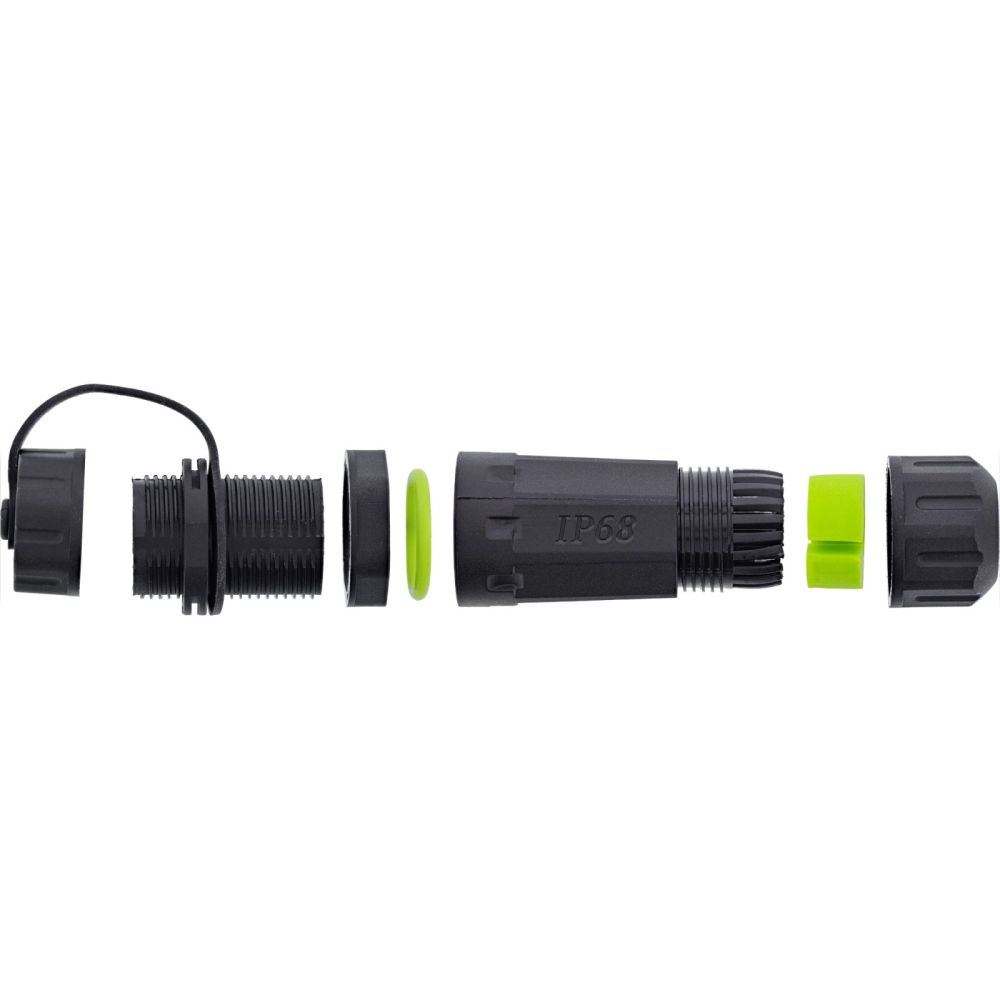

The coupler provides a reliable Cat.6A connection with bandwidths up to 500 MHz and a transmission rate of up to 10 Gb/s over distances of up to 100 m. Thanks to the high-quality shielding, data transmission is protected and kept stable even in EMC-critical areas. The rubber seal and green sealing ring ensure complete sealing in accordance with IP68.
The housing is made of durable nylon (PA66) and is suitable for cable diameters from 1.5 to 7.5 mm (in two ranges). Tool-free installation is carried out using the integrated screw system – ideal for installations where speed and reliability are important.
Whether for network connections in outdoor areas, in machine environments, or in outdoor enclosures, this RJ45 coupling meets the highest requirements for stability, protection, and performance.
Material: Nylon (PA66)
Thread size: M20
Module: Cat.6A female/female
Shielding: Yes
Seal: Silicone
Transmission rate: max. 10 Gb/s
Transmission distance: max. 100 m
Bandwidth: 500 MHz
IP protection class: IP68
Temperature resistance: -40 °C to +105 °C
Cable diameter: 1.5–4.5 mm, 4.5–7.5 mm

Certificates
Compliance certificates	TÜV mark
Features
Product type	Cable coupler
Product colour	Black
Material	Polyamide, Silicone
Cable standard	Cat6a
Protection features	Dust proof, Waterproof
Connector(s)	Patch cable coupler Cat.6A, short, IP68, 2x RJ45 socket, shielded
Logistics data
Country of origin	China
Package volume	200 cm³
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	70 mm
Package depth	140 mm
Package height	30 mm
Package weight	45 g
Technical data
Variant	IP68
Colour	Black
Height packaging	0.030m
Length packaging	0.140m
Article length	8.50cm
Side A	RJ45 female
Net weight	0.036kg
Weight	0.045kg
Packaging volume	0.0002m³
Article width	2.50cm
Width packaging	0.070m
Article height	2.50cm
Side B	RJ45 female
Weight & dimensions
Width	25 mm
Depth	85 mm
Height	25 mm
Weight	36 g

---
