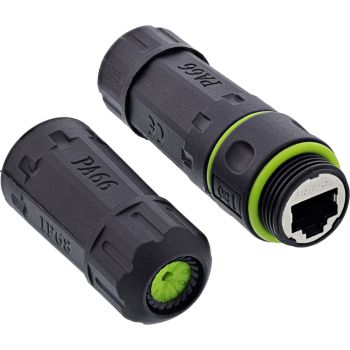

InLine® Patch cable coupler Cat.6A, IP68, 2x RJ45 socket, shielded, M20 content_copy

Waterproof to IP68: The RJ45 connector reliably protects your network connection from water, dust, and other environmental influences.
Ideal for Gigabit and 10G Ethernet: Supports transfer rates of up to 10 Gb/s at 500 MHz bandwidth—optimal for modern networks.
Shielded connection: The full metal shielding protects your data transmission from electromagnetic interference.
Flexible use: Compatible with standard patch cables and suitable for two cable diameter ranges (1.5–4.5 mm / 4.5–7.5 mm).
Safe and quick installation: The M20 thread and tool-free screw connection ensure quick and permanently reliable installation.
The InLine® Cat.6A patch cable coupler with two RJ45 sockets is the perfect solution for secure and weatherproof network connections indoors and outdoors. Thanks to its IP68 protection class, the coupler is particularly suitable for industrial installations, outdoor use, or use in damp and dusty environments.
The shielded coupler supports transmission rates of up to 10 Gb/s with a bandwidth of 500 MHz – ideal for applications with high performance requirements such as 10GBase-T. The module is fully shielded to effectively dissipate electromagnetic interference and maintain signal quality.
Two different cable seals make the coupling flexible for use with cable diameters from 1.5 to 7.5 mm. The M20 thread allows integration into common housing openings. Installation is tool-free using screw and sealing elements, ensuring that the connection remains mechanically stable and permanently protected.
Whether for temporary connections or as a permanent solution, the InLine® Cat.6A patch cable coupler offers reliable performance and maximum security for professional networks.
Material: Nylon (PA66)
Thread size: M20
Module: Cat.6A female/female
Shielding: Yes
Seal: Silicone
Transmission rate: max. 10 Gb/s
Transmission distance: max. 100 m
Bandwidth: 500 MHz
IP protection class: IP68
Temperature resistance: -40 °C to +105 °C
Cable diameter: 1.5–4.5 mm, 4.5–7.5 mm

Certificates
Compliance certificates	TÜV mark
Features
Product type	Cable coupler
Product colour	Black
Material	Polyamide, Silicone
Cable standard	Cat6a
Protection features	Dust proof, Waterproof
Connector(s)	Patch cable coupler Cat.6A, IP68, 2x RJ45 socket, shielded, M20
Logistics data
Country of origin	China
Package volume	200 cm³
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	70 mm
Package depth	140 mm
Package height	25 mm
Package weight	56 g
Technical data
Net weight	0.046kg
Weight	0.056kg
Height packaging	0.025m
Side B	RJ45 female
Side A	RJ45 female
Length packaging	0.140m
Article length	12.50cm
Width packaging	0.070m
Article height	2.80cm
Packaging volume	0.0002m³
Article width	2.80cm
Variant	IP68
Colour	Black
Weight & dimensions
Width	28 mm
Depth	125 mm
Height	28 mm
Weight	46 g

---
