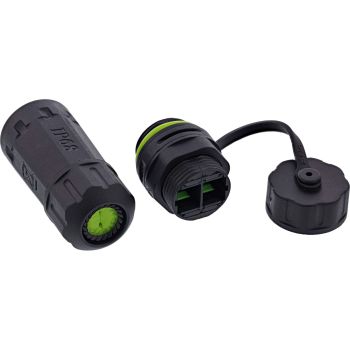

InLine® Fiber optic coupler SC, short, IP68, 2x2 SC socket, M20 content_copy

Compact SC duplex coupler: Only 74 mm long – ideal for confined installations in outdoor boxes or network cabinets.
Protection in all weather conditions: The connection is reliably protected against dust, water, and mechanical influences thanks to IP68.
Suitable for single-mode applications: SC duplex module (female/female) for UPC and APC fibers – universally applicable.
Quick installation: Integrated screw mechanism with rubber seal – tool-free and secure installation.
Standard M20 thread: Easy integration into distribution housings, connection panels, or industrial systems.
The InLine® SC fiber optic cable coupler in a short version (only 74 mm long) provides a stable, weatherproof connection for SC duplex fiber optic cables. Thanks to its compact design, the coupler is ideal for installations in tight enclosures, DIN rail boxes, or outdoor applications.
The robust PA66 plastic housing, combined with the high-quality silicone seal, ensures reliable protection against dust, water, and mechanical stress – in accordance with IP68. The pre-assembled SC duplex module is compatible with UPC or APC polish and is perfect for single-mode applications.
Tool-free installation is achieved using the proven screw system with green sealing ring and rubber seal – simply feed the cable through, screw it in place, and seal it. The M20 thread allows integration into standardized housing openings. According to the instructions, repeated installation is also possible without losing the protective effect.
This fiber optic coupling is ideal for applications where reliability, protection, and space savings are required – e.g., in network technology, automation, or building cabling.
Material: Nylon (PA66)
Seal: Silicone
Module: SC duplex female/female
Thread size: M20
Application: Single-mode UPC/APC
For cable diameter: 2.9 mm
Dimensions: 74 x 26 mm
IP protection class: IP68
Temperature resistance: -40 °C to +85 °C

Certificates
Compliance certificates	TÜV mark
Features
Product type	Cable coupler
Product colour	Black
Material	Polyamide, Silicone
Protection features	Dust proof, Waterproof
Connector(s)	Fiber optic coupler SC, short, IP68, 2x2 SC socket, M20
Logistics data
Country of origin	China
Package volume	200 cm³
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	70 mm
Package depth	140 mm
Package height	30 mm
Package weight	33 g
Technical data
Length packaging	0.140m
Article length	8.00cm
Packaging volume	0.0002m³
Article width	2.50cm
Side B	SC female
Net weight	0.027kg
Height packaging	0.030m
Weight	0.033kg
Variant	IP68
Side A	SC female
Colour	Black
Width packaging	0.070m
Article height	2.50cm
Weight & dimensions
Width	25 mm
Depth	80 mm
Height	25 mm
Weight	27 g

---
