InLine® Fiber optic coupler LC, short, IP68, 2x2 LC socket, M20
|
5,03 EUR |
|||||||||||
|
( 5,99 EUR incl. VAT ) ≈ £4.21 | ≈ $5.63 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >100 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 22195548 | ||||||||||
| Mfg Part No: | 69927C | ||||||||||
| UPC/EAN: | 4043718346707 | ||||||||||
| Weight: | 0.035 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline 69927C:
Waterproof and dustproof: Thanks to IP68 protection, the connection is reliably protected against moisture, dirt, and mechanical influences.
Simple and secure: Pre-assembled LC duplex sockets with tool-free screw connection – quick to install, permanently stable.
For professional applications: Supports single-mode connections (UPC/APC) with 2x LC duplex – ideal for industry and network technology.
Standard M20 thread: Fits into common housing openings – for easy integration into existing systems.

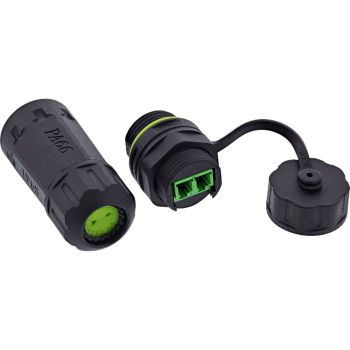

The InLine® LC fiber optic cable coupler in a short design offers reliable protection and a stable connection for fiber optic installations – even in limited installation space. With a length of only 74 mm, this coupler is ideal for use in tight distribution cabinets, outdoor enclosures, or industrial applications.
The coupler is equipped with two LC duplex sockets and supports single-mode fibers with UPC or APC polish. IP68 protection reliably protects the connection against moisture, dust, and temperature fluctuations from -40 °C to +85 °C. The robust PA66 plastic housing and high-quality silicone seal ensure durability and easy handling.
Installation is tool-free thanks to the integrated screw system. The M20 thread allows the coupler to be quickly and securely fastened in enclosures or junction boxes. The green sealing ring and rubber seal ensure reliable sealing even with repeated use.
This compact fiber optic coupler is ideal for applications where space is at a premium, without compromising on quality and protection.
Material: Nylon (PA66)
Seal: Silicone
Module: LC duplex female/female
Thread size: M20
Application: Single-mode UPC/APC
For cable diameter: 2.9 mm
Dimensions: 74 x 26 mm
IP protection class: IP68
Temperature resistance: -40 °C to +85 °C
| Certificates | |
| Compliance certificates | TÜV mark |
| Features | |
| Product type | Cable coupler |
| Product colour | Black |
| Material | Polyamide, Silicone |
| Protection features | Dust proof, Waterproof |
| Connector(s) | Fiber optic coupler LC, short, IP68, 2x2 L socket, M20 |
| Logistics data | |
| Country of origin | China |
| Package volume | 200 cm³ |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 70 mm |
| Package depth | 140 mm |
| Package height | 30 mm |
| Package weight | 35 g |
| Technical data | |
| Length packaging | 0.140m |
| Article length | 8.00cm |
| Variant | IP68 |
| Side B | LC female |
| Packaging volume | 0.0002m³ |
| Article width | 2.50cm |
| Width packaging | 0.070m |
| Article height | 2.50cm |
| Colour | Black |
| Height packaging | 0.030m |
| Weight | 0.035kg |
| Net weight | 0.029kg |
| Side A | LC female |
| Weight & dimensions | |
| Width | 25 mm |
| Depth | 80 mm |
| Height | 25 mm |
| Weight | 29 g |
Questions & answers
What is the delivery time of InLine® Fiber optic coupler LC, short, IP68, 2x2 LC socket, M20?
The article InLine® Fiber optic coupler LC, short, IP68, 2x2 LC socket, M20 is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 69927C to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® Fiber optic coupler LC, short, IP68, 2x2 LC socket, M20 always at the best possible price. We can give you a discount of 2% on InLine® Fiber optic coupler LC, short, IP68, 2x2 LC socket, M20 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 25 pieces of InLine® Fiber optic coupler LC, short, IP68, 2x2 LC socket, M20 we can offer you a price of 4,99 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
