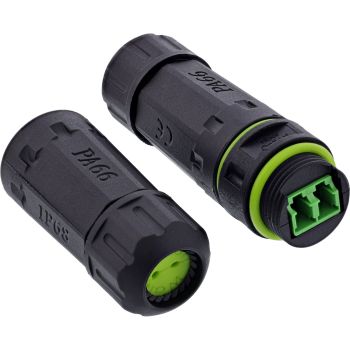

InLine® Fiber optic coupler LC, IP68, 2x2 LC socket, outdoor, M20 content_copy

IP68 protection: The fiber optic coupler reliably protects fiber optic connections from water, dust, and extreme temperatures—ideal for demanding environments.
Robust and durable: Made from resistant PA66 with a silicone seal—for a long service life even under demanding conditions.
Easy to install: Pre-assembled LC duplex sockets and tool-free screw connection enable quick and secure installation.
Versatile: Ideal for single-mode connections with LC duplex connectors – e.g., in outdoor installations, industrial environments, or network cabinets.
Standardized installation options: M20 thread size fits into many common housing openings and ensures flexible integration.
The InLine® LC fiber optic cable coupling is the ideal solution for anyone who needs reliable and permanently protected fiber optic connections in demanding environments. With protection class IP68, the coupling is ideal for outdoor use, in damp or dusty environments, and in extreme temperatures from -40 °C to +85 °C.
The housing made of robust PA66 plastic in combination with a high-quality silicone seal ensures a durable and resistant connection. The integrated LC duplex sockets enable a secure connection of two single-mode fiber optic cables with LC connectors (UPC or APC). The M20 thread allows the coupler to be easily integrated into standardized openings in housings or distribution cabinets.
Installation is quick and easy: the pre-assembled sockets, dust-protected housing parts, and screw connections are intuitively designed and can be assembled without additional tools. This means that the connection is not only mechanically stable, but also reliably protected against external influences.
Whether for industrial applications, professional network installations, or demanding outdoor scenarios, with the InLine® fiber optic coupling, you are on the safe side.
Material: Nylon (PA66)
Seal: Silicone
Module: LC duplex female/female
Thread size: M20
Application: Single-mode UPC/APC
For cable diameter: 2.9 mm
Dimensions: 120 x 26 x 26 mm
IP protection class: IP68
Temperature resistance: -40 °C to +85 °C

Certificates
Compliance certificates	TÜV mark
Features
Product type	Cable coupler
Product colour	Black
Material	Polyamide, Silicone
Protection features	Dust proof, Waterproof
Connector(s)	Fiber optic coupler LC, IP68, 2x2 LC socket, outdoor, M20
Logistics data
Country of origin	China
Package volume	200 cm³
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	70 mm
Package depth	140 mm
Package height	30 mm
Package weight	42 g
Technical data
Packaging volume	0.0002m³
Article width	2.50cm
Height packaging	0.030m
Colour	Black
Net weight	0.036kg
Side A	LC female
Variant	IP68
Side B	LC female
Weight	0.042kg
Length packaging	0.140m
Article length	12.00cm
Width packaging	0.070m
Article height	2.50cm
Weight & dimensions
Width	25 mm
Depth	120 mm
Height	25 mm
Weight	36 g

---
