InLine® Premium SAT cable, 4x shielded, 2x F-male, >110dB, black, 3m content_copy

Low-interference SAT and cable TV reception with quadruple shieldingStable reception without interference: Quadruple shielding with >110 dB reduces ingress in SAT and cable TV networks.
Reliable connection at receiver and wall outlet: 2x straight F connectors with gold-plated contacts for long-lasting contact quality.
Clear video and audio transmission: Suitable for digital and compatible with HD and UHD/4K.
High-performance signal routing: Solid-copper inner conductor 0.78 mm² supports stable transmission.
Easy routing without adapters: 3 m length for direct connection between antenna wall outlet and receiver.

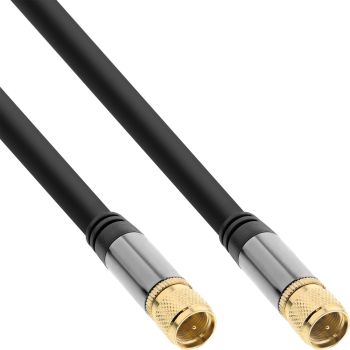

With this quadruple-shielded SAT antenna cable, you connect the antenna wall outlet and SAT or cable receiver directly and shielded. Two aluminium braids and two aluminium foils achieve >110 dB shielding effectiveness and reliably deliver low-interference signals. The solid-copper inner conductor with 0.78 mm² and gold-plated F connectors ensure stable contact and clear transmission up to HD and UHD/4K.
In professional on-site installations, service deployments, and in existing distribution systems in companies and public institutions, the 3 m length creates flexible paths between outlet and end device without additional couplers. This allows you to integrate the cable quickly into new or existing SAT and cable TV infrastructures.
Connection: 2x straight F connectors
Length: 3 m
Shielding: quadruple, 2x aluminium braid 128x0.12 mm and 2x aluminium foil
Shielding effectiveness: >110 dB
Conductor material: solid copper
Conductor cross-section: 0.78 mm²
Color: black
Compatibility: HD, UHD/4K
Application: SAT and cable TV

Features
Cable length	3 m
Connector 1	F-type
Connector 2	F-type
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector contacts plating	Gold
Product colour	Black
Gain	110 dB
Conductor material	Copper
Outer shield material	Aluminum Mylar
Shielding effectiveness	110 dB
Packaging data
Weight	195 g
Package width	96 mm
Package depth	220 mm
Package height	36 mm
Package weight	224 g
Package volume	800 cm³
Technical data
Plug design	Premium
Article width	1.50cm
Shield dimension	>110dB
Width packaging	0.096m
Side A	F-plug
Outer diameter	7.5mm
Article length	300.00cm
Signal	Audio/Video
Packaging volume	0.0008m³
Article height	1.50cm
Plug version	Normal
Net weight	0.195kg
Weight	0.224kg
Height packaging	0.036m
Side B	F-plug
Length packaging	0.220m
Colour	Black
Shielding	4x shielded
UL
Weight & dimensions
Width	15 mm
Depth	3000 mm
Height	15 mm
Dimensions (WxDxH)	15 x 3000 x 15 mm

---
