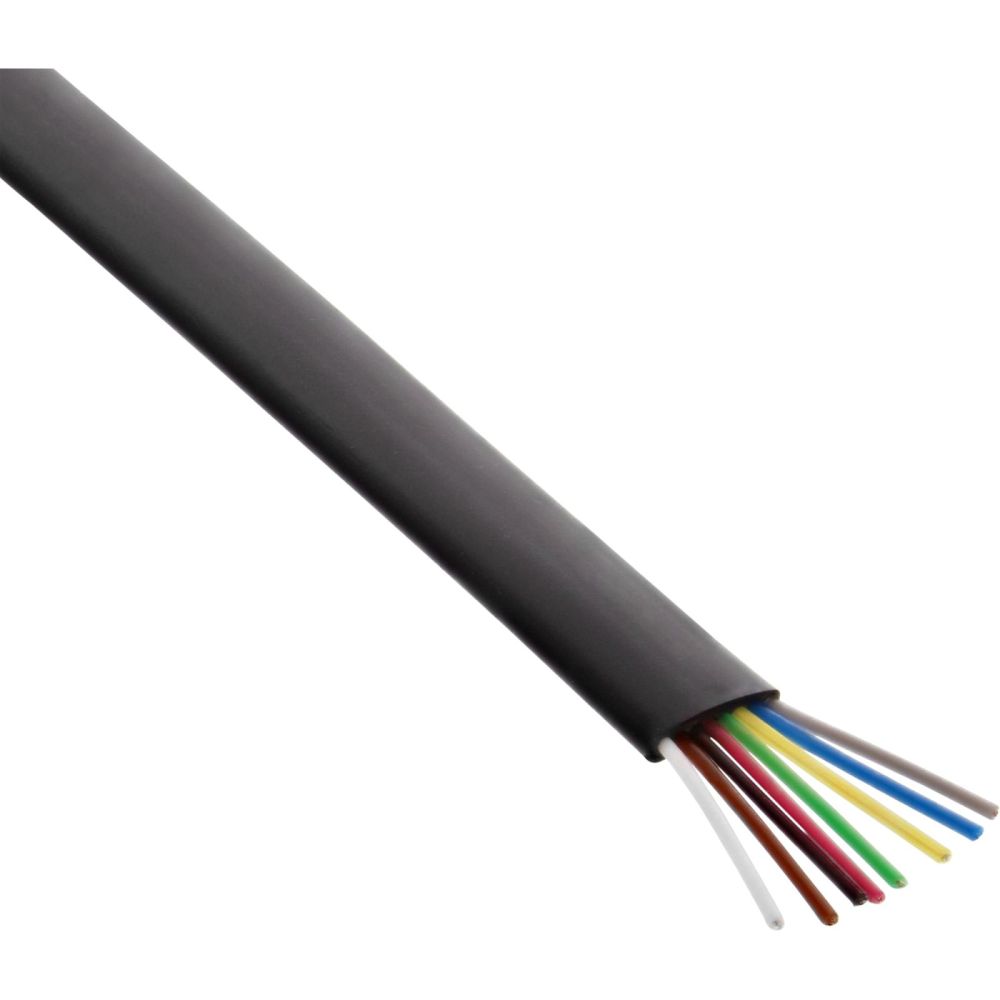

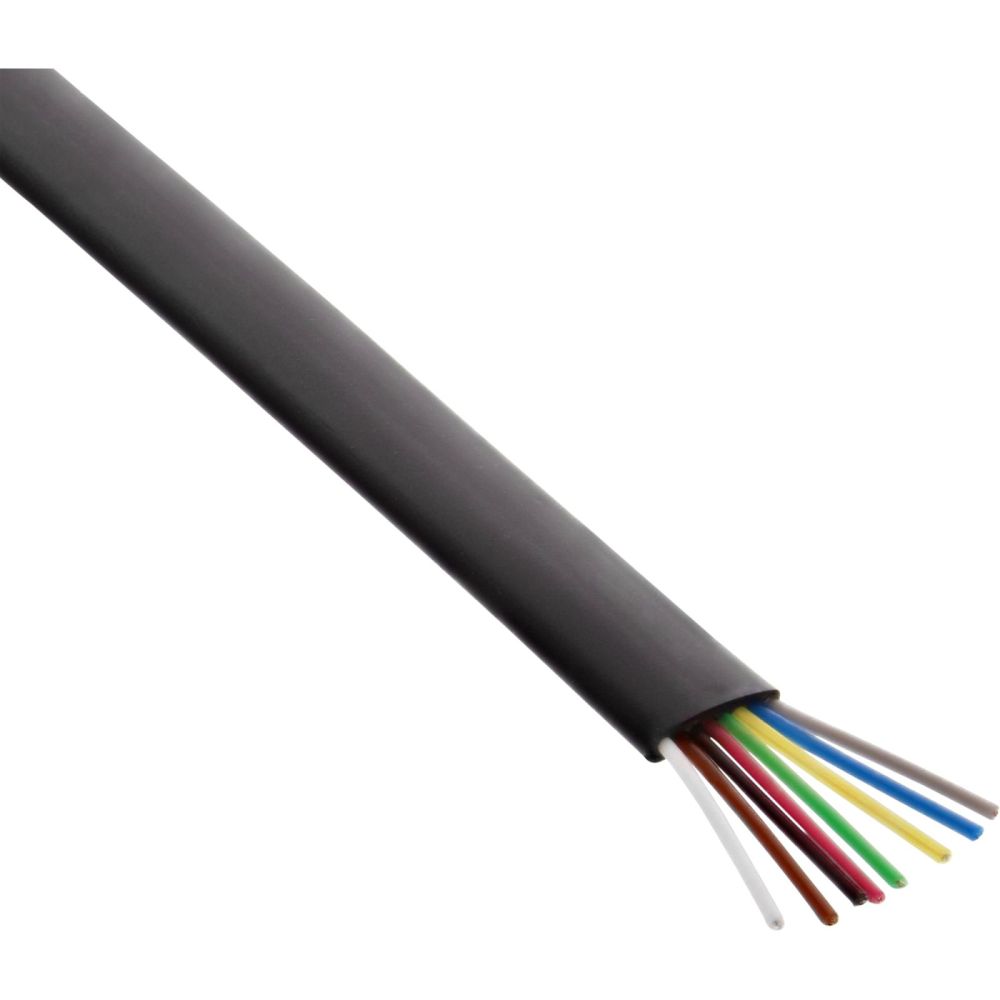

InLine® Modular Cable 8 Wire Ribbon Cable 100m Ring black content_copy

Quickly implement custom cable lengthsCut to length as needed: 100 m ring enables custom-fit lengths without excess.
Space-saving routing: Flat design makes it easier to route in narrow ducts and along edges.
Flexible termination: 8-conductor design for custom pinouts and connector selection.
Practical final assembly: Without connectors for an exact on-site fit.
The 8-conductor flat ribbon cable on a 100 m ring is designed for custom termination. The flat design makes routing easier, and cut-to-length supports clean, requirement-based cable runs.
In on-site installations and service deployments, runs can be quickly adapted and integrated into existing infrastructures. In professional IT environments as well as in companies and public institutions, it supports a structured, project-oriented implementation.
Cable type: modular cable
Form factor: flat ribbon
Conductor count: 8-conductor
Length: 100 m
Color: black
Configuration: without connectors

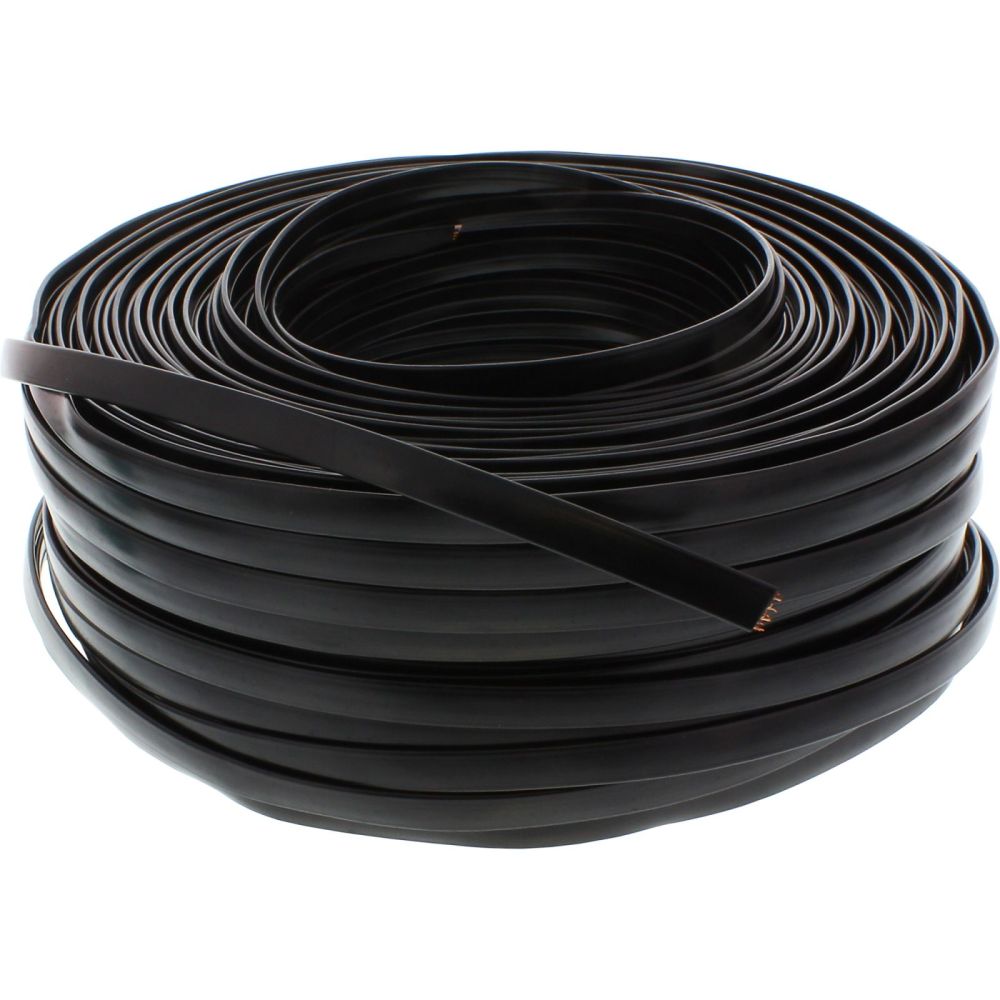

Supply form: ring

Features
Cable length	100 m
Product colour	Black
Packaging data
Weight	2.38 kg
Package width	250 mm
Package depth	250 mm
Package height	61 mm
Package weight	2.38 kg
Package volume	3800 cm³
Technical data
Side A	Without plug
Width packaging	0.250m
Height packaging	0.061m
Net weight	2.379kg
Variant	8-wire
Length packaging	0.250m
Shielding	Unshielded
Packaging volume	0.0038m³
Length	100m
Outer diameter	4.8x2.4mm
Diameter	AWG 28
Weight	2.379kg
Signal	Telephone
Article length	10000.00cm
Side B	Without plug
Colour	Black
UL

---
