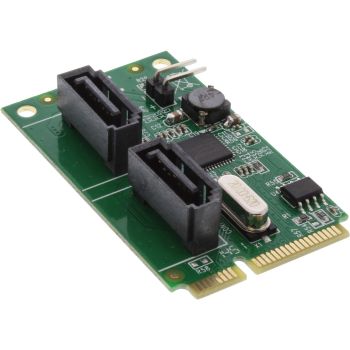

InLine® Mini-PCIe 2.0 Card 2x SATA 6Gb/s RAID 0 / 1 / SPAN
|
28,30 EUR |
|
|
( 33,68 EUR incl. VAT ) ≈ £23.69 | ≈ $31.67 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22195900 |
| Mfg Part No: | 66907 |
| UPC/EAN: | 4043718220656 |
| Weight: | 0.006 kg |
Product information for Inline 66907:
RAID-capable SATA expansion for Mini-PCIe systemsTwo additional SATA ports: Two internal SATA 6 Gb/s ports for HDDs and SSDs.
Flexible data protection and performance: RAID 0, RAID 1 and SPAN directly on the controller.
Efficient protocol support: AHCI 1.3 and NCQ for fast access.
Easy integration into existing slots: Full-size Mini-PCIe card to PCIe 2.0.
This Mini-PCIe 2.0 card adds two internal SATA 6 Gb/s ports to compact systems and allows connection of hard drives and SSDs of SATA generations III, II and I. The integrated RAID function aggregates performance (RAID 0), mirrors data (RAID 1) or combines drives (SPAN), so that storage can be adapted flexibly.
It proves itself in professional IT environments, in on-site installations and in service deployments, especially when existing infrastructures in companies and public institutions have a free Mini-PCI Express slot and are to be expanded with additional storage ports or simple RAID functions.
Ports: 2x SATA 6 Gb/s connectors (L-shaped), internal, vertical
Interface: Mini-PCIe 2.0, x1
Bus bandwidth: up to 2.5 Gb/s
Chipset: ASMedia ASM1061R
Form factor: Full-size Mini-PCIe card
Compliance: PCI Express 2.0 base specifications
SATA standard: Revision 3.2
AHCI version: 1.3
Supported data rates: 6 Gb/s, 3 Gb/s, 1.5 Gb/s
Drive compatibility: SATA III, II, I; HDDs and SSDs
RAID modes: RAID 0, RAID 1, SPAN; automatic rebuild
Boot support: Bootable from the controller
Drivers: Support through integrated drivers in Windows
System requirements: Free Mini-PCI Express slot; Windows 8.1/8/7/Vista
Package contents: Mini-PCIe card 2x SATA 6 Gb/s, manual
Flexible data protection and performance: RAID 0, RAID 1 and SPAN directly on the controller.
Efficient protocol support: AHCI 1.3 and NCQ for fast access.
Easy integration into existing slots: Full-size Mini-PCIe card to PCIe 2.0.
This Mini-PCIe 2.0 card adds two internal SATA 6 Gb/s ports to compact systems and allows connection of hard drives and SSDs of SATA generations III, II and I. The integrated RAID function aggregates performance (RAID 0), mirrors data (RAID 1) or combines drives (SPAN), so that storage can be adapted flexibly.
It proves itself in professional IT environments, in on-site installations and in service deployments, especially when existing infrastructures in companies and public institutions have a free Mini-PCI Express slot and are to be expanded with additional storage ports or simple RAID functions.
Ports: 2x SATA 6 Gb/s connectors (L-shaped), internal, vertical
Interface: Mini-PCIe 2.0, x1
Bus bandwidth: up to 2.5 Gb/s
Chipset: ASMedia ASM1061R
Form factor: Full-size Mini-PCIe card
Compliance: PCI Express 2.0 base specifications
SATA standard: Revision 3.2
AHCI version: 1.3
Supported data rates: 6 Gb/s, 3 Gb/s, 1.5 Gb/s
Drive compatibility: SATA III, II, I; HDDs and SSDs
RAID modes: RAID 0, RAID 1, SPAN; automatic rebuild
Boot support: Bootable from the controller
Drivers: Support through integrated drivers in Windows
System requirements: Free Mini-PCI Express slot; Windows 8.1/8/7/Vista
Package contents: Mini-PCIe card 2x SATA 6 Gb/s, manual
| Design | |
| Product colour | Silver |
| Purpose | PC |
| Internal | |
| Features | |
| Chipset | ASMedia ASM1061R |
| Data transfer rate (max) | 6 Gbit/s |
| Bandwidth | 2.5 Gbit/s |
| RAID levels | 0, 1, SPAN |
| Native Command Queuing (NCQ) | |
| Other features | |
| Data transfer rate | 6000 Mbit/s |
| Dimensions (WxDxH) | 50 x 0.06 x 30 mm |
| Packaging data | |
| Package width | 102 mm |
| Package depth | 135 mm |
| Package height | 20 mm |
| Package weight | 6 g |
| Package volume | 1000 cm³ |
| Manual | |
| Ports & interfaces | |
| Host interface | Mini PCI Express |
| Output interface | SATA |
| Expansion card standard | PCIe 2.0 |
| SATA revision | 3.0 |
| Internal SATA ports quantity | 2 |
| System requirements | |
| Windows operating systems supported | Windows 7 Home Premium, Windows 8, Windows 8.1, Windows Vista Home Premium |
| Technical data | |
| Packaging volume | 0.0010m³ |
| Chipset | ASMedia ASM1061R |
| RAID | 0/1/SPAN |
| Connections external | None |
| Connections internal | 2x SATA 6Gb/s |
| Width packaging | 0.102m |
| Article length | 5.00cm |
| Slot | Mini PCIe |
| Type | Interface card |
| Article height | 1.00cm |
| Height packaging | 0.020m |
| Net weight | 0.006kg |
| Interface | SATA |
| Transmission rate | 6Gb/s |
| Length packaging | 0.135m |
| Article width | 3.00cm |
| Weight | 0.006kg |
| Low Profile | |
| Weight & dimensions | |
| Width | 50 mm |
| Depth | 0.0600 mm |
| Height | 30 mm |
| Weight | 1 kg |
