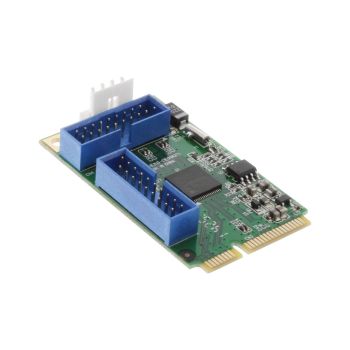

InLine® Mini PCIe Card 4x USB 3.2 Gen.1 Interface Card
|
31,32 EUR |
|
|
( 37,27 EUR incl. VAT ) ≈ £26.21 | ≈ $35.05 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22195921 |
| Mfg Part No: | 66905 |
| UPC/EAN: | 4043718216895 |
| Weight: | 0.236 kg |
Product information for Inline 66905:
Four additional USB 3.2 Gen 1 ports for embedded and micro PCsIntegrate four high-speed ports: Upgrades systems via Mini-PCI Express with 4 USB 3.2 Gen 1 ports.
High data rate up to 5 Gb/s: SuperSpeed transfer for fast storage media and peripherals.
Stable power supply for USB devices: 4-pin floppy power connector supports up to 5 V/900 mA per port.
Easy integration into existing setups: Plug & Play, backward compatible with USB 2.0 and PCI Express 1.0.
With this Mini-PCI Express 2.0 host controller card, you expand embedded and micro PC systems with four USB 3.2 Gen 1 ports. Two 19-pin motherboard headers each provide two independent ports and deliver SuperSpeed transfers up to 5 Gb/s. Compliance with USB 3.2 Gen 1 and xHCI 1.0 provides reliable connectivity, and the additional 4-pin floppy power connector supports power-hungry USB devices without their own power supply.
The card proves its strengths especially in professional IT environments, on-site installations, and in service deployments. It also enables a space-saving, standards-compliant expansion in existing infrastructures of companies and public institutions as well as in industrial applications, without extensive modifications.
Interface: Mini-PCI Express 2.0 (x1)
USB ports: 4x USB 3.2 Gen 1 via 2x 19-pin motherboard headers
Data rate: up to 5 Gb/s
Backward compatibility: USB 2.0, PCI Express 1.0
Specifications: USB 3.2 Gen 1, Intel xHCI 1.0, PCI Bus Power Management 1.2, PCI-E Mini Card 1.2, Full-Mini (F1)
Chipset: Renesas uPD720201
Power supply: 4-pin floppy power connector required
Power per port: 5 V/900 mA
Operating systems: Windows 7, Vista, XP, Server 2003/2008 (32/64-bit)
Scope of delivery: Mini-PCIe card, 2x dual USB internal cables approx. 80 cm, manual, driver CD
High data rate up to 5 Gb/s: SuperSpeed transfer for fast storage media and peripherals.
Stable power supply for USB devices: 4-pin floppy power connector supports up to 5 V/900 mA per port.
Easy integration into existing setups: Plug & Play, backward compatible with USB 2.0 and PCI Express 1.0.
With this Mini-PCI Express 2.0 host controller card, you expand embedded and micro PC systems with four USB 3.2 Gen 1 ports. Two 19-pin motherboard headers each provide two independent ports and deliver SuperSpeed transfers up to 5 Gb/s. Compliance with USB 3.2 Gen 1 and xHCI 1.0 provides reliable connectivity, and the additional 4-pin floppy power connector supports power-hungry USB devices without their own power supply.
The card proves its strengths especially in professional IT environments, on-site installations, and in service deployments. It also enables a space-saving, standards-compliant expansion in existing infrastructures of companies and public institutions as well as in industrial applications, without extensive modifications.
Interface: Mini-PCI Express 2.0 (x1)
USB ports: 4x USB 3.2 Gen 1 via 2x 19-pin motherboard headers
Data rate: up to 5 Gb/s
Backward compatibility: USB 2.0, PCI Express 1.0
Specifications: USB 3.2 Gen 1, Intel xHCI 1.0, PCI Bus Power Management 1.2, PCI-E Mini Card 1.2, Full-Mini (F1)
Chipset: Renesas uPD720201
Power supply: 4-pin floppy power connector required
Power per port: 5 V/900 mA
Operating systems: Windows 7, Vista, XP, Server 2003/2008 (32/64-bit)
Scope of delivery: Mini-PCIe card, 2x dual USB internal cables approx. 80 cm, manual, driver CD
| Design | |
| Product colour | Black |
| Internal | |
| Features | |
| Plug and Play | |
| Other features | |
| Data transfer rate | 5000 Mbit/s |
| Packaging data | |
| Cables included | USB |
| Package width | 177 mm |
| Package depth | 144 mm |
| Package height | 40 mm |
| Package weight | 170 g |
| Package volume | 1000 cm³ |
| Drivers included | |
| Manual | |
| Ports & interfaces | |
| Host interface | Mini PCI Express |
| Output interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| System requirements | |
| Windows operating systems supported | Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8.1, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium |
| Server operating systems supported | Windows Server 2003, Windows Server 2003 R2, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 R2 x64 |
| Technical data | |
| Connections internal | 2x 19pin mainboard socket (for 4x USB-A) |
| Length packaging | 0.144m |
| Height packaging | 0.040m |
| USB specification | USB 3.2 Gen.1 |
| Chipset | Renesas uPD720201 |
| Width packaging | 0.177m |
| Slot | Mini PCIe |
| Packaging volume | 0.0010m³ |
| Net weight | 0.170kg |
| Type | Interface card |
| Connections external | None |
| Interface | USB 3.2 Gen.1 |
| Weight | 0.236kg |
| Transmission rate | 5Gb/s |
| Low Profile | |
| Weight & dimensions | |
| Depth | 2.36 mm |
| Weight | 170 g |
