InLine® Mini-PCIe Card 2x USB 3.2 Gen.1 content_copy

Fast USB expansion for embedded and micro PCs via Mini-PCIeProvide two USB ports internally: 19-pin motherboard header for two USB 3.2 Gen 1 ports.
High data rate up to 5 Gb/s: SuperSpeed transfers for fast peripherals.
Compact installation in tight enclosures: Mini-PCI Express x1 in Full-Mini (F1) form factor.
Stable powering of power-hungry devices: 4-pin floppy power connector and up to 5 V/900 mA per port.
Quick setup: Plug & Play and backward compatible with USB 2.0.

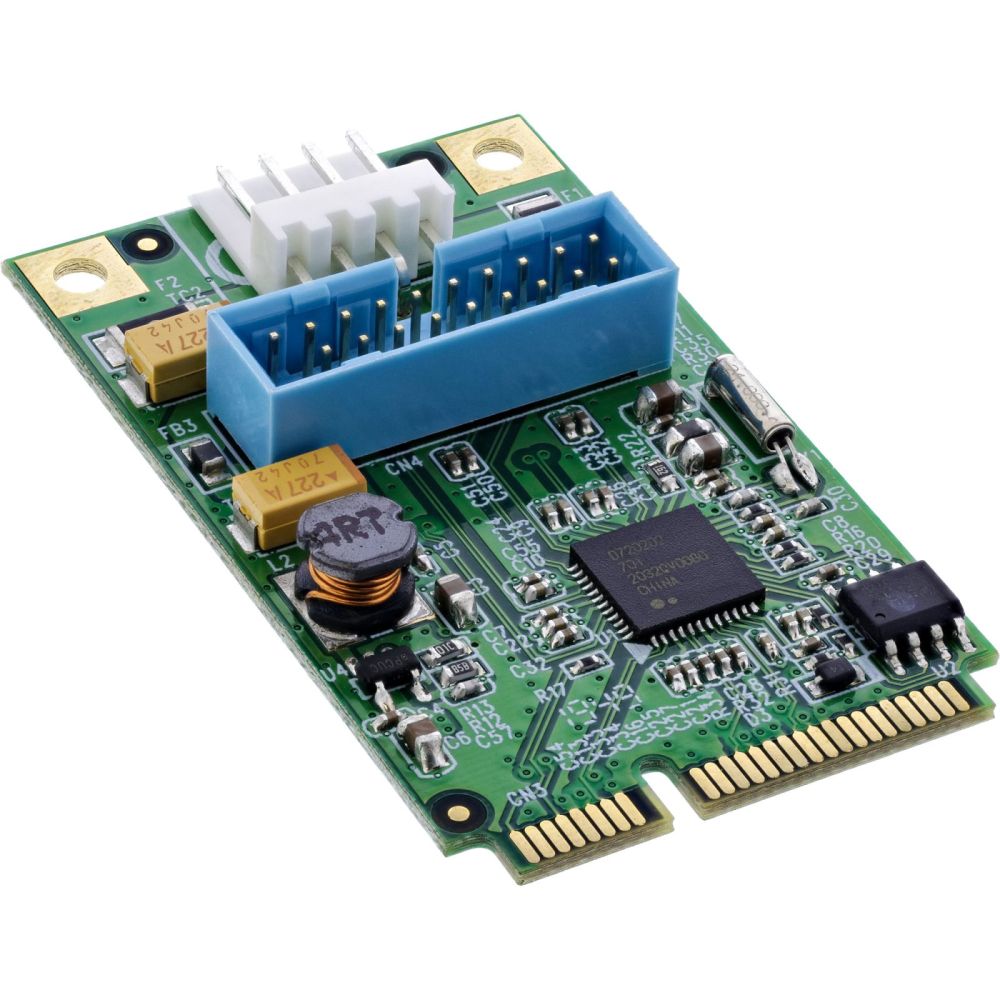

This Mini-PCIe card connects two USB 3.2 Gen 1 ports via an internal 19-pin motherboard header and adds SuperSpeed USB up to 5 Gb/s to compact systems. The native single-chip design and support for PCI Express Gen 2 reliably provide a stable connection, while the additional 4-pin power connector enables operation of power-intensive USB devices.

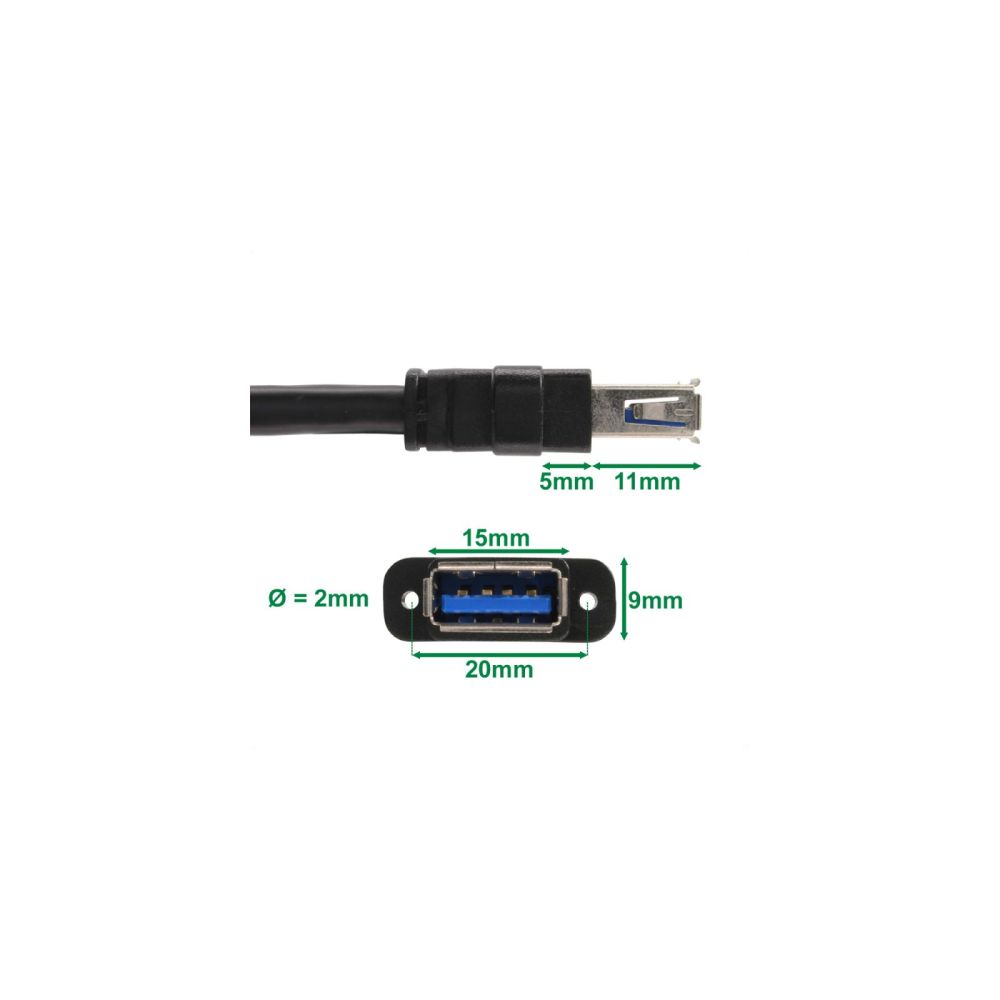

In professional IT environments and in on-site installations, the card can be integrated in a space-saving manner into embedded and micro PCs and routes the two ports via the included dual USB cable to front or slot brackets. This supports the flexible expansion of existing infrastructures in companies and public institutions as well as efficient service deployments.
Connection: 1x internal USB 3.2 Gen 1 motherboard header, 19-pin (for 2 ports)
Interface: Mini-PCI Express x1, Gen 2
Data rate: up to 5 Gb/s
Compatibility: Backward compatible with USB 2.0, compatible with PCI Express 1.0
Form factor: Full-Mini (F1)
Power connector: 4-pin floppy
Output power per port: max. 5 V/900 mA

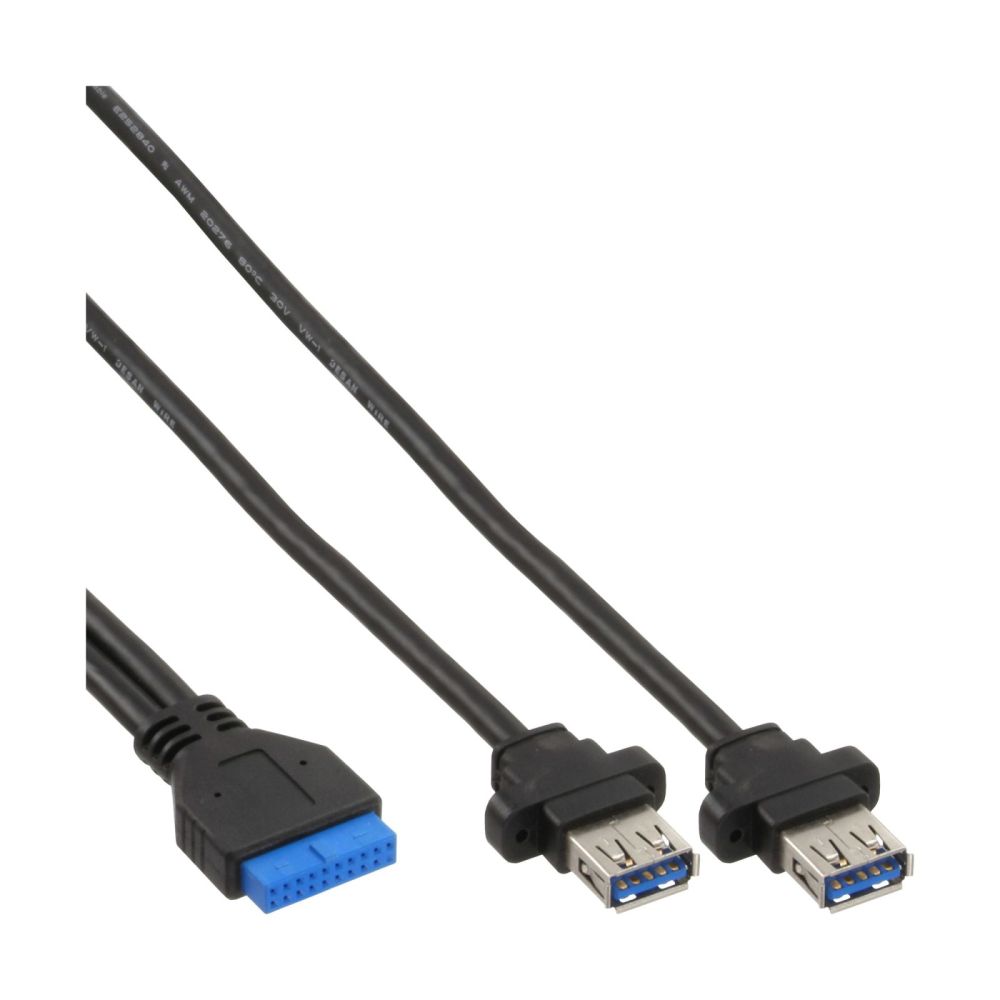

Scope of delivery: Mini-PCIe card, dual USB internal cable approx. 80 cm, manual, driver CD

Design
Internal
Features
Plug and Play
Other features
Data transfer rate	5000 Mbit/s
Connectivity technology	Wired
Compatible operating systems	Windows 7 / Vista / XP / Server 2003-2008 32/64-bit
Mac compatibility
Packaging data
Package width	143 mm
Package depth	175 mm
Package height	40 mm
Package weight	91 g
Package volume	1000 cm³
Ports & interfaces
Host interface	Mini PCI Express
Output interface	USB 3.2 Gen 1 (3.1 Gen 1)
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
CardBus PCMCIA slot type
Technical data
Height packaging	0.040m
Packaging volume	0.0010m³
Chipset	Renesas 0720202
Interface	USB 3.2 Gen.1
Width packaging	0.143m
Transmission rate	5Gb/s
Connections internal	19pin mainboard socket (for 2x USB-A)
USB specification	USB 3.2 Gen.1
Net weight	0.091kg
Length packaging	0.175m
Connections external	None
Slot	Mini PCIe
Weight	0.152kg
Type	Interface card
Low Profile
Technical details
Compliance certificates	RoHS
Weight & dimensions
Depth	1.52 mm
Weight	91 g

---
