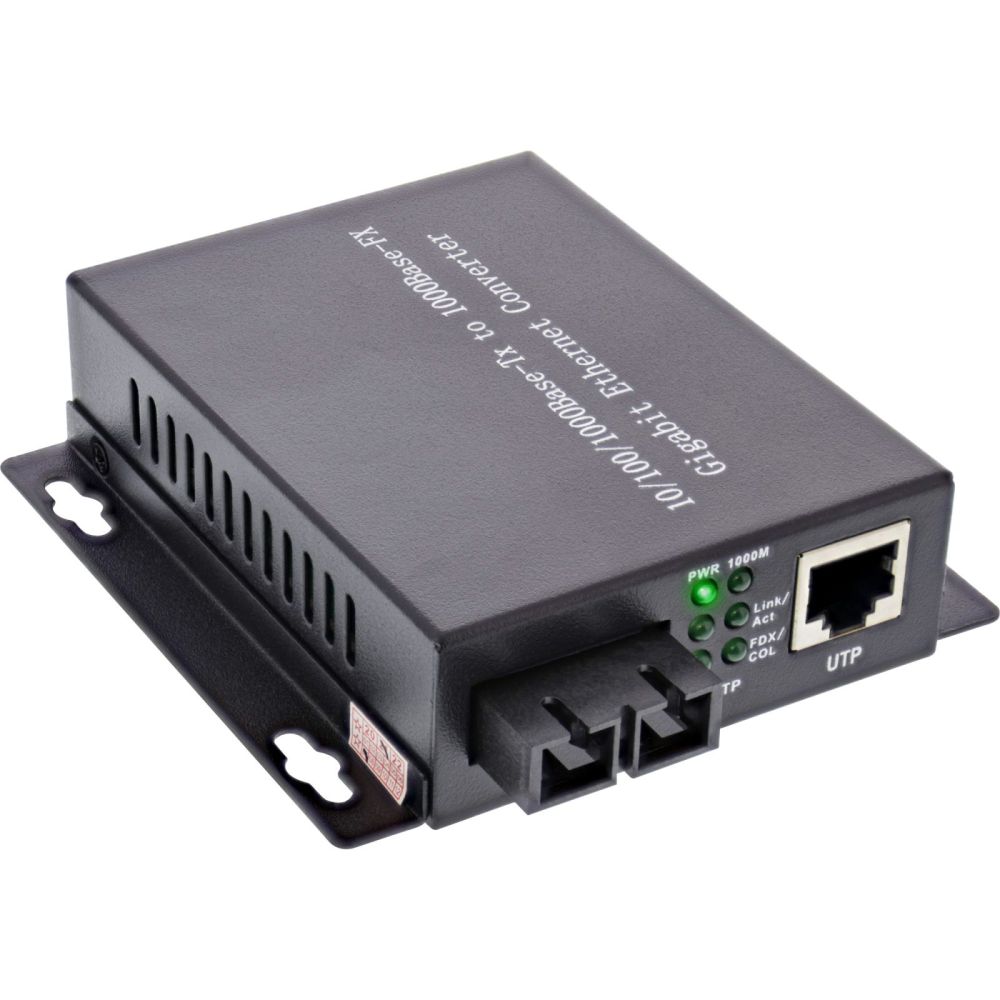

InLine® Network Media Converter 10/100/1000Mb/s TP to FO (SC Duplex), SM, 20km content_copy

Gigabit fiber bridge for long distances in existing RJ45 networksCopper-to-fiber bridging over long distances: Converts 10/100/1000Base-T to 1000Base-FX for connecting remote locations.
Easy integration without re-cabling: Connect existing RJ45 cabling with SC duplex fiber.
Rapid deployment in the field: Auto MDI/MDI-X and automatic duplex negotiation save time.
Faster troubleshooting and higher availability: Link Fault Pass Through indicates line interruptions.
Transparent operation in enterprise networks: Support for common IEEE standards including VLAN and QoS.
The media converter connects copper networks with fiber links and converts 10/100/1000Base-T transparently to 1000Base-FX. This allows you to extend existing structures without structural changes and reliably connect remote segments or buildings. Status LEDs indicate power, link, and activity and support fast diagnosis in operation.
In professional IT environments, for on-site installations and service deployments, the compact device integrates seamlessly into existing infrastructures of companies and public institutions. It can be placed at the workstation or in the patch panel and continues to use the existing cabling efficiently.
Connection: 1x RJ45 10/100/1000Base-T, 1x SC duplex (singlemode)
Conversion: 10/100/1000Base-T to 1000Base-FX
Wavelength: TX 1310 nm
Range: up to 20 km
Functions: Auto MDI/MDI-X, Auto-Negotiation full/half duplex, Link Fault Pass Through (LFP)
Indicators: status LEDs for power, link, activity
Standard: IEEE 802.3 10Base-T, IEEE 802.3u 10/100Base-TX/X, IEEE 802.1q, IEEE 802.1p QoS, IEEE 802.1d, IEEE 802.3z, IEEE 802.3ab

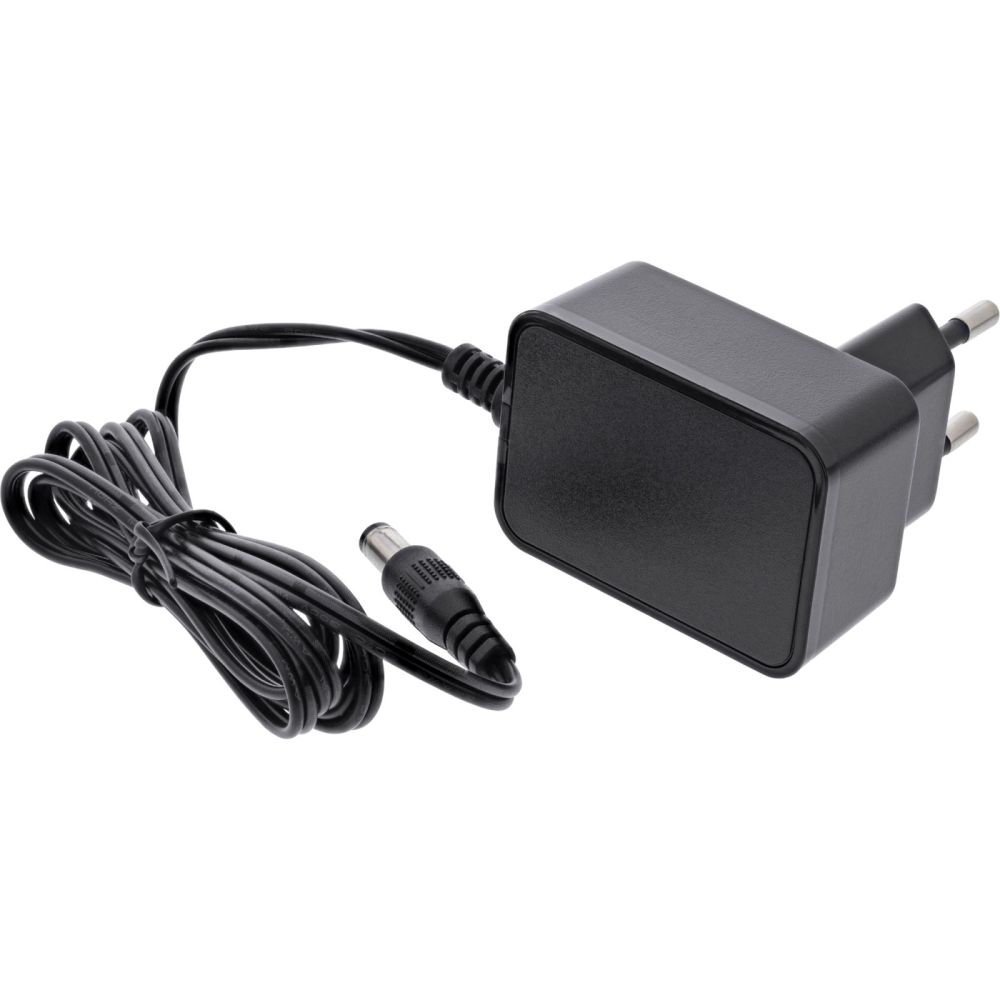

Power: external switching power supply 5 V DC/1 A
Operating temperature: 0-+60 °C
Storage temperature: -20-+70 °C

Certificates
Certification	FCC
Features
LED indicators	Activity, Power, Status
Product colour	Black
Internal
Network
Maximum data transfer rate	1000 Mbit/s
Converter input interface	100Base-TX, 1000Base-TX
Converter output interface	1000Base-FX
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Copper ethernet cabling technology	10BASE-TX, 100BASE-TX, 1000BASE-TX
Fiber ethernet cabling technology	1000BASE-FX
Duplex system	Full, Half
Supported network protocols	QoS
Auto MDI/MDI-X
Auto-negotiation
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-20 - 70 °C
Other features
Dimensions (WxDxH)	70 x 95 x 25 mm
Packaging content
AC adapter included
Packaging data
Package width	120 mm
Package depth	230 mm
Package height	50 mm
Package volume	1400 cm³
Package weight	323 g
Package type	Box
Performance
Maximum transfer distance	20 m
Wavelength	1310 nm
Fiber mode structure	Single-mode
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	2
Fiber optic connector	SC
DC-in jack
Power
Input voltage	5 V
Input current	1 A
External power adapter
Technical data
Max. distance	20km
Width packaging	0.120m
Storage temperature	-20 to +70°C
Output	SC Duplex
Wavelength	1310nm
Transmission speed	10/100/1000Mb/s
Type	Media converter
Article width	7.00cm
Operation temperature	0 to +60°C
Length packaging	0.230m
Height packaging	0.050m
Article height	2.50cm
Fibre type	Single mode
Packaging volume	0.0014m³
Article length	9.50cm
Input	RJ45
Net weight	0.177kg
Weight	0.323kg
Weight & dimensions
Width	70 mm
Depth	95 mm
Height	25 mm
Weight	177 g

---
