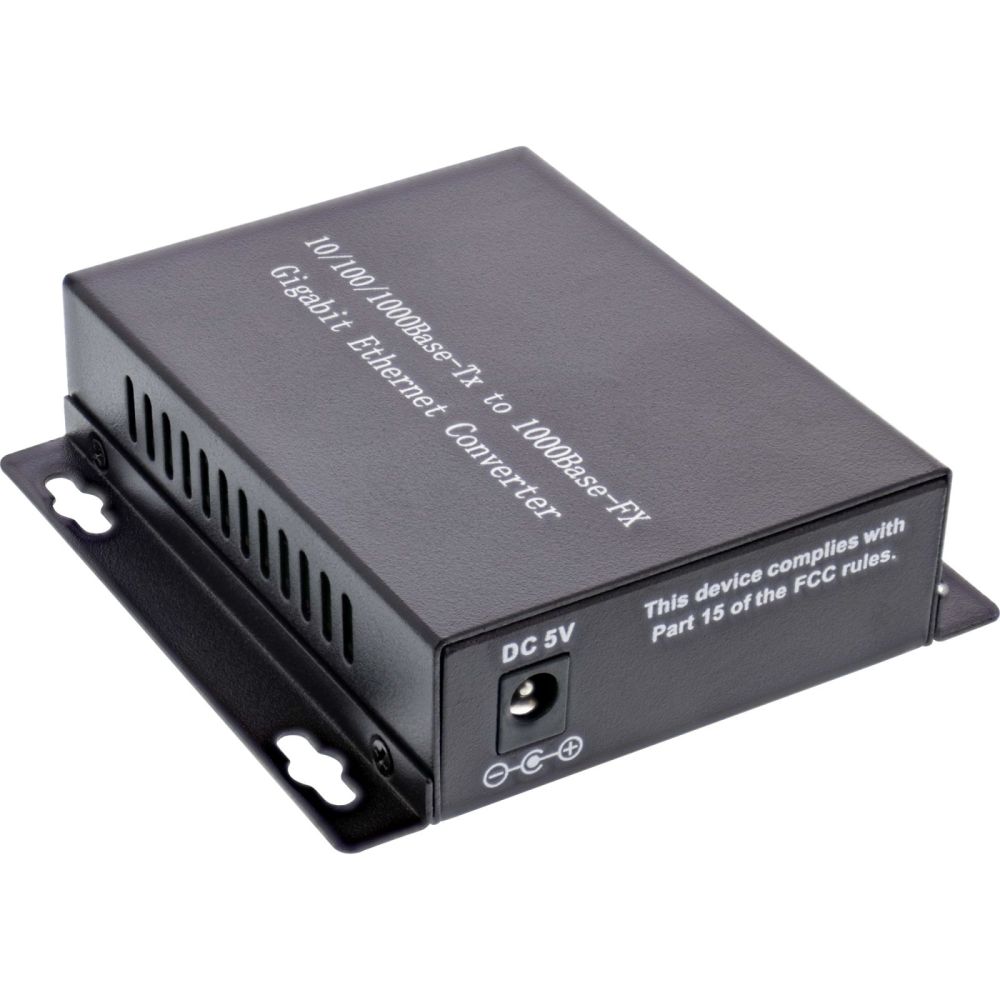

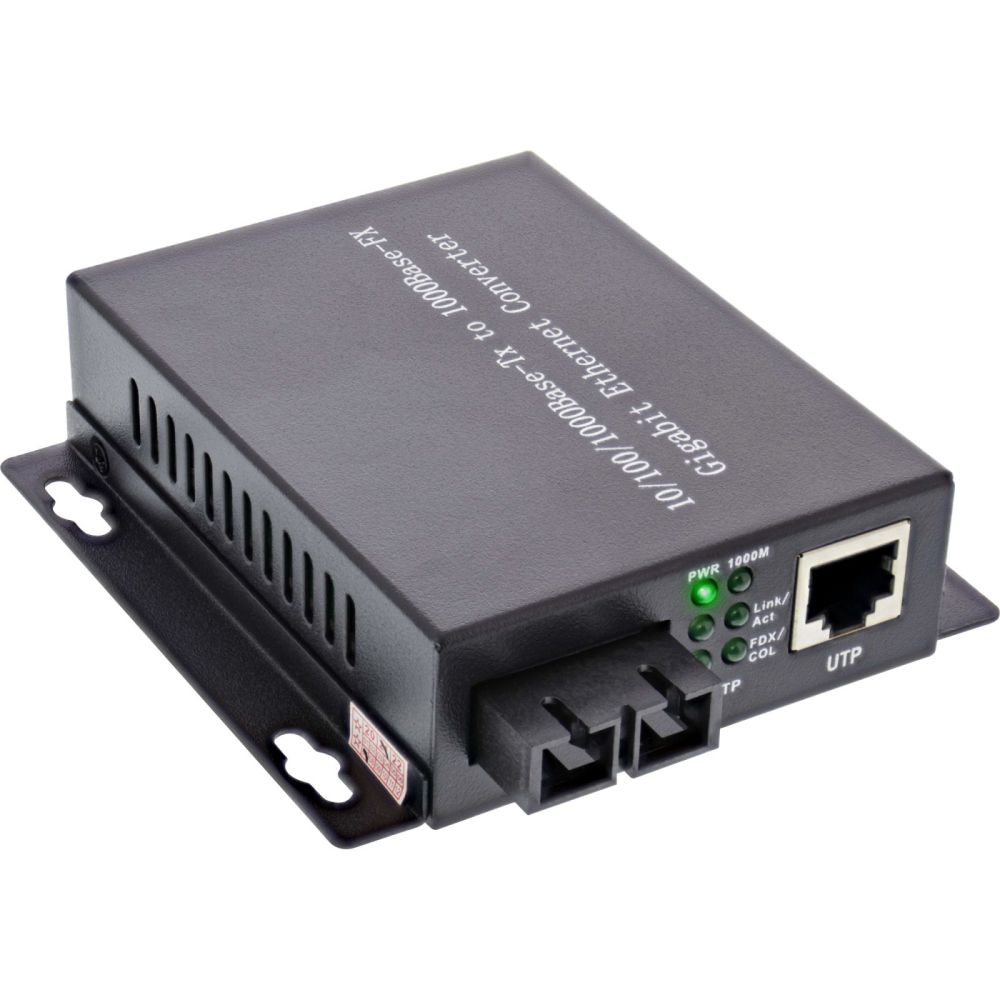

InLine® Network Media Converter 10/100/1000Mb/s TP to FO (SC Duplex), MM, 550m content_copy

Gigabit fiber bridge up to 550 m for existing networksFiber reach up to 550 m: Connect remote segments over multimode 1310 nm.
Seamless migration without re-cabling: Convert RJ45 to SC Duplex and integrate copper and fiber links.
Gigabit on the copper port, 1000Base-FX over fiber: Auto MDI/MDI-X and auto-negotiation make setup easier.
Fast diagnostics and maintenance: Status LEDs and Link Fault Pass Through provide clear indications in case of faults.
With this compact media converter you convert 10/100/1000Base-T to 1000Base-FX with SC Duplex and extend networks over fiber, for example for building interconnection or bridging up to 550 m. Your existing copper cabling remains untouched; the conversion is carried out without structural changes and enables quick commissioning.
In professional IT environments, in on-site installations and in service operations, you can also place the device in desktop environments thanks to its compact design. Status indicators simplify monitoring in existing infrastructures of companies and public institutions.
Ports: 1x RJ45 port (10/100/1000Base-T), 1x SC Duplex (1000Base-FX, multimode)
Wavelength: TX 1310 nm
Range: up to 550 m
Standards: IEEE802.3 10Base-T, IEEE802.3u 10/100Base-TX/X, IEEE802.1q, IEEE802.1p QoS, IEEE802.1d, IEEE802.3z, IEEE802.3ab
Features: Auto MDI/MDI-X, automatic negotiation of full and half duplex, Link Fault Pass Through (LFP)
Status LEDs: Power, Link, Activity

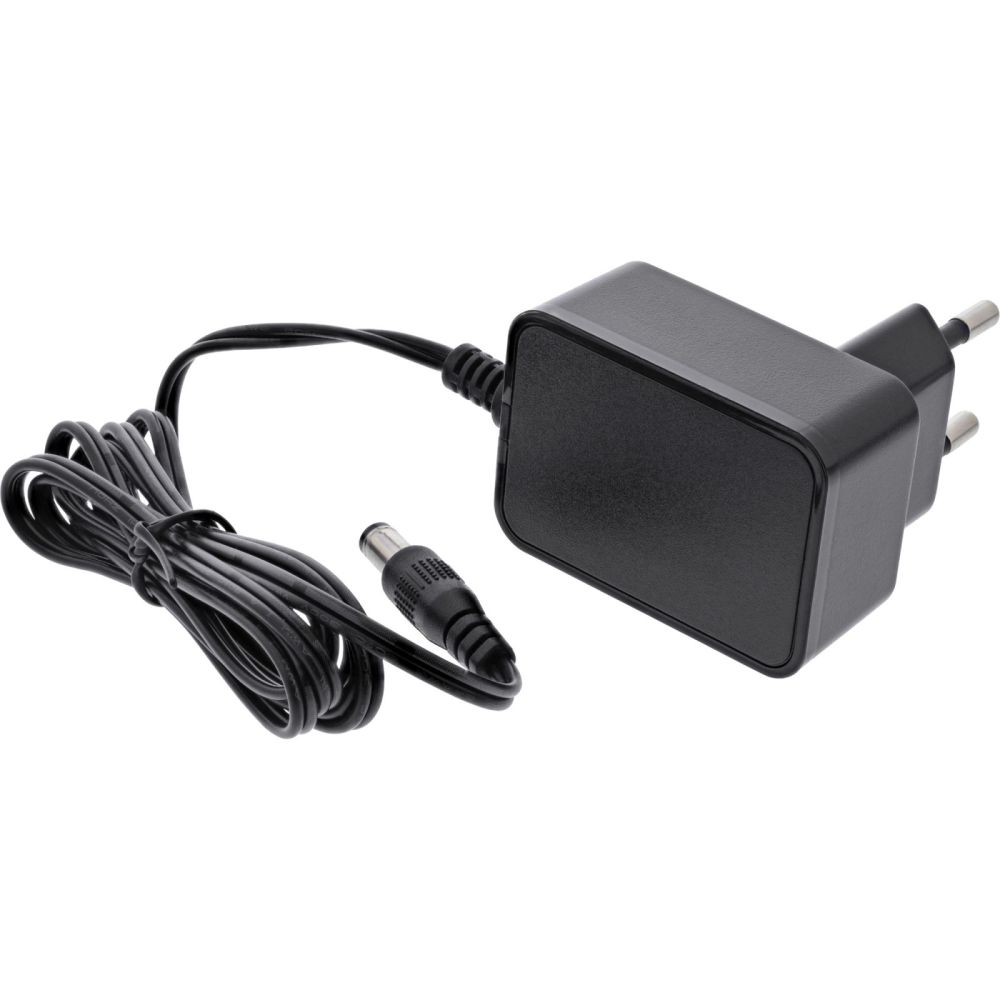

Power supply: External switching power supply 5 V DC/1 A
Operating temperature: 0-60 °C
Storage temperature: -20-70 °C

Certificates
Certification	FCC
Features
LED indicators	Activity, Power, Status
Product colour	Black
Internal
Network
Maximum data transfer rate	1000 Mbit/s
Converter input interface	100Base-TX, 1000Base-TX
Converter output interface	1000Base-FX
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Copper ethernet cabling technology	10BASE-TX, 100BASE-TX, 1000BASE-TX
Fiber ethernet cabling technology	1000BASE-FX
Duplex system	Full, Half
Supported network protocols	QoS
Auto MDI/MDI-X
Auto-negotiation
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-20 - 70 °C
Other features
Dimensions (WxDxH)	70 x 95 x 25 mm
Packaging content
AC adapter included
Packaging data
Package width	120 mm
Package depth	230 mm
Package height	50 mm
Package volume	1400 cm³
Package weight	310 g
Package type	Box
Performance
Maximum transfer distance	550 m
Wavelength	1310 nm
Fiber mode structure	Multi-mode
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	2
Fiber optic connector	SC
DC-in jack
Power
Input voltage	5 V
Input current	1 A
External power adapter
Technical data
Output	SC Duplex
Transmission speed	10/100/1000Mb/s
Wavelength	1310nm
Type	Media converter
Article width	7.00cm
Weight	0.310kg
Operation temperature	0 to +60°C
Width packaging	0.120m
Storage temperature	-20 to +70°C
Input	RJ45
Net weight	0.177kg
Max. distance	550m
Height packaging	0.050m
Article height	2.50cm
Packaging volume	0.0014m³
Article length	9.50cm
Fibre type	Multi mode
Length packaging	0.230m
Weight & dimensions
Width	70 mm
Depth	95 mm
Height	25 mm
Weight	177 g

---
