InLine® PCI Multi I/O Controller Card 4 DB9 Serial Ports content_copy

Easily add four serial ports via PCIFour ports for existing peripherals: Connect 4x 9-pin serial devices simultaneously.
Fast integration into the PC: Automatic IRQ and I/O assignment and PCI IRQ sharing.
Stable communication under load: 16C550-compatible UARTs with 256-byte FIFO.
Flexible settings: Hardware and software flow control and 5-9-bit formats.
Wide operating system support: Windows 2000 to 7 (32/64-bit) and Linux kernel from 2.6.14.

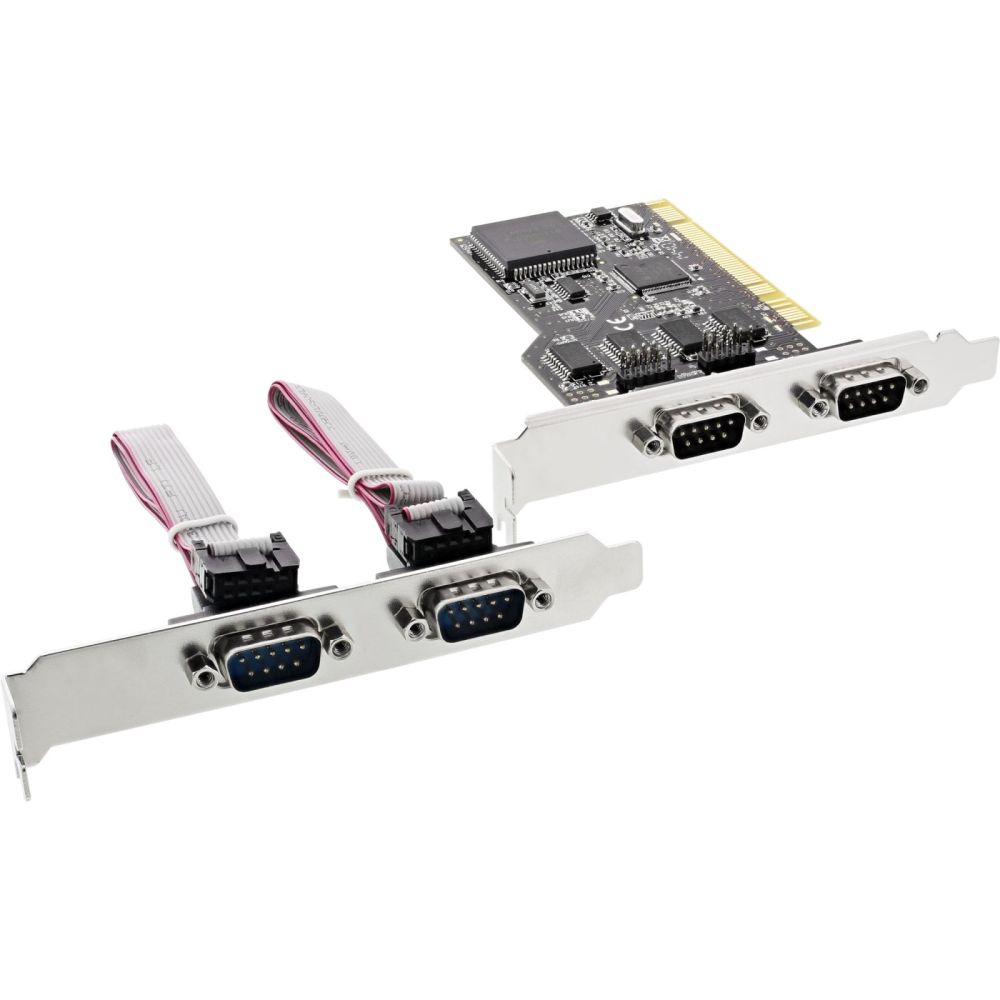

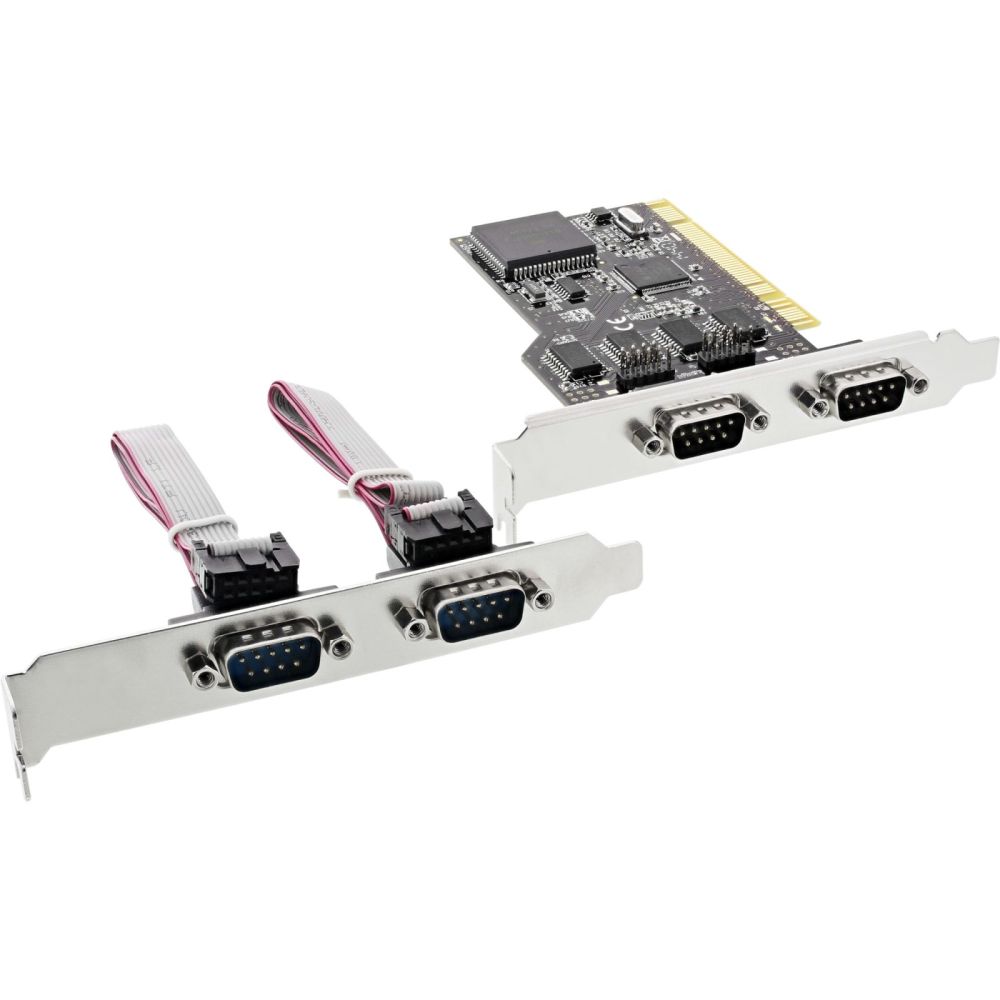

With this PCI interface card, you add four 9-pin serial ports to desktop PCs to continue using proven devices such as modems, IR receivers, data cables, or ISDN systems. Setup is via the 32-bit PCI slot, resources such as IRQ and I/O addresses are assigned automatically. 16C550-compatible UARTs with 256-byte FIFO support stable data transfers up to 115.2 kb/s and reduce system load during continuous transmission.
In professional IT environments, for on-site installations and in service deployments, the card enables reliable operation of serial measurement, control, and automation technology in existing infrastructures of companies and public institutions. Note: Obtain drivers only from trusted sources; earlier references to 'Drivers-Download' are outdated and should not be used.
Ports: 4x 9-pin serial
Bus: PCI 32-bit
Specification: PCI 2.3
Power management: PCI power management
Controller: MCS9865
UART: 16C550 compatible
FIFO: 256 byte
Data transfer rate: up to 115.2 kb/s
Flow control: hardware and software
Serial format: 5, 6, 7, 8, 9 bit
Resources: IRQ and I/O automatic
PCI IRQ sharing: supported
Operating systems: Windows 2000, 2003 Server 32/64-bit, XP 32/64-bit, Vista 32/64-bit, 7 32/64-bit, Linux kernel from 2.6.14

Features
Chipset	MCS9865
Data transfer rate (max)	0.1152 Gbit/s
Other features
Data transfer rate	115.2 Mbit/s
Ports quantity	4
Connectivity technology	Wired
Compatible operating systems	DOS 6.22 Windows 2000, XP 32/64-bit, Server 2003 32/64-bit, Vista 32/64-bit, Server 2008 32/64-bit Linux kernel 2.6.14+
Mac compatibility
Packaging data
Package width	143 mm
Package depth	176 mm
Package height	42 mm
Package weight	117 g
Package volume	1100 cm³
Ports & interfaces
Host interface	PCI
Serial ports quantity	4
Technical data
Transmission rate	115.2Kb/s
Chipset	Moschip MCS9865
Connections external	4x 9pin serial
Slot	PCI
Height packaging	0.042m
Net weight	0.117kg
Length packaging	0.176m
Interface	Serial
Connections internal	None
Type	Interface card
Packaging volume	0.0011m³
Width packaging	0.143m
Weight	0.185kg
Low Profile
Weight & dimensions
Depth	1.85 mm
Weight	117 g

---
