InLine® PCI Multi I/O Controller Card 2 DB9 Serial Ports content_copy

Easily add two serial ports via PCITwo serial ports ready to use: Add two 9-pin ports via PCI for existing devices.
Fast setup without manual resource selection: IRQ and I/O address are selected automatically.
Stable transmission even under load: 16C550-compatible UARTs and 256 byte FIFO deliver up to 115.2 kb/s.
Smooth multi-card operation: PCI IRQ sharing enables parallel use of additional interface cards.
Flexible in use: Hardware and software flow control and 5- to 9-bit formats support different devices.

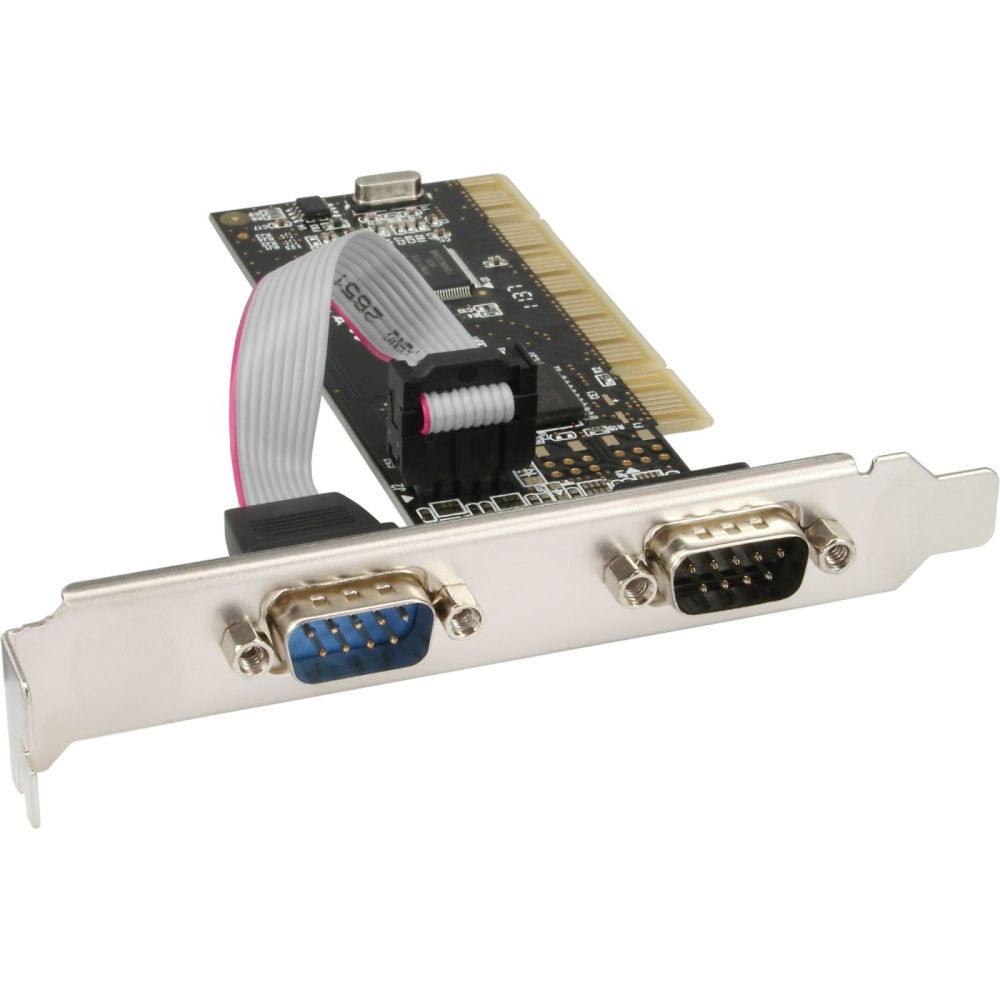

The PCI interface card adds two 9-pin serial ports to PCs and reliably integrates serial modems, IR receivers, PDA cables, mobile phone data cables, or ISDN systems. Automatic resource allocation speeds up installation, while 16C550-compatible UARTs with 256 byte FIFO enable stable data flows up to 115.2 kb/s.
In professional IT environments, for on-site installations, in service deployments, and in existing infrastructures of companies and public institutions, the card facilitates continued operation of serial peripherals and reduces effort for expansions without a system change.
Ports: 2x 9-pin serial
Bus: PCI 32 bit
Standard: PCI 2.3
Power management: PCI power management
Chipset: MCS9865
UART: 16C550 compatible
FIFO: 256 byte
Data transfer rate: up to 115.2 kb/s
Flow control: hardware and software
Serial formats: 5-, 6-, 7-, 8-, 9-bit
Operating systems: Windows 2000, Windows 2003 Server 32/64-bit, Windows XP 32/64-bit, Windows Vista 32/64-bit, Linux kernel from 2.6.14
PCI IRQ sharing: supported
Resources: IRQ and I/O address automatically selected

Features
Chipset	MCS9865
Data transfer rate (max)	0.1152 Gbit/s
Other features
Data transfer rate	115.2 Mbit/s
Ports quantity	2
Connectivity technology	Wired
Compatible operating systems	DOS 6.22 Windows 2000, XP 32/64-bit, Server 2003 32/64-bit, Vista 32/64-bit, Server 2008 32/64-bit Linux kernel 2.6.14+
Mac compatibility
Packaging data
Package width	146 mm
Package depth	179 mm
Package height	39 mm
Package weight	65 g
Package volume	1000 cm³
Ports & interfaces
Host interface	PCI
Serial ports quantity	2
Connector(s)	9pin
Technical data
Interface	Serial
Connections external	2x 9pin serial
Slot	PCI
Transmission rate	115.2Kb/s
Chipset	Moschip MCS9865
Height packaging	0.039m
Net weight	0.065kg
Packaging volume	0.0010m³
Length packaging	0.179m
Connections internal	None
Width packaging	0.146m
Weight	0.130kg
Type	Interface card
Low Profile
Weight & dimensions
Depth	1.3 mm
Weight	65 g

---
