Inline 66630I ® interface card, 1x LPT parallel, PCI
|
13,29 EUR |
|
|
( 15,82 EUR incl. VAT ) ≈ £11.12 | ≈ $14.87 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| End-Of-Life: | 26. Jul 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 786073 |
| Mfg Part No: | 66630I |
| UPC/EAN: | 4043718122615 |
| Weight: | 0.128 kg |
Further Serial/Parallel from InlineFurther products in category Serial/Parallel
All products of Inline

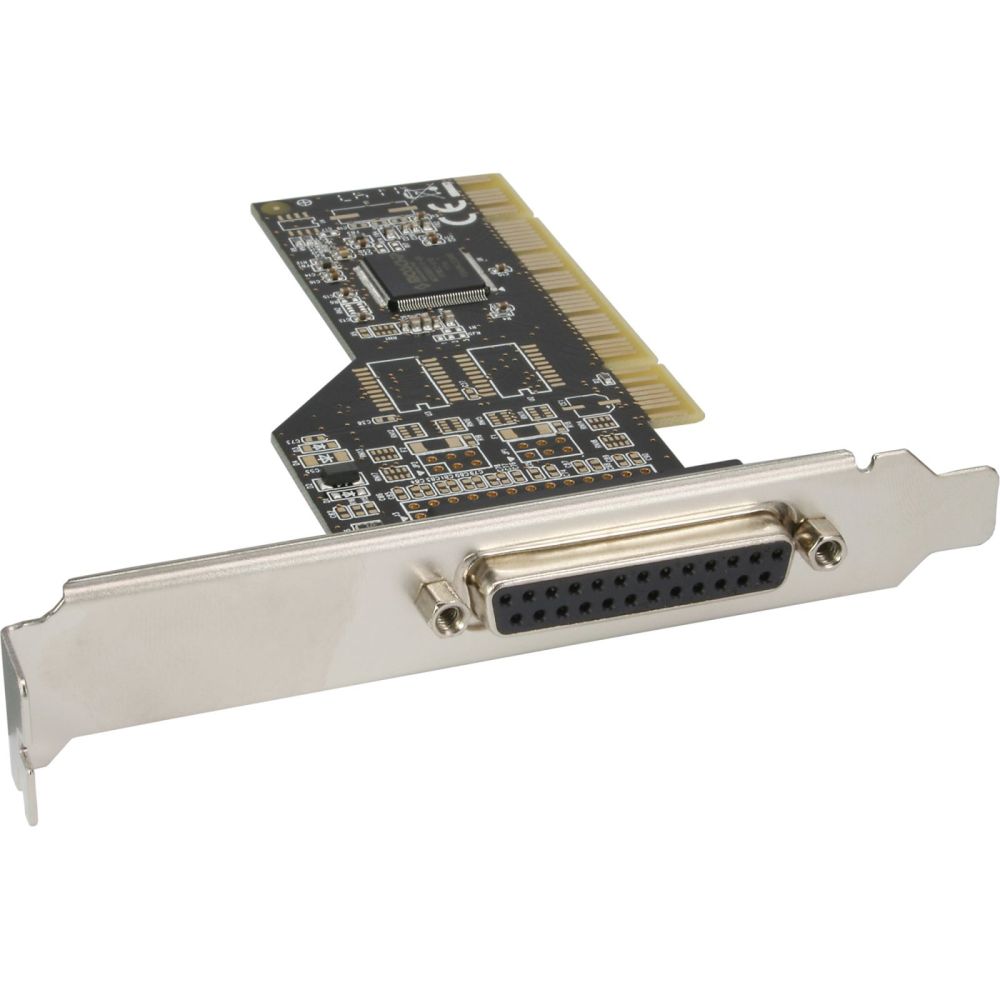

Product information for Inline 66630I:
Retrofit a parallel interface via PCI for existing devicesEasily add a parallel port: If an LPT port is missing, the PCI card provides an IEEE1284 port.
Multiple modes for different devices: Supports SPP, PS2, EPP and ECP 1.9.
Fast data transfer: Up to 1.5 MB/s for printers and automation.
Resource-efficient integration: PCI IRQ sharing and power management simplify operation.
The card adds a full-featured parallel LPT port according to IEEE1284 to desktop PCs. This allows you to continue integrating parallel-connected peripherals such as printers or automation devices. Automatic selection of IRQ and I/O address simplifies setup, while a 256 byte FIFO and data rates up to 1.5 MB/s deliver reliable, smooth data transfer.
In professional IT environments and existing infrastructures, the card enables seamless continued use of proven devices, for example in on-site installations and service deployments in companies and public institutions.
Port: 1x LPT (parallel), IEEE1284
Bus: PCI
Specification: PCI Local Bus 2.3
Modes: SPP, PS2, EPP, ECP 1.9
Data rate: up to 1.5 MB/s
FIFO: 256 bytes
Chipset: MCS9865
Functions: PCI power management, PCI IRQ sharing
Resource allocation: automatic (IRQ and I/O address)
Multi-card operation: multiple cards per PC
Operating systems: DOS 6.22; Windows 2000/XP 32/64-bit/Server 2003 32/64-bit/Vista 32/64-bit/Server 2008 32/64-bit; Linux kernel 2.6.14 or higher
Multiple modes for different devices: Supports SPP, PS2, EPP and ECP 1.9.
Fast data transfer: Up to 1.5 MB/s for printers and automation.
Resource-efficient integration: PCI IRQ sharing and power management simplify operation.
The card adds a full-featured parallel LPT port according to IEEE1284 to desktop PCs. This allows you to continue integrating parallel-connected peripherals such as printers or automation devices. Automatic selection of IRQ and I/O address simplifies setup, while a 256 byte FIFO and data rates up to 1.5 MB/s deliver reliable, smooth data transfer.
In professional IT environments and existing infrastructures, the card enables seamless continued use of proven devices, for example in on-site installations and service deployments in companies and public institutions.
Port: 1x LPT (parallel), IEEE1284
Bus: PCI
Specification: PCI Local Bus 2.3
Modes: SPP, PS2, EPP, ECP 1.9
Data rate: up to 1.5 MB/s
FIFO: 256 bytes
Chipset: MCS9865
Functions: PCI power management, PCI IRQ sharing
Resource allocation: automatic (IRQ and I/O address)
Multi-card operation: multiple cards per PC
Operating systems: DOS 6.22; Windows 2000/XP 32/64-bit/Server 2003 32/64-bit/Vista 32/64-bit/Server 2008 32/64-bit; Linux kernel 2.6.14 or higher
| Features | |
| Chipset | MCS9865 |
| Other features | |
| Ports quantity | 1 |
| Connectivity technology | Wired |
| Supported data transfer rates | 1.5 MBps |
| Compatible operating systems | DOS 6.22, Windows 2000, XP 32/64-bit, Server 2003 32/64-bit, Vista 32/64-bit, Server 2008 32/64-bit Linux kernel 2.6.14+ |
| Mac compatibility | |
| Packaging data | |
| Package width | 170 mm |
| Package depth | 165 mm |
| Package height | 40 mm |
| Package weight | 55 g |
| Package volume | 1100 cm³ |
| Ports & interfaces | |
| Host interface | PCI |
| Parallel ports quantity | 1 |
| Technical data | |
| Net weight | 0.055kg |
| Slot | PCI |
| Packaging volume | 0.0011m³ |
| Height packaging | 0.040m |
| Chipset | Moschip MCS9865 |
| Connections external | 1x parallel 25 pin |
| Type | Interface card |
| Interface | Parallel |
| Width packaging | 0.170m |
| Weight | 0.128kg |
| Length packaging | 0.165m |
| Connections internal | None |
| Low Profile | |
| Weight & dimensions | |
| Depth | 1.28 mm |
| Weight | 55 g |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of Inline 66630I ® interface card, 1x LPT parallel, PCI?
The article Inline 66630I ® interface card, 1x LPT parallel, PCI is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 66630I to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Inline 66630I ® interface card, 1x LPT parallel, PCI always at the best possible price. We can give you a discount of 2% on Inline 66630I ® interface card, 1x LPT parallel, PCI if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
