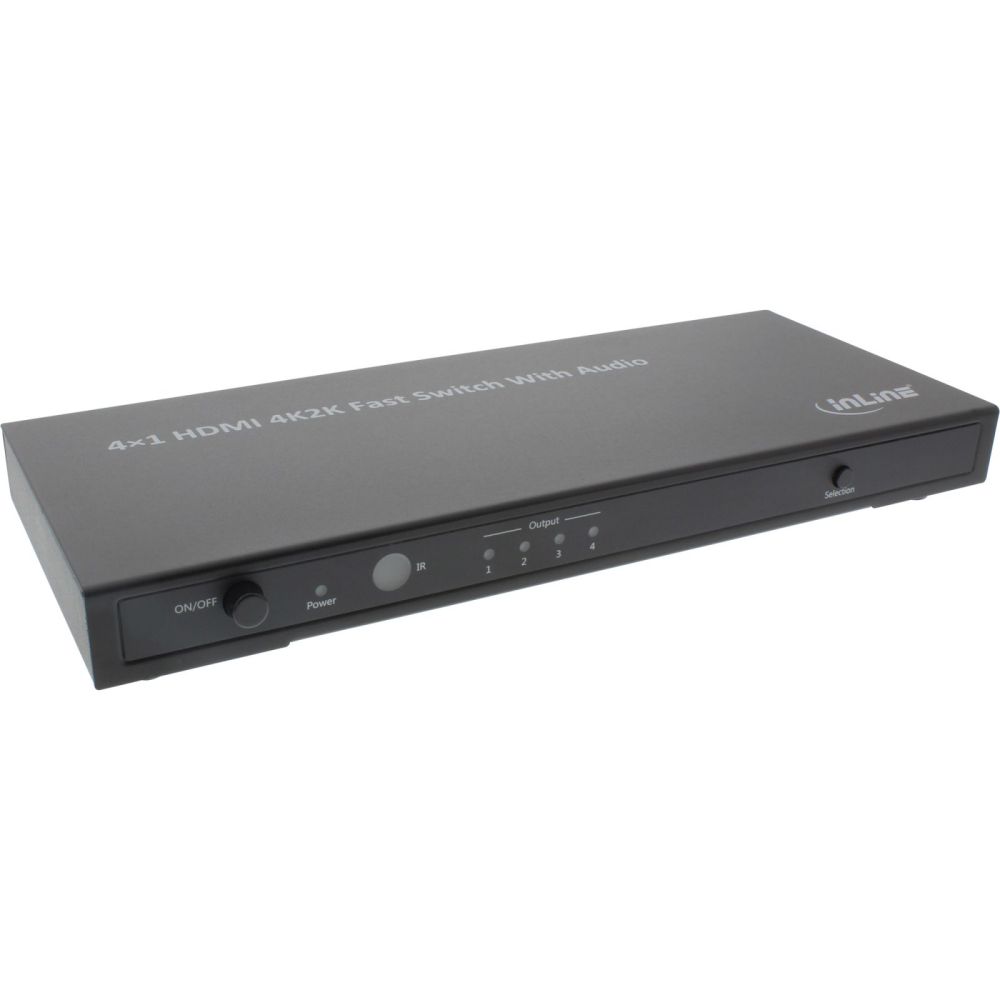

InLine® 4×1 HDMI 4K Switch with Audio
|
49,22 EUR |
|
|
( 58,57 EUR incl. VAT ) ≈ £41.20 | ≈ $55.08 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| End-Of-Life: | 26. Jul 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 747537 |
| Mfg Part No: | 65017 |
| UPC/EAN: | 4043718232017 |
| Weight: | 1.147 kg |
Product information for Inline 65017:
Switch four HDMI sources conveniently and output audio separatelyControl four sources conveniently: Switch via Select button on the device or remote control.
Extract audio simultaneously: Output stereo, Toslink and coaxial (RCA) in parallel.
Clear 4K playback: Resolutions up to 4K2K@30 Hz with 12 bit color depth per channel.
Compatible with 3D and HDCP: Supports 3D formats and protected content.
High signal bandwidth: 340 MHz/3.4 Gb/s per channel, 10.2 Gb/s total.
This 4x1 HDMI switch aggregates up to four sources to one display and, if required, separates the audio signal for simultaneous output via stereo, Toslink and coaxial (RCA). Resolutions up to 4K2K@30 Hz, 12 bit color depth per channel as well as HDCP and 3D content are supported for high-quality video and audio transmission.
In professional IT environments, in on-site installations and in ongoing operation in companies and public institutions, the device enables central signal routing and flexible audio paths, for example for connecting amplifiers or sound reinforcement systems, without changing the video connection.
Switching: 4x1 HDMI
Maximum resolution: 4K2K@30 Hz
Bandwidth: 340 MHz/3.4 Gb/s per channel (10.2 Gb/s total)
Color depth: 12 bit per channel (36 bit total)
Compatibility: HDCP
Audio outputs: stereo, Toslink, coaxial (RCA), simultaneous
Audio formats: LPCM (uncompressed), DTS Digital (compressed)
3D support: all 3D formats incl. 1080p@23.98/24 Hz, 720p@59.94/60/50 Hz
Operation: Select button on the device, remote control
Extract audio simultaneously: Output stereo, Toslink and coaxial (RCA) in parallel.
Clear 4K playback: Resolutions up to 4K2K@30 Hz with 12 bit color depth per channel.
Compatible with 3D and HDCP: Supports 3D formats and protected content.
High signal bandwidth: 340 MHz/3.4 Gb/s per channel, 10.2 Gb/s total.
This 4x1 HDMI switch aggregates up to four sources to one display and, if required, separates the audio signal for simultaneous output via stereo, Toslink and coaxial (RCA). Resolutions up to 4K2K@30 Hz, 12 bit color depth per channel as well as HDCP and 3D content are supported for high-quality video and audio transmission.
In professional IT environments, in on-site installations and in ongoing operation in companies and public institutions, the device enables central signal routing and flexible audio paths, for example for connecting amplifiers or sound reinforcement systems, without changing the video connection.
Switching: 4x1 HDMI
Maximum resolution: 4K2K@30 Hz
Bandwidth: 340 MHz/3.4 Gb/s per channel (10.2 Gb/s total)
Color depth: 12 bit per channel (36 bit total)
Compatibility: HDCP
Audio outputs: stereo, Toslink, coaxial (RCA), simultaneous
Audio formats: LPCM (uncompressed), DTS Digital (compressed)
3D support: all 3D formats incl. 1080p@23.98/24 Hz, 720p@59.94/60/50 Hz
Operation: Select button on the device, remote control
| Features | |
| Product colour | Black |
| Supported video modes | 1080p, 720p |
| Bandwidth | 3.4 Gbit/s |
| HDCP | |
| 3D | |
| Packaging data | |
| Package width | 240 mm |
| Package depth | 355 mm |
| Package height | 56 mm |
| Package weight | 1.15 kg |
| Package volume | 4800 cm³ |
| Ports & interfaces | |
| Video port type | HDMI |
| HDMI ports quantity | 5 |
| HDMI in | 4 |
| Number of HDMI outputs | 1 |
| Audio (L/R) out | 1 |
| Video in | 4 |
| Technical data | |
| Weight | 1.147kg |
| Article type | Switch |
| Interface | HDMI |
| Length packaging | 0.355m |
| Height packaging | 0.056m |
| Width packaging | 0.240m |
| Number of inputs | 4 |
| Net weight | 0.881kg |
| Packaging volume | 0.0048m³ |
| Weight & dimensions | |
| Weight | 881 g |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of InLine® 4×1 HDMI 4K Switch with Audio?
The article InLine® 4×1 HDMI 4K Switch with Audio is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 65017 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® 4×1 HDMI 4K Switch with Audio always at the best possible price. We can give you a discount of 2% on InLine® 4×1 HDMI 4K Switch with Audio if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
