InLine® HDMI matrix switch, 4K2K, 4 inputs to 2 outputs content_copy

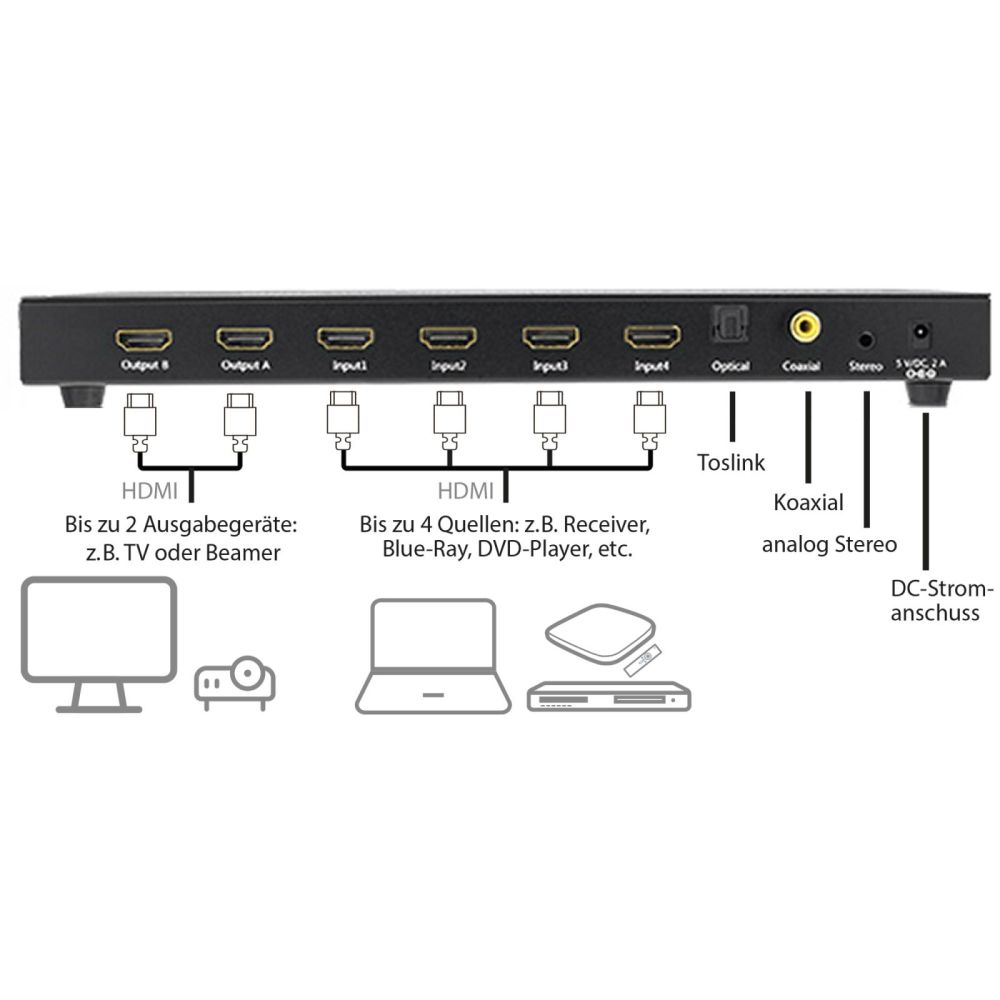

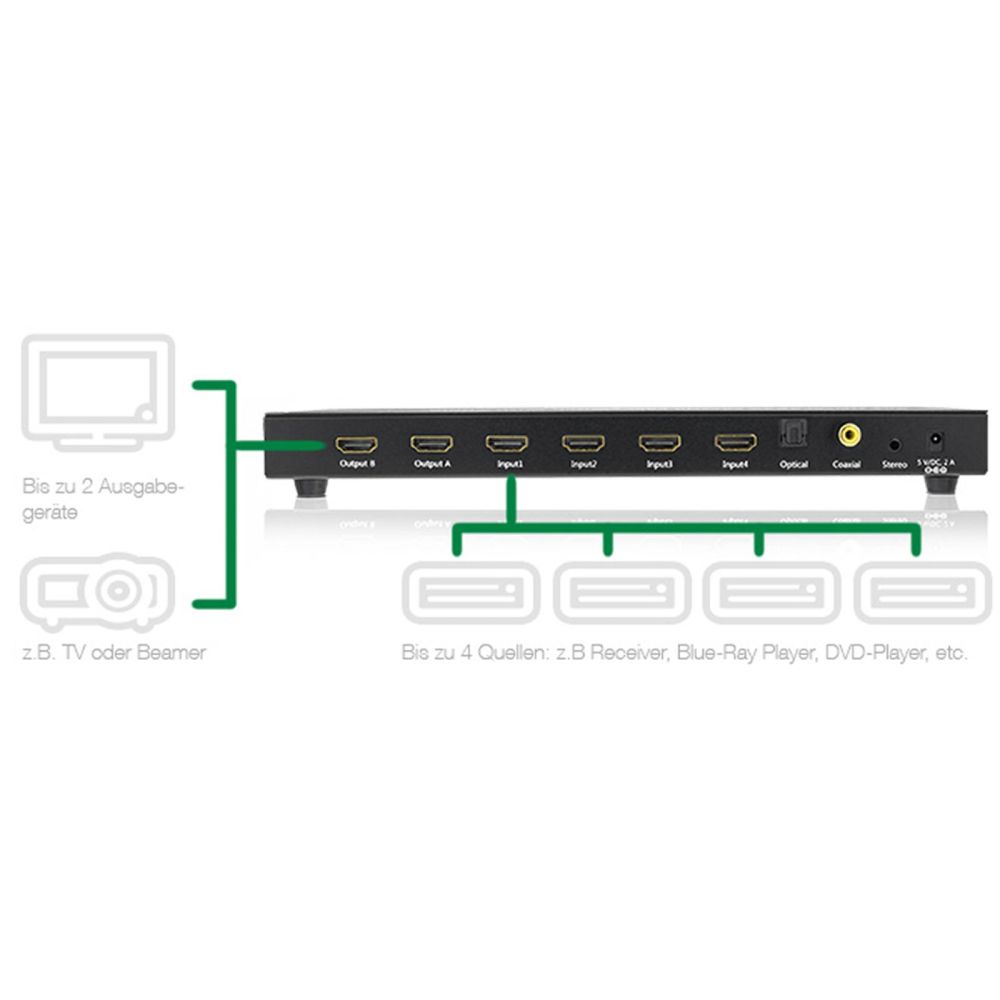

Use two displays flexibly and switch four HDMI devices conveniently by remote controlIndependent source selection: The HDMI matrix switch connects four HDMI devices to two displays. Choose which source to view separately for outputs A and B.
4K video transmission: Enjoy up to 3840 x 2160 at 30 Hz. The HDMI matrix switch outputs high-resolution video to compatible TVs and projectors.

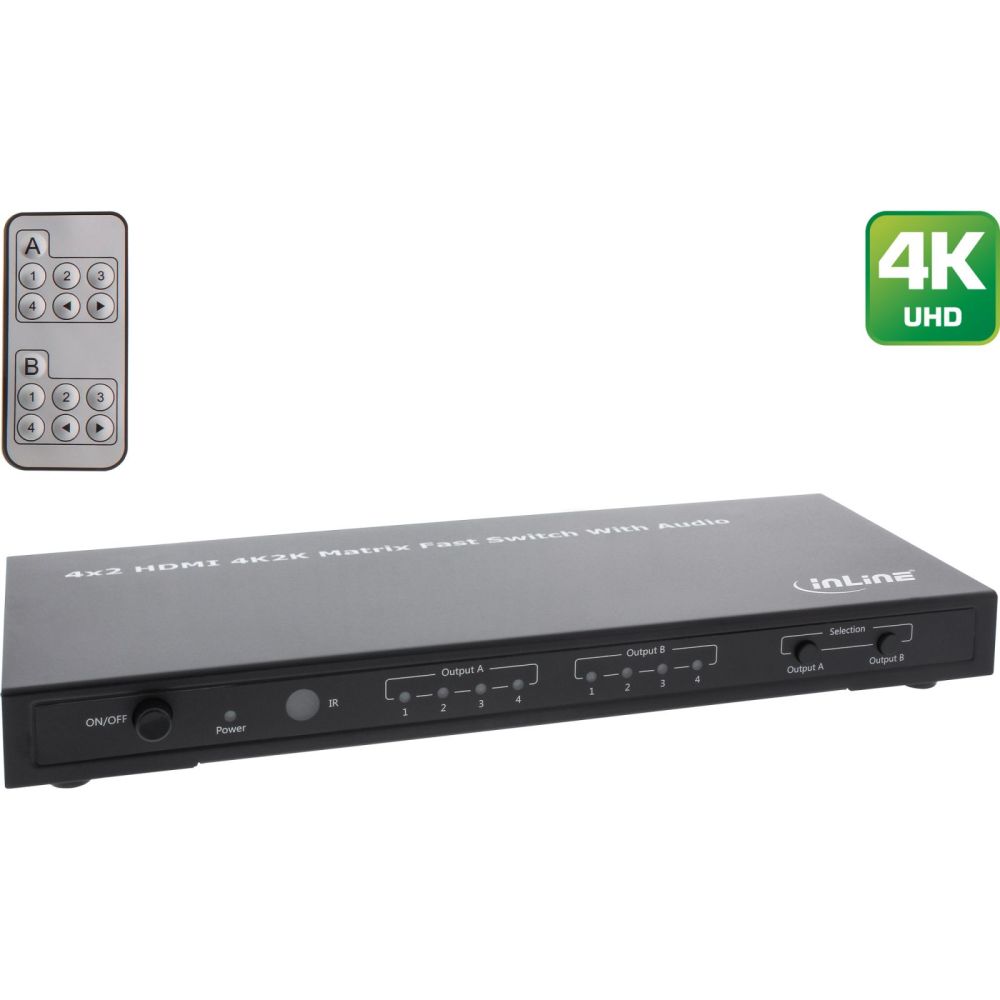

Convenient operation: Change the HDMI source with the included IR remote or device buttons. Cabling stays in place when using another device.

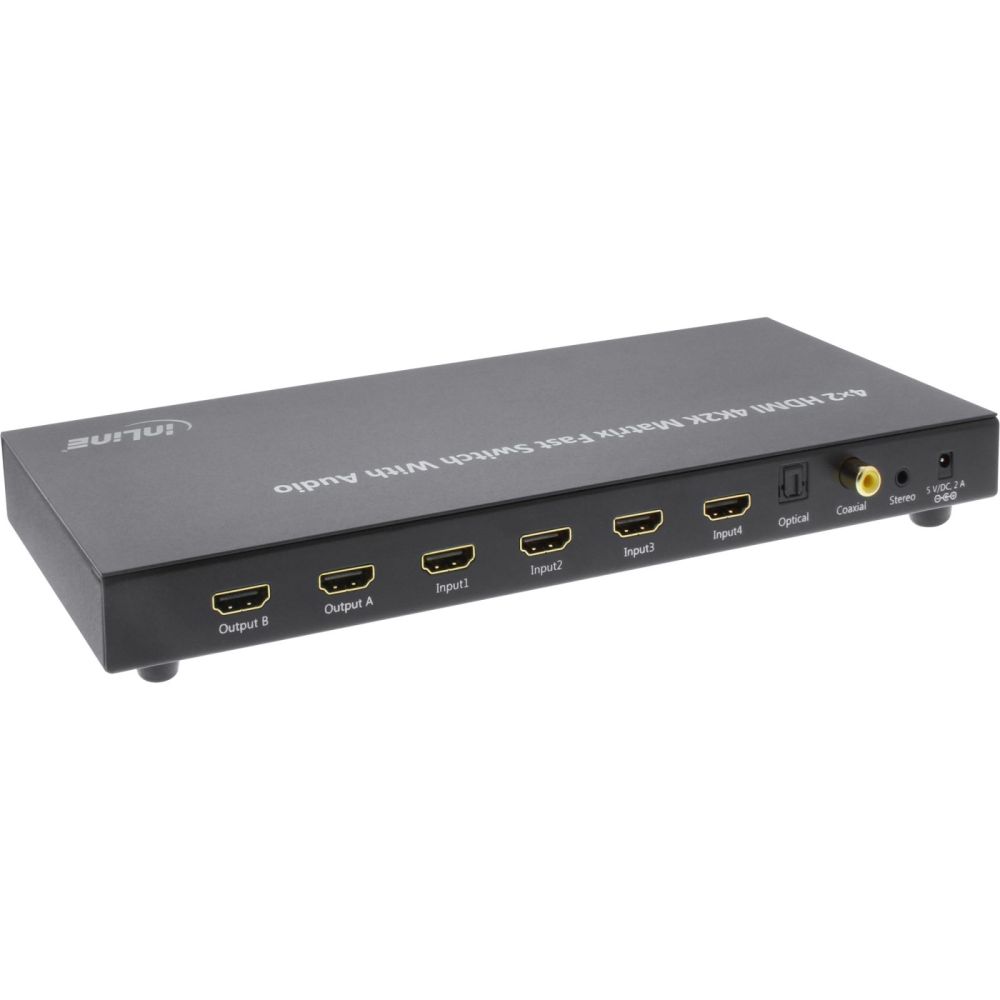

Separate audio output: The HDMI matrix switch offers optical Toslink, coaxial and analogue stereo ports. These output audio exclusively from HDMI output A.
Versatile video routing: Use the same source at both HDMI outputs or select two different inputs. The 4x2 matrix offers flexibility for TVs, projectors and displays.
The InLine HDMI matrix switch helps organise entertainment equipment. Set up connections once and use the required configuration daily instead of reconnecting players each time.
The matrix is especially practical with a TV and projector in one installation. For example, watch a film on the projection screen while another display shows a separate video signal. Central routing also suits changing presentations and multiple media devices.
Use the additional audio ports to connect an existing stereo or suitable audio system. Their fixed assignment to the first HDMI output should be considered when planning the wiring.
Place the unit on a suitable surface in your media installation. Central connections keep devices permanently linked, allowing quick source changes during operation.
The HDMI matrix suits installations requiring organised cabling and individually selectable video output.
HDMI connector type: Type A, 19-pin
HDMI input signal: 5 V p-p (TTL)
Video bandwidth: 3.4 Gb/s / 340 MHz per channel
Maximum total bandwidth: 10.2 Gb/s
Vertical frequency range: 50/60 Hz
Supported interlaced resolutions: 480i, 576i, 1080i
Supported progressive resolutions at 50/60 Hz: 480p, 576p, 720p, 1080p
Colour depth: 12 Bit per channel, 36 Bit total
HDCP support: Yes
Supported audio formats: LPCM, DTS Digital
Power supply: 5 V DC / 2 A
Maximum power consumption: 8 W
Operating temperature: 0-70 °C
Operating humidity: 10-85 % relative humidity, non-condensing
Storage temperature: -10 to +80 °C
Storage humidity: 5-90 % relative humidity, non-condensing
Dimensions: 270 x 122 x 32 mm
Weight: 774 g
Content of delivery: HDMI matrix switch, mains adapter, IR remote control, instruction manual

Features
Product colour	Black
Supported video modes	1080p
Bandwidth	3.4 Gbit/s
Cable length	10 m
Colour depth	12 bit
HDCP
3D
Packaging data
Package width	242 mm
Package depth	355 mm
Package height	58 mm
Package weight	1.16 kg
Package volume	5000 cm³
Ports & interfaces
Video port type	HDMI
HDMI in	4
Number of HDMI outputs	2
Video in	4
Video out	2
Power
Power consumption (typical)	2.5 W
Technical data
Height packaging	0.058m
Article width	27.00cm
Inputs x outputs	4x2
Width packaging	0.242m
Weight	1.158kg
Interface	HDMI
Net weight	0.889kg
Article height	3.50cm
Packaging volume	0.0050m³
Article length	12.00cm
Length packaging	0.355m
Weight & dimensions
Width	270 mm
Depth	120 mm
Height	35 mm
Weight	889 g
Dimensions (WxDxH)	270 x 120 x 35 mm

---
