InLine® HDMI Audio Extractor, input 4K2K HDMI content_copy

4K video unchanged, flexible audio output4K video without downscaling: Simultaneous HDMI output up to 4K2K@60 Hz while audio is output separately.
Flexible audio output: Extracts HDMI audio as optical S/PDIF or analog multichannel audio (up to 7.1, up to 4 x 3.5 mm).
Audio usable without a TV: Analog and optical outputs work without an active HDMI display.
Compatible integration: Audio EDID switch (LPCM 7.1CH/TV-EDID/Bitstream) and CEC facilitate integration.
High audio resolution: HDMI and S/PDIF sampling rates up to 192 kHz.
The HDMI audio extractor separates the audio signal of an HDMI input and converts it into optical S/PDIF or analog multichannel output. At the same time the HDMI video output up to 4K2K@60 Hz is maintained, allowing you to position or upgrade video and audio flexibly, for example with active speakers or AV receivers. For 4K playback, a suitable source, display, and HDMI cables are required.
It proves itself in professional IT environments, on-site installations, and service deployments when displays do not provide audio or when audio paths need to be extended. The device integrates into existing infrastructures of companies and public institutions and supports a clear separation of video and audio paths.

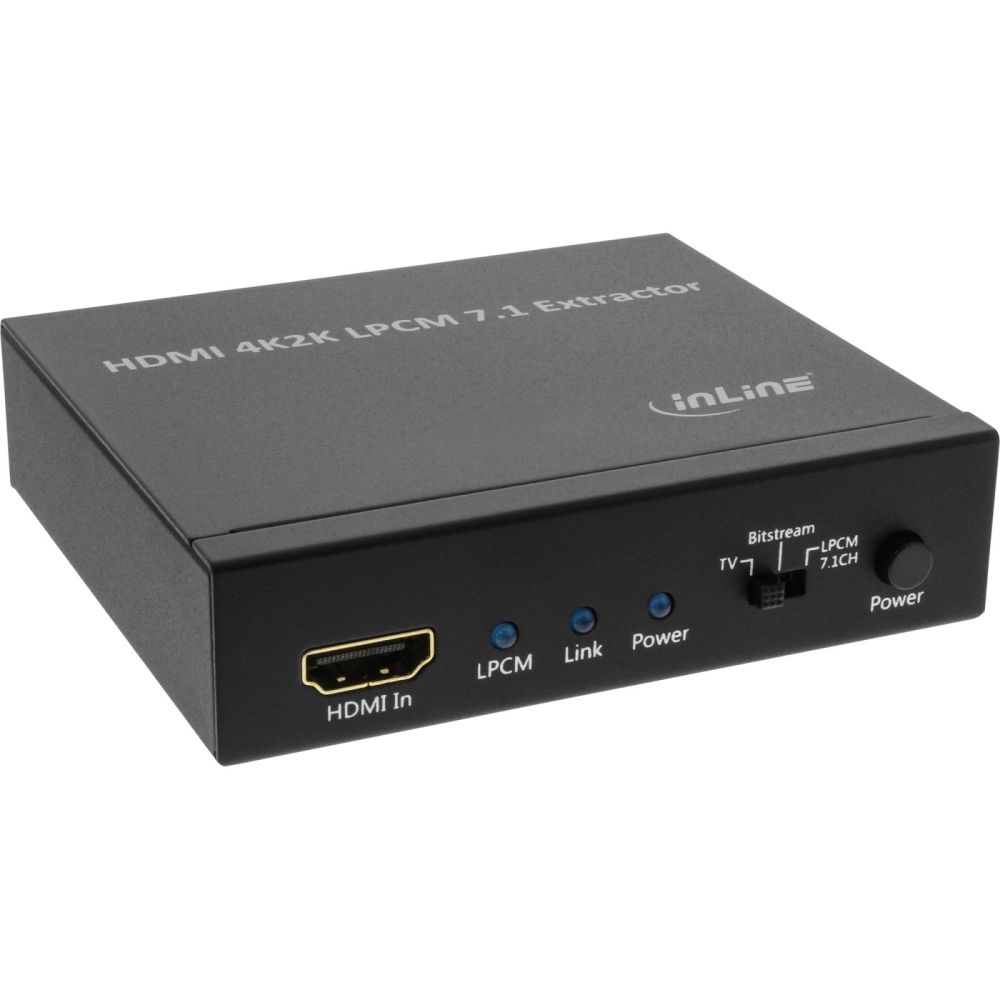

Input: HDMI Type A socket

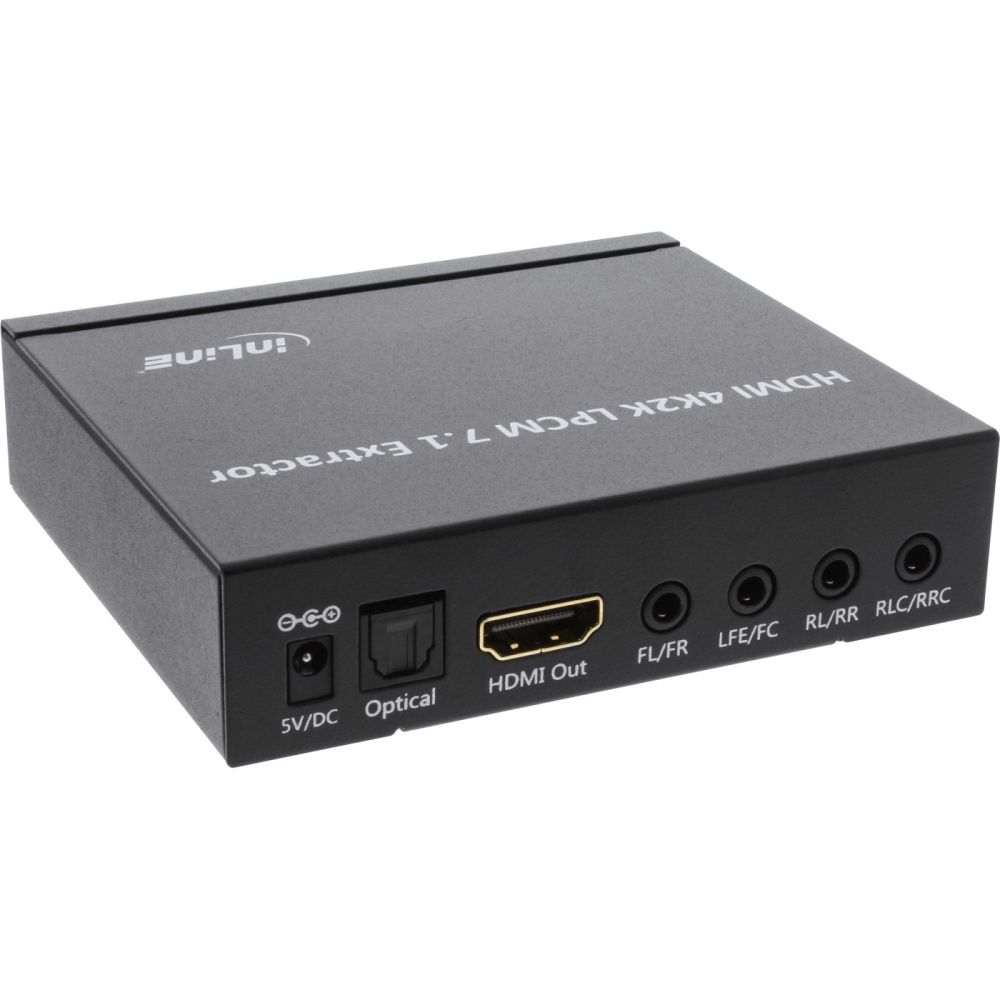

Outputs: HDMI socket, Toslink (optical), 7.1 jack sockets (up to 4 x 3.5 mm)
Video resolution: up to 4K2K@60 Hz
Compatibility: HDCP 1.2, DVI 1.0, 3D, CEC
Audio sampling rate (HDMI): up to 192 kHz
Audio sampling rate (S/PDIF): up to 192 kHz
Audio EDID: LPCM 7.1CH / TV-EDID (external) / Bitstream
Maximum HDMI cable length: 15 m (1080p 8-bit), 10 m (1080p 12-bit)

Features
Product colour	Black
Other features
Dimensions (WxDxH)	80 x 92 x 20 mm
Packaging data
Package width	180 mm
Package depth	230 mm
Package height	58 mm
Package weight	415 g
Package volume	2500 cm³
Technical data
Weight	0.415kg
Article length	9.20cm
Compatibility HDMI	HDMI 1.4, HDCP 1.2
Side A	HDMI A female
Compatibility DVI	DVI 1.0
Width packaging	0.180m
Signal	Audio/Video
Compatibility DisplayPort	HDMI 1.4, HDCP 1.2, DVI 1.0
Net weight	0.269kg
Side B	HDMI female, Toslink audio female (optical), 7.1 jack
Height packaging	0.058m
Article width	8.00cm
Length packaging	0.230m
Sampling rate	48kHz
Packaging volume	0.0025m³
Article height	2.00cm
Audio
Weight & dimensions
Weight	269 g
Width	80 mm
Depth	92 mm
Height	20 mm

---
