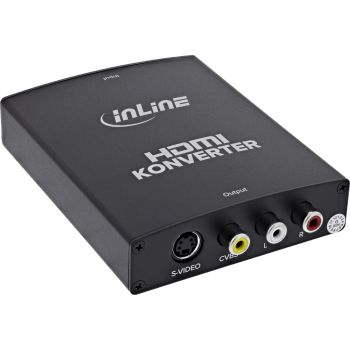

InLine® HDMI to Composite/S-Video Converter with Audio, PAL/NTSC
|
41,97 EUR |
|
|
( 49,94 EUR incl. VAT ) ≈ £35.13 | ≈ $46.96 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22195552 |
| Mfg Part No: | 65006 |
| UPC/EAN: | 4043718207527 |
| Weight: | 0.458 kg |
Product information for Inline 65006:
Flexible video output with PAL and NTSC switching: The output signal can be set to either PAL or NTSC and is suitable for different video systems.
Supports HDMI resolutions up to 1080p: Compatible with 480p, 576p, 720p, 1080i and 1080p at 50 Hz and 60 Hz.
Stable signal transmission with defined output impedance: 75-ohm video output ensures standard-compliant integration into existing cabling.
Compact design for flexible installation: Robust housing measuring 110 x 88 x 25 mm; powered by 5 V DC; HDCP-protected content is not supported.
The HDMI to RCA converter enables modern HDMI devices to be connected to analogue video and audio inputs. Digital HDMI signals are converted to composite video, S-video and stereo audio.
The switchable PAL and NTSC output facilitates use with different video systems. HDMI resolutions up to 1080p at 50 Hz and 60 Hz are supported.
HDMI 1.3 compatible
HDMI input resolution: 480p (60 Hz), 576p (50 Hz), 720p, 1080i, 1080p (50 Hz / 60 Hz)
Video output: PAL/NTSC selectable
Video output impedance: 75 ohms
Composite video output: 1.0 Vpp
S-video output: Y 1.0 Vpp, C 0.3 Vpp
Power supply: DC 5V
Dimensions: 110 x 25 mm (L x W x H)
| Features | |
| Supported video modes | 1080i, 1080p, 480p, 576p, 720p |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | -25 - 75 °C |
| Operating relative humidity (H-H) | 10 - 60% |
| Other features | |
| Dimensions (WxDxH) | 82 x 118 x 27 mm |
| Packaging data | |
| Package width | 178 mm |
| Package depth | 240 mm |
| Package height | 57 mm |
| Package weight | 458 g |
| Package volume | 2400 cm³ |
| Technical data | |
| Impedance output | 75ohm |
| Width packaging | 0.178m |
| Side A | HDMI A female |
| Input | HDMI A female |
| Weight | 0.458kg |
| Side B | Composite / S-Video |
| Net weight | 0.372kg |
| Output | Composite video (1,0 Vpp), S-Video (Y: 1,0 Vpp, C: 0,3 Vpp) |
| Height packaging | 0.057m |
| Compatibility HDMI | HDMI 1.3 |
| Humidity | 10% - 60%, non-condensing |
| Operation temperature | -25 to +75°C |
| Packaging volume | 0.0024m³ |
| Article width | 8.2cm |
| Power supply | DC 5V |
| Article height | 2.7cm |
| Length packaging | 0.240m |
| Article length | 11.8cm |
| Weight & dimensions | |
| Weight | 372 g |
| Width | 82 mm |
| Depth | 118 mm |
| Height | 27 mm |
