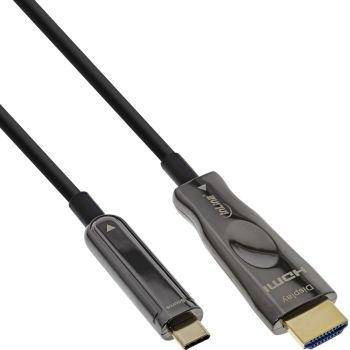

InLine® USB-C to HDMI AOC cable, 4K 60 Hz, DP Alt Mode, 25 m content_copy

USB-C to HDMI for high-resolution 4K transmission over long distancesBridging large distances with 4K: The active optical USB C to HDMI cable transmits video signals with resolutions up to UHD 3840 x 2160 at 60 Hz to an HDMI display.
Use optical signal transmission: The AOC hybrid cable converts electrical data signals into optical signals. Four multimode fiber optic conductors transmit high-speed data, supplemented by seven copper conductors.
Connecting USB-C with DP Alt Mode: The input supports DisplayPort Alternate Mode with DP1.2. This allows you to connect a compatible USB-C video source directly to an HDMI A display output.
Use image functions flexibly: The USB-C to HDMI cable supports HDR10, 3D, and CEC, as well as a self-detection function for EDID information. The maximum resolution is UHD 3840 x 2160 at 60 Hz.
Easy and robust installation: Plug and play technology enables operation without additional drivers. Gold-plated contacts and metal connectors with zinc alloy housings complement the durable cable design.
The active optical USB-C to HDMI cable enables video transmission over long distances. It connects a compatible video source with a USB-C port to an HDMI display. The USB-C port of the video source must support DisplayPort Alternate Mode.
The AOC hybrid cable combines multimode fiber optic cable and copper conductors. Electrical data signals are converted into optical signals for transmission. This makes the cable suitable for installations where the video source and display are located far apart.
The signal direction is fixed. The USB-C connector serves as the input to the video source. The HDMI-A connector is connected to the display. EDID self-identification facilitates communication with the connected display.
Plug and play functionality allows for easy setup without additional drivers. The black PVC jacket and metal connectors with zinc alloy housings complement the cable's robust design.
Cable type: Active optical hybrid cable (AOC), USB-C to HDMI A
Connections: USB-C plug (input) to HDMI A plug (output)
USB: USB 3.2 Gen.2, 10 Gb/s
DisplayPort: DisplayPort Alternate Mode, DP1.2
HDMI: HDMI 2.0b
Resolution: Up to UHD 3840 x 2160 at 60 Hz
Supported features: HDR10, 3D, CEC, EDID self-detection
Construction: 4 multimode fiber optic strands for high-speed data, 7 copper strands for power and low-speed data
Connector: Gold-plated contacts, zinc alloy metal housing
Cable: Round cable, black PVC sheath, outer diameter 5.2 mm
Installation: Plug and Play, no drivers required
Temperature range: Operating 0-+50 °C, Storage -20-+70 °C

Features
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Cable length	25 m
Connector 1	USB Type-C
Connector 2	HDMI
Connector 1 gender	Male
Connector 2 gender	Male
HDMI version	2.0b
DisplayPort version	1.2
Maximum resolution	4096 x 2160 pixels
Supported graphics resolutions	4096 x 2160
Refresh rate at maximum resolution	60 Hz
Product colour	Black
Jacket material	Polyvinyl chloride (PVC)
Connector material	Gold
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10)
USB Type-C DisplayPort Alternate Mode
3D
Plug and Play
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Other features
Dimensions (WxDxH)	20 x 25000 x 10 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	210 mm
Package depth	213 mm
Package height	80 mm
Package weight	862 g
Package volume	3600 cm³
Package type	Box
Technical data
Complies with HDMI standard	HDMI 2.0b
Article width	2.00cm
Data transmission rate	10Gb/s
Packaging volume	0.0036m³
Article height	1.00cm
Variant	AOC cable
Side A	USB-C male
Signal	Video
Maximum display resolution	4096x2160 @30Hz
Device type	Graphic adapter
Article length	2500.00cm
Colour	Black
Net weight	0.683kg
Side B	HDMI A plug
Weight	0.862kg
Length packaging	0.213m
Maximum HDTV resolution	3840x2160 @60Hz
Width packaging	0.210m
Length	25m
Type	USB 3.2
Operation temperature	0 - 50°C
Height packaging	0.080m
Storage temperature	-20 - 60°C
UL
Weight & dimensions
Cable diameter	5.2 mm
Weight	683 g
Width	20 mm
Depth	25000 mm
Height	10 mm

---
