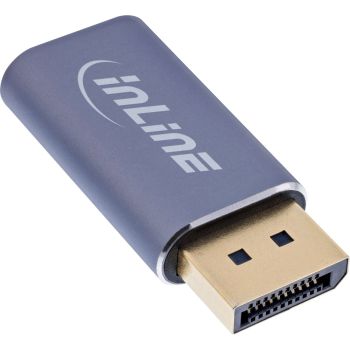

InLine® USB display converter, DisplayPort to USB-C bidirectional, 8K content_copy

Bidirectional use: Connects USB-C devices to DisplayPort monitors or DisplayPort outputs to USB-C displays for flexible use.
Highest resolution: Supports 8K@60Hz and backward-compatible modes up to 4K@240Hz for razor-sharp images in every application.
Brilliant image quality: HDR10, HDR400, HDR10+, and Dolby Vision deliver vivid colors and contrasts for multimedia and gaming.
Gaming optimized: Adaptive Sync, FreeSync, and G-Sync enable smooth gameplay without tearing and with high frame rates.
Compatible & simple: Supports Thunderbolt 3/4, USB4, DP Alt Mode, plug-and-play without drivers for notebooks, PCs, smartphones, VR glasses.
The InLine USB Display Converter is the ideal solution for flexibly connecting modern end devices. Thanks to its bidirectional function, it supports both the connection of USB-C devices (Thunderbolt 3/4, USB4, DP Alt Mode) to a monitor with DisplayPort input and, conversely, the connection of a DisplayPort output to a USB-C display.
With support for DisplayPort 1.2 and 1.4, the converter achieves resolutions up to 8K@60Hz and is backward compatible with 4K@240Hz, 4K@165Hz, 4K@144Hz, 4K@60Hz, 2K@240Hz, and 2K@144Hz. HDR10, HDR400, HDR10+, and Dolby Vision ensure brilliant display with vibrant colors and rich contrast.
The converter is particularly suitable for gaming and multimedia. Technologies such as Adaptive Sync, FreeSync, and G-Sync enable smooth image reproduction at high frame rates. With a bandwidth of up to 32.4 Gb/s (DP 1.4 HBR3), stable signal transmission is guaranteed.
Its high compatibility makes the converter versatile – whether for notebooks, PCs, smartphones, monitors, or VR glasses. Thanks to plug-and-play, no driver installation is required, making it quick and easy to use.
Supported DisplayPort versions: 1.2 / 1.4
USB-C compatibility: Thunderbolt 3/4, USB4, DP Alt Mode
Supported resolutions and refresh rates up to 8K@60Hz, backward compatible with 4K@240Hz, 4K@165Hz, 4K@144Hz, 4K@ 60Hz, 2K@240Hz, and 2K@144Hz
Color support: HDR10, HDR400, HDR10+, Dolby Vision
Data rate / bandwidth up to 32.4 Gb/s with DP 1.4 HBR3
Supports HDCP, Adaptive Sync / G-Sync / FreeSync
Compatible devices: MacBook, Windows PC, smartphones, monitors, VR glasses, etc.
Operating temperature: 0 to 40 °C
Storage temperature: -20 to 60 °C
Note: Please use a USB-C cable that complies with USB 3.2 specifications or better. The maximum cable length is 3 m. For resolutions of 8K@60Hz / 4K@120Hz and higher, the recommended length is a maximum of 2 m. The cable must comply with USB4/Thunderbolt 4 specifications or higher.

Certificates
Compliance certificates	TÜV mark
Features
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Power source	USB
Thunderbolt version	4
Connector 1	USB Type-C
Connector 2	DisplayPort
Connector 1 gender	Female
Connector 2 gender	Male
DisplayPort version	1.4
Maximum resolution	7680 x 4320 pixels
Data transfer rate	32.4 Gbit/s
Maximum refresh rate	240 Hz
Refresh rate at maximum resolution	60 Hz
Product colour	Grey
Country of origin	Taiwan
High Dynamic Range (HDR) technology	DisplayHDR 400, High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus)
Dolby technologies	Dolby Vision
Thunderbolt technology
USB Type-C DisplayPort Alternate Mode
High Dynamic Range (HDR) supported
Plug and Play
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Other features
Dimensions (WxDxH)	21 x 47 x 10 mm
Packaging data
Package width	50 mm
Package depth	95 mm
Package height	20 mm
Package weight	19 g
Package volume	100 cm³
Technical data
Connection	USB-C
Height packaging	0.020m
Weight	0.019kg
Article length	4.70cm
Net weight	0.010kg
Device type	Graphic adapter
Video output	DisplayPort plug or USB-C socket
Packaging volume	0.0001m³
Video input	USB-C socket or DisplayPort plug
Colour	Grey
Article height	1.00cm
Length packaging	0.095m
Article width	2.10cm
Width packaging	0.050m
Type	USB-C to DisplayPort, display converter
Ports
Power supply
Ethernet
Weight & dimensions
Weight	10 g
Width	21 mm
Depth	47 mm
Height	10 mm

---
