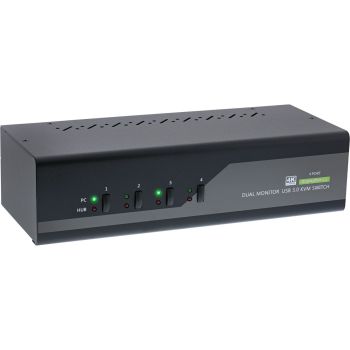

InLine® KVM Desktop Switch, 4-port, Dual-Monitor DP 1.2, 4K, USB 3.0, Audio content_copy

The InLine KVM Desktop Switch was specially developed for the use of two monitors (2x DisplayPort) on four multimedia computers. With the InLine KVM Desktop Switch you can completely control four PCs with only one USB keyboard, mouse and two monitors. This dual monitor DP KVM switch supports resolutions up to 3840x2160 (4K) at 60Hz, for maximum comfort in adapting to your display needs.
With TTU emulation technology integrated into a new ASIC chip, the dual monitor DP KVM switch is able to offer complete versatility in meeting the functional requirements of all types of modern keyboards and mice. It features a 2 channel stereo sound for full sound functions. Its advanced audio & microphone switching function also gives you an uninterrupted multimedia experience during KVM operation (e.g. you can listen to music from one PC while operating another). Multi-platform support for PC and Mac is also available.4-way KVM switch
Four computers on one console (consisting of 2x DisplayPort Monitor, 1x USB mouse and 1x USB keyboard)
Two additional USB 3.0 (USB 3.2 Gen 1) Type A ports for peripheral devices
audio support for microphone and speakers
Maximum video resolution: 3840x2160 (60Hz) per monitor
Content of delivery:1x InLine KVM Desktop Switch, Dual Monitor, DisplayPort 1.2
4x KVM cable set
1x Plug power supply DC 12V
1x Operating Instructions
Please note:
The InLine KVM Switches are designed for office and home office applications as well as for monitoring and controlling multiple computers from one workstation. However, the KVM Switches are not suitable for gaming accessories such as mice and keyboards with programmable special keys, nor are gaming monitors with high frequencies of 120 Hz or more supported. The hot key function for the keyboard only works on the designated console USB port, connected via the USB hub ports, hot key control is not possible.

Design
Product colour	Black, Grey
LED indicators
Display
Built-in display
Other features
Dimensions (WxDxH)	100 x 255 x 65 mm
Packaging content
Cables included	KVM
Manual
AC adapter included
Packaging data
Package width	250 mm
Package depth	330 mm
Package height	180 mm
Package volume	14900 cm³
Package weight	3.03 kg
Package type	Box
Performance
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Video bandwidth	60 Hz
Audio channels	2.0
Number of displays supported	2
Ports & interfaces
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
DisplayPorts quantity	8
DisplayPort version	1.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	4
Console ports	3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Console USB ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	2
USB connector type	USB Type-A, USB Type-B
Headphone outputs	4
Number of microphone inputs	4
USB hub
Audio connections
DC-in jack
Power
Power source	DC
Input voltage	12 V
System requirements
Windows operating systems supported
Mac operating systems supported
Technical data
Max. resolution	3840x2160 / 60Hz
Number of CPU	4
Design	Desktop
Type 1	KVM switch
Packaging volume	0.0149m³
Video inputs per CPU	DisplayPort x2
Article width	10.00cm
Length packaging	0.330m
Net weight	2.150kg
Data rate	5Gb/s
Article height	6.50cm
Type 2	4-fold DisplayPort KVM
Width packaging	0.250m
Weight	3.030kg
USB specification	USB 3.2 Gen.1
Article length	25.50cm
Height packaging	0.180m
DisplayPort standard	1.2
Incl. KVM cableset
Front panel buttons
USB peripherals
Weight & dimensions
Width	100 mm
Depth	255 mm
Height	65 mm
Weight	2.15 kg

---
